DORMAN TI86080 Part Description
Manufacturer
Product Description

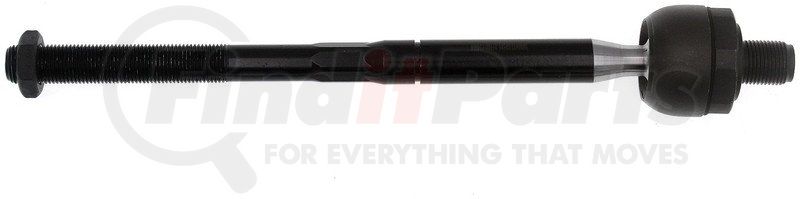

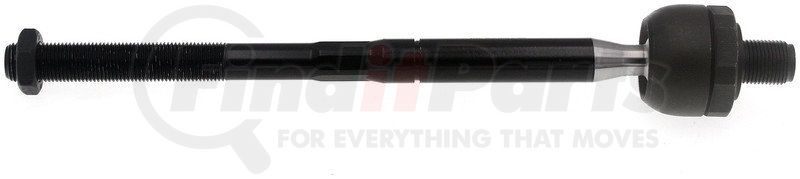

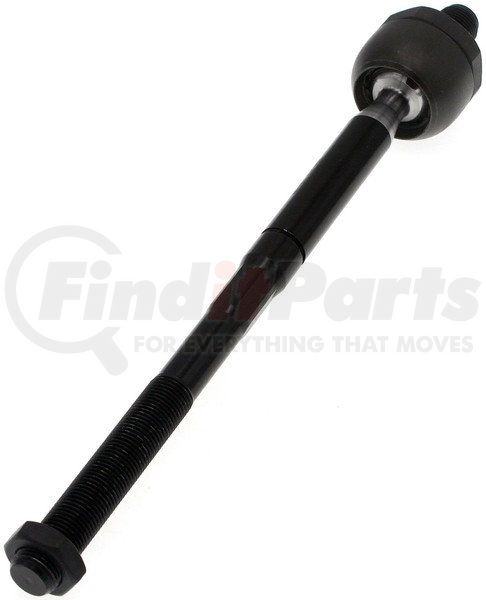

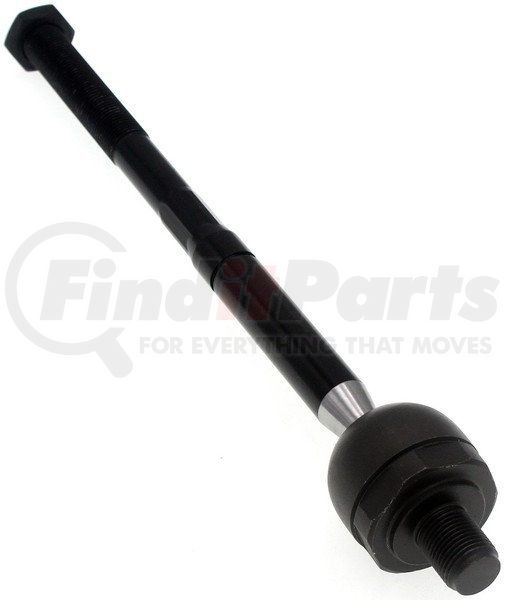

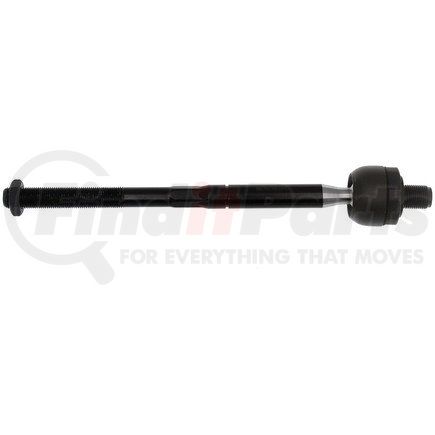

Steering Tie Rod End
Application Summary
Ford 2022-11, Lincoln 2021-11
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
STEERING COMPONENTS
DORMAN TI86080 Specifications
Product Attributes
| Length | 312.5 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Finish | Revestidos |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 44.5 MM |
| Type | Recto |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 18 MM |
| Height | 312.5 MM |
| Housing Material | Acero |
| Tube Diameter | 18 MM |
| Adjustable | Yes |
| Cone Outside Diameter | 11.25 MM |
| Bearing Material | Polymer |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Grade | Regular |
| Stud Type | Male Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16 MM |
| Bolts Included | No |
| Center Mount Hole Quantity | 0 |
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Threaded |
| End 2 Type | Male Threaded |
| Head Drive Type | Smooth |
| Material | Steel |
| Outside Diameter | 18 mm |
| Package Contents | 1 Tie Rod |
| Thread Pitch | M1.5; M1.5 |
| Weight | 1.98 lb |
| Head Drive Type | Smooth |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador |
| Contenidos del paquete | 1 terminal de la direccion |
| Outside Diameter | 18mm MM |
| Thread Pitch | M1.5 mm |
| Grade Type | Reemplazo estandar |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador IN |
| Center Mount Stud Quantity | 1 IN |
| Diámetro la rosca de extremo 1 | 16mm MM |
| Diámetro la rosca de extremo 2 | 18mm MM |
| End 1 Thread Diameter | 16 mm MM |
| End 1 Thread Pitch | M1.5 mm |
| End 2 Thread Diameter | 18 mm MM |
| End 2 Thread Pitch | M1.5 MM |
| Espacio de la rosca del extremo 1 | M1.5 MM |
| Espacio de la rosca del extremo 2 | M1.5 MM |
| Paso de rosca | M1.5 MM |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00889245971753 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TI86080 Cross References
| Brand | Part Number |
|---|---|
| DELPHI | TA6408 |
| Ford | FL3Z3280A, FR3Z3280A, FR3Z3280B, FR3Z3280C, GL3Z3280A, GR3Z3280B, GR3Z3280C, GR3Z3280D, HL3Z3280A, MEF315, MEF386, MEF387, MEF388, GR3Z3280F |
| MEVOTECH | MS40759 |
| MOOG Chassis Products | EV801343, EV801349, EV801377, EV801701 |
| Mevotech Original Grade | GS40763, GS40759, GS40708 |
| Mevotech Supreme | MS40759, MS40763, MS50770, MS40708, MS40773 |
| Suspensia | X15TR0456 |
DORMAN TI86080 Fits Vehicles
- Lincoln Mark LT (2011-2014)
- Lincoln Navigator (2015-2021)
- Ford F-150 (2011-2020)
- Ford Lobo (2011-2020)
- Ford Mustang (2015-2023)
- Ford Expedition (2015-2021)
