(888) 312-8812 Login SignupCENTRIC 106.04230 PosiQuiet Extended Wear
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 106.04230 Part Description
Manufacturer
Features & Benefits
- For superior friction retention and shear strength (where applicable)
- Mechanical Retention System (MRS)
- Multi-Layered Shims
- For optimal noise control over a wide temperature range
- Extended-Wear Friction Sensors
- For severe duty brake applications
- Advanced Semi-Metallic Formulations
- Advanced semi-metallic formulations for optimal stopping power and durability
- Positive Molded Technology
- Positive molded technology for consistent performance
- 301 Stainless Steel Hardware
- Stainless steel hardware provided where applicable
CENTRIC 106.04230 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 1.7 |
| Weight [cntrc] Lbs | 3.75 |
| Hardware Kit Number [cntrc] | 117.90002 |
| Product Grade [cntrc] | Ultra-Premium |
| Notes01 [cntrc] | Wrap Around Shim |
| Pad Wear Sensor Included | No |
| Friction Material Composition | Semi-Metallic |
| Mounting Hardware Included | Yes |
| Pad Shims Included | Yes |
| Friction Material Attachment | Integrally Molded |
| Pad Quantity | 4 |
| Prepared For Pad Wear Sensor | No |

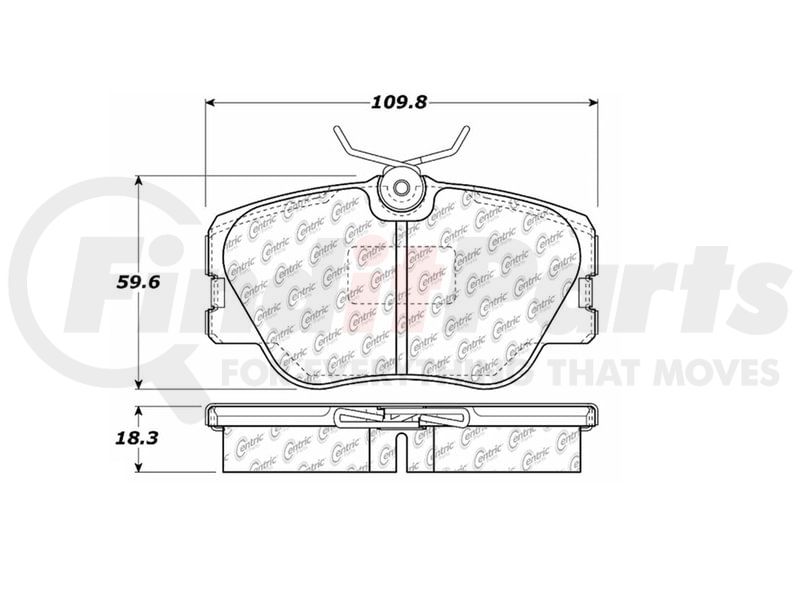

| Outer Pad Height | 59.600 MM |
| Outer Pad Height | 2.346 IN |
| Inner Pad Height | 59.600 MM |
| Inner Pad Height | 2.346 in |
| Outer Pad Width | 109.800 MM |
| Outer Pad Width | 4.323 IN |
| Inner Pad Width | 109.800 MM |
| Inner Pad Width | 4.323 in |
| Inner Pad Overall Thickness | 0.720 IN |
| Inner Pad Overall Thickness | 18.300 MM |
| Outer Pad Overall Thickness | 0.720 in |
| Outer Pad Overall Thickness | 18.300 MM |
