ADVICS C6F092U Part Description
Manufacturer
Product Description

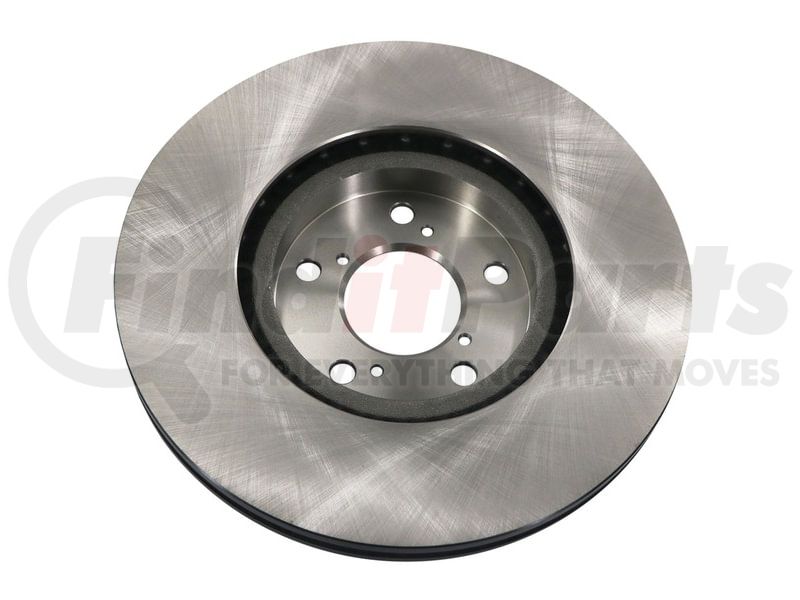

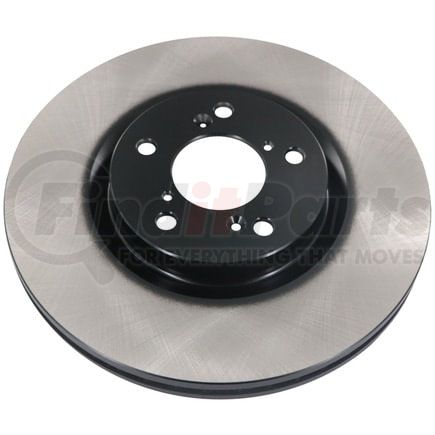

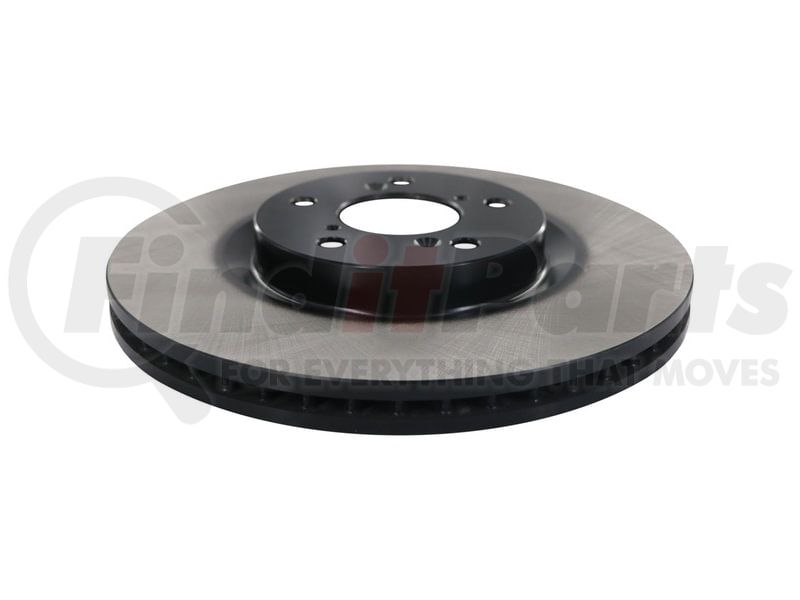

ADVICS OE Replacement Disc Brake Rotor
Features & Benefits
- Constructed to OEM weight, vane count and air gap using high carbon metallurgy to maintain thermal stability reducing opportunities for warping while providing longer pad and rotor life. Corrosion protection coating applied to match OEMs.
ADVICS C6F092U Specifications
Product Attributes
| Material | High Carbon |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 1.102 IN |
| Brake Surface Finish | Non-Directional |
| Overall Height | 1.862 IN |
| Outside Diameter | 12.984 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 70.2 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| 9448 | 5 EA |
| Discard Thickness | 26.0 MM |
| Nominal Thickness | 28.0 MM |
| Overall Height | 47.3 MM |
| Outside Diameter | 329.8 MM |
| Mounting Bolt Hole Circle Diameter | 120.0 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309930 |
| UPC | 04562372116858 |
ADVICS C6F092U Cross References
| Brand | Part Number |
|---|---|
| AIMCO | 31468 |
| AISIN | C6F092U |
| Centric Parts | 120.40071 |
| Honda | 45251STXA00, 45251STXH01, 45251TY3A00 |
| N/A | 26011445, BD180044, 18A2513, 980566, 31468, JBR1171, 1407-83037, 44605, YH200523, BR900530, BD1278, 900530, C6F092U, 604-59053, YH200523P, 121.40071, 320.40071F, 45251STXA01, JBR1171EVC |
| Raybestos Brakes | 980566FZN |
ADVICS C6F092U Fits Vehicles
- Acura RLX (2016-2020)
- Acura ZDX (2010-2013)
- Honda Pilot (2009-2015)
- Acura MDX (2007-2013)
