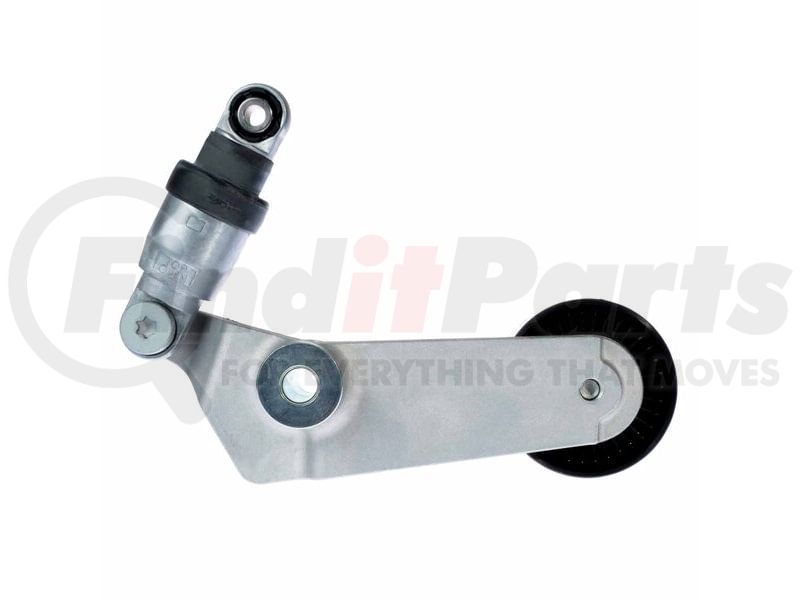

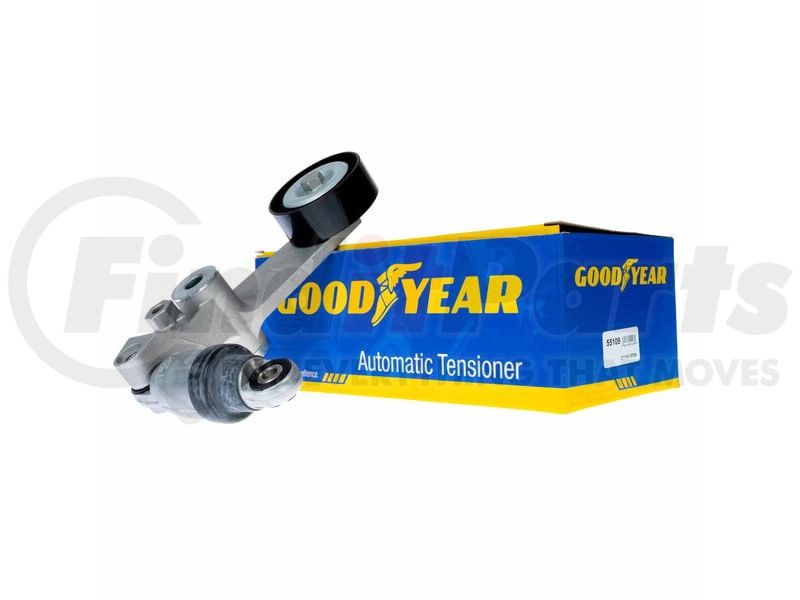

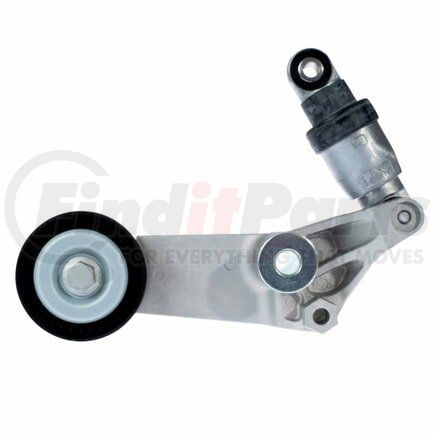

(888) 312-8812 Login SignupGOODYEAR BELTS 55109 Accessory Drive Belt Tensioner Pulley - FEAD Automatic Tensioner, 2.75 in. Outside Diameter, Thermoplastic
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GOODYEAR BELTS 55109 Part Description
Manufacturer
Product Description
FEAD Automatic Tensioner
Features & Benefits
- Properly maintains belt tension ensuring belt drive efficiency
- Dampens torsional vibrations extending belt life Precision made pulleys for proper belt alignment. Premium sealed bearings to protect from contaminants, enhancing the longevity of the pulley bearing and reducing the risk of premature wear. Meets or Exceeds OEM Specifications
- Goodyear belt tensioners and pulleys are precision-engineered to match the specifications and requirements of the vehicle's belt drive system. This ensures a perfect fit and optimal performance.
- Dampens torsional vibrations extending belt life
- Feature automatic tensioning mechanisms that continuously adjust the belt tension as needed, maintaining optimal tension levels under varying operating conditions.
- Precision made pulleys for proper belt alignment.
- Goodyear belt tensioners and pulleys are constructed using durable materials such as steel, aluminum, high-strength polymers, and advanced coatings to withstand the rigors of daily driving.
- Goodyear belt tensioners and pulleys utilize advanced bearing technology, such as sealed bearings and low-friction designs, to reduce wear, noise, and vibration.
- Maintaining proper belt tension and alignment, tensioners and pulleys optimize the performance of the entire belt drive system, including accessories like alternators, power steering pumps, and air conditioning compressors.
GOODYEAR BELTS 55109 Specifications
Product Attributes
| Pulley Contact Surface | Smooth/Backside |
| Pulley Material | Thermoplastic |
| Bearing Bore Inside Diameter | 0.67 IN |
| Outside Diameter | 70 MM |
| Width | 26 MM |
| Outside Diameter | 2.75 IN |
| Bearing Bore Inside Diameter | 17 MM |
| Width | 1.02 IN |
| Item Weight (kg) | 0.85 KG |
| Item Weight (lbs) | 1.89 LB |
| Belt Type | Serpentine |
| Contact Surface | Smooth/Backside |
| Grade Type | OE Performance |
| Housing Material | Steel/Aluminum |
| Material | Thermoplastic |
Additional Information
| Stock Status | S |
| Warranty Time | 12 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | MO |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Canadian Harmonizing Tariff Code | 8708998180 |
| UPC | 00195199551089 |
| VMRS Code | 042003076 |
| UNSPSC | 26111805 |
GOODYEAR BELTS 55109 Cross References
| Brand | Part Number |
|---|---|
| ALT Tensioner | ALT06304 |
| Bando | 780098 |
| CONTINENTAL AG | 49346 |
| Continental | 49346 |
| Dayco | 89356 |
| Dorman - TECHoice | 419-123 |
| Gates | 38286 |
| Hayden | 45578 |
| OEM Part Number | 16620-22010, 16620-22011, 16620-22012, 16620-22013, 16620-0W090, 16620-0W091, 16620-0W092, 16620-0W093, 16620-0D021 |
| Rodatech | RT-90356 |
GOODYEAR BELTS 55109 Fits Vehicles
- Suzuki Aerio (2002)
- Toyota MR2 Spyder (2000-2005)
- Toyota Matrix (2003-2008)
- Toyota Corolla (1998-2008)
- Toyota Celica (2000-2005)
- Pontiac Vibe (2003-2008)
- Chevrolet Prizm (1998-2002)
