(888) 312-8812 Login SignupGOODYEAR BELTS 28596 Accessory Drive Belt - V-Belt, 59.6 in. Effective Length, EPDM
Tap to view 3 more
$3349
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
GOODYEAR BELTS 28596 Part Description
Manufacturer
Product Description
V-Belt

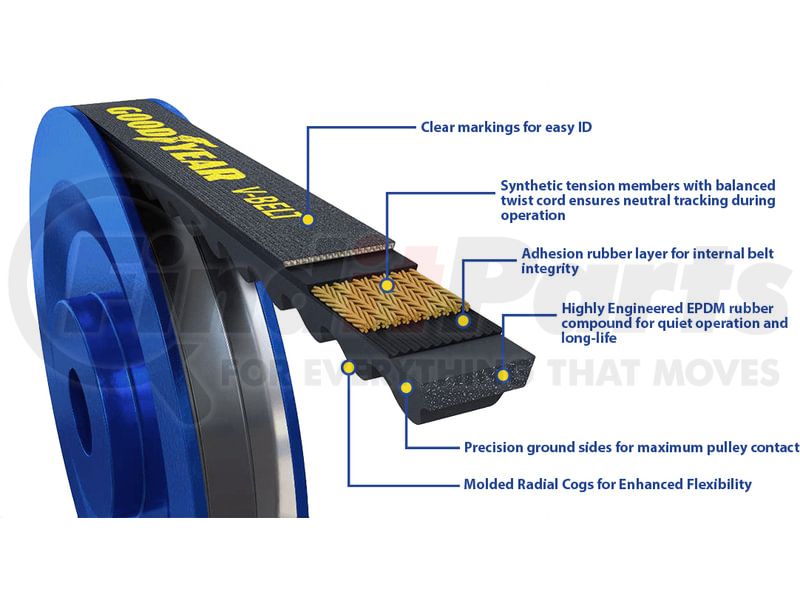

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 28596 Specifications
Product Attributes
| V-belt Profile | 20A |
| Top Width (mm) | 21.5 MM |
| Top Width (in) | 0.846 IN |
| Thickness (mm) | 12.5 mm |
| Thickness (in) | 0.492 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 28 |
| Outside Circumference | 1528 mm |
| Outside Circumference | 60.17 in |
| Effective Length | 1514 mm |
| Effective Length | 59.6 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.88 LB |
| Item Weight (kg) | 0.4 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 20A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 28 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.492 IN |
| Thickness | 12.5 MM |
| Top Cogged | No |
| Top Width | 0.846 in |
| Top Width | 21.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199102311 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 28596 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL AG | 28603 |
| CONTINENTAL/CONTITECH | 28603 |
| Continental | 28603 |
| DAYCO | 28590, 28600 |
| GATES | TR28596 |
| OEM PART NUMBER | 04121-02260, 04121-02560, 04121-22259, 04212-22260, 670340-C11, D1102-5989, 88GB354-P4, D1102-6003, 670340-C1, 328539-R1, JD382K204, V1119061, 3040399, V1090153, 4320755, 1706529, 9033790, 3040400, GT28601, 4339458, 178546, 172487, R17745, BH300A, BH232 |
GOODYEAR BELTS 28596 Fits Vehicles
- Peterbilt 352 (1981)
- Peterbilt 379 (1987-1994)
- Peterbilt 377 (1987-1994)
- Peterbilt 357 (1987)
- Peterbilt 359 (1981-1987)
- Peterbilt 378 (1988-1994)
- Peterbilt 282 (1967-1980)
- Suzuki Aerio (2002)
