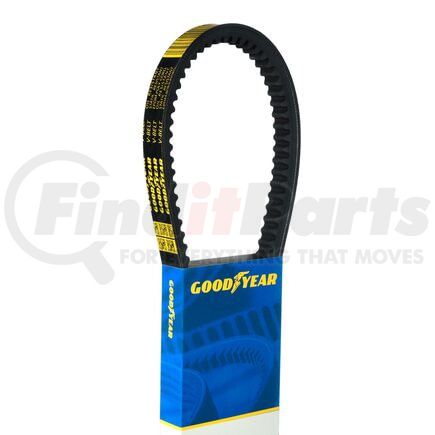

(888) 312-8812 Login SignupGOODYEAR BELTS 28501 Accessory Drive Belt - V-Belt, 50.1 in. Effective Length, EPDM
Tap to view 3 more
$3049
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
GOODYEAR BELTS 28501 Part Description
Manufacturer
Product Description
V-Belt

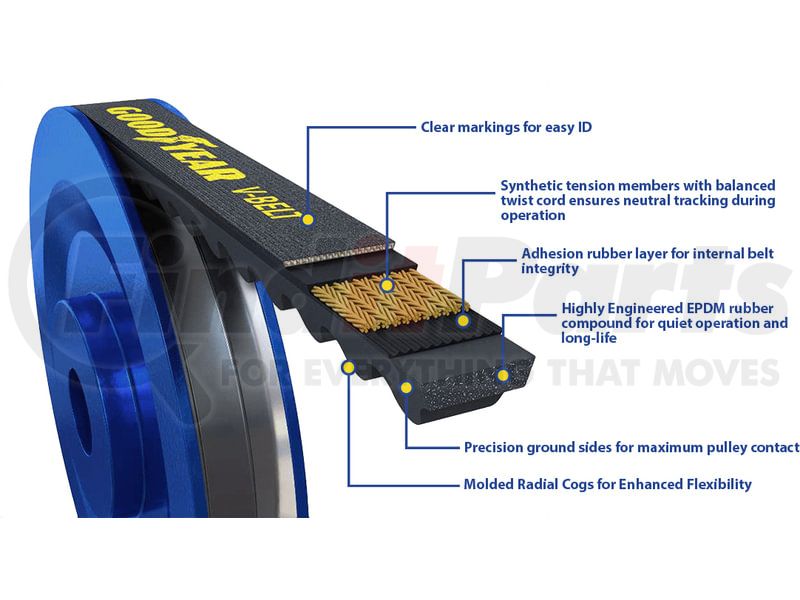

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 28501 Specifications
Product Attributes
| V-belt Profile | 20A |
| Top Width (mm) | 21.5 MM |
| Top Width (in) | 0.846 IN |
| Thickness (mm) | 12.5 mm |
| Thickness (in) | 0.492 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 28 |
| Outside Circumference | 1287 mm |
| Outside Circumference | 50.67 in |
| Effective Length | 1273 mm |
| Effective Length | 50.1 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.75 LB |
| Item Weight (kg) | 0.34 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 20A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 28 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.492 IN |
| Thickness | 12.5 MM |
| Top Cogged | No |
| Top Width | 0.846 in |
| Top Width | 21.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199102229 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 28501 Cross References
| Brand | Part Number |
|---|---|
| Armormark | 20A1270 |
| CONTINENTAL AG | 28503 |
| CONTINENTAL/CONTITECH | 28503 |
| Cartek | CK28501 |
| Continental | 28503 |
| Cummins | 178597 |
| DAYCO | 28503 |
| Dayco | 20A1270 |
| GATES | TR28501 |
| OEM PART NUMBER | D8HT-8A615-BA, D8HT-8620-AA, 23-10001-29, 04121-02229, 04121-22250, 04120-32250, 88GB442P502, 20804-5004, D1102-5835, 363197-R2, 20QL1132, V1091051, 8002650, 8003052, 3040391, GT28504, 4612058, GTFL501, GT28506, 178597, 178560 |
| OEM Part Number | 20A1270 |
GOODYEAR BELTS 28501 Fits Vehicles
- Freightliner FLB (1994-1996)
- Freightliner FLA086 (1989-1994)
- Autocar C / DC (1981-1984)
- Freightliner FLD120 (1988-1996)
- Freightliner FLT086 (1981-1988)
- Freightliner FLC112 (1985-1996)
- Freightliner FLC120 (1981-1988)
- Kenworth W900 (1981)
- Kenworth C500 (1992)
- Peterbilt 379 (1987-1994)
- Peterbilt 377 (1987-1994)
- Peterbilt 362 (1981-1996)
- Peterbilt 357 (1987)
- Kenworth K100E (1985-1999)
- Peterbilt 359 (1981-1987)
- Kenworth K100 (1981-1985)
- Peterbilt 378 (1988-1994)
- International 8200 (1996)
- International 8100 (1996)
- International 2574 (1990-1995)
- International 2674 (1990-1995)
- Suzuki Aerio (2002)
- Ford CLT9000 (1981-1989)
- Ford CL9000 (1981-1989)
- Packard Standard Eight (1948-1950)
- Packard Super Deluxe Eight (1949-1950)
- Packard Deluxe Eight (1948-1950)
- Packard Super Eight (1948-1950)
- Auburn Model 12-160 (1932)
- Auburn Model 12-161 (1933)
- Auburn Model 12-165 (1933)
- Auburn Model 1250 (1934)
