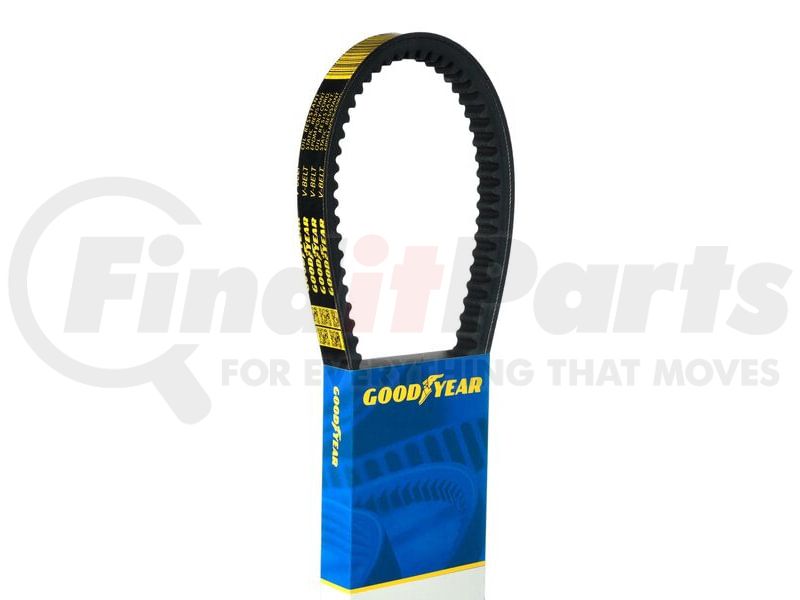

(888) 312-8812 Login SignupGOODYEAR BELTS 22657 Accessory Drive Belt - V-Belt, 65.7 in. Effective Length, EPDM
Tap to view 3 more
$3099
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
GOODYEAR BELTS 22657 Part Description
Manufacturer
Product Description
V-Belt

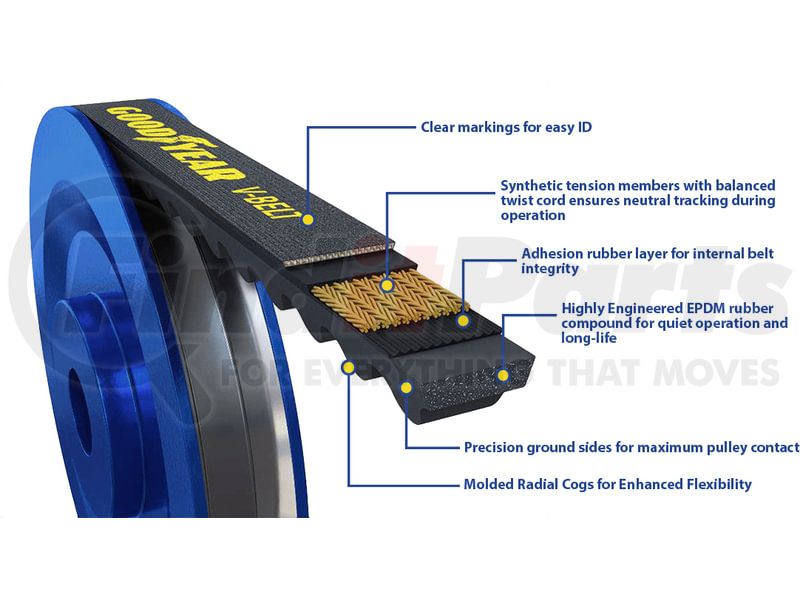

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.

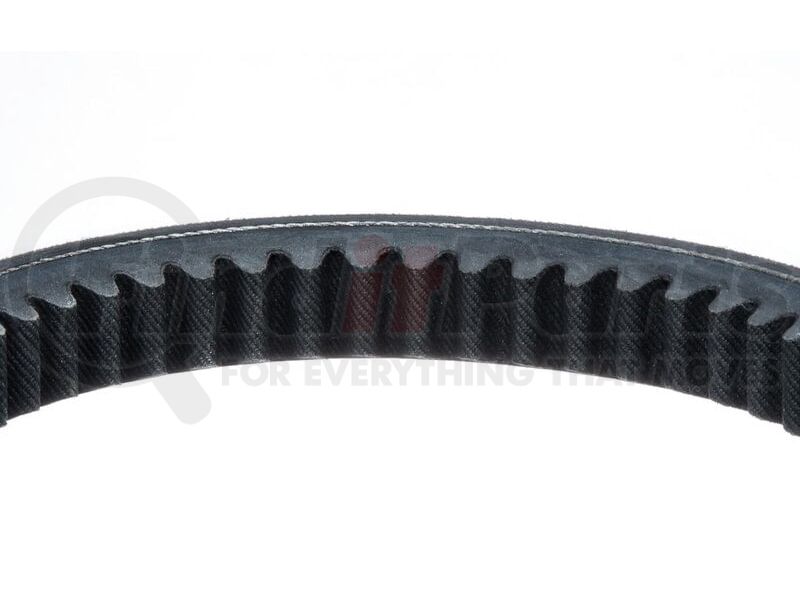

- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 22657 Specifications
Product Attributes
| V-belt Profile | 15A |
| Top Width (mm) | 17 MM |
| Top Width (in) | 0.669 IN |
| Thickness (mm) | 10.5 mm |
| Thickness (in) | 0.413 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 22 |
| Outside Circumference | 1683 mm |
| Outside Circumference | 66.27 in |
| Effective Length | 1669 mm |
| Effective Length | 65.7 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.66 LB |
| Item Weight (kg) | 0.3 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 15A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 22 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.413 IN |
| Thickness | 10.5 MM |
| Top Cogged | No |
| Top Width | 0.669 in |
| Top Width | 17 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101659 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 22657 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL AG | 22660 |
| CONTINENTAL/CONTITECH | 22660 |
| Continental | 22660 |
| DAYCO | 22655 |
| GATES | TR22657 |
| OEM PART NUMBER | D6HS-8A615-CA, D6HS-8620-AA, 90916-02193, 1979149-C1, 1979234-C1, B9J-8620-E, 680600-C1, 359-6455, V1090144, GT22660, T38546, 9N1327, 9N2802, 9Y4051, 9N1320, 7C9001, 9Y4052 |
GOODYEAR BELTS 22657 Fits Vehicles
- Western Star 4900 (1994)
- Kenworth W900 (1981)
- Autocar AT (1983-1986)
- International F2654 (1980-1986)
- International F2554 (1979-1986)
- International 2554 (1979-1986)
- International 2155 (1979-1986)
- International S2155 (1984-1986)
- International S2554 (1981-1986)
- Suzuki Aerio (2002)
- Mercedes-Benz L1319 (1987-1989)
- Ford CLT9000 (1981-1989)
- Ford CL9000 (1981-1983, 1985-1989)
- Toyota Land Cruiser (1988-1992)
