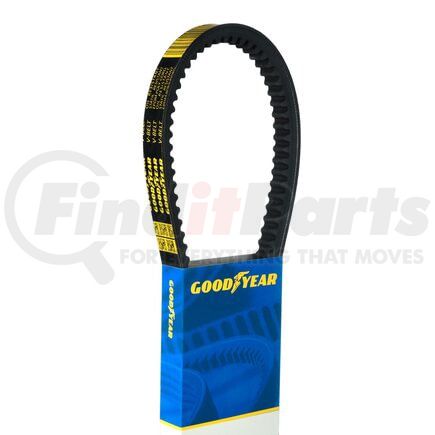

(888) 312-8812 Login SignupGOODYEAR BELTS 22508 Accessory Drive Belt - V-Belt, 50.8 in. Effective Length, EPDM
Tap to view 3 more
$2449
Limited availability at this price!
In Stock
Get it by Friday, Mar 20
GOODYEAR BELTS 22508 Part Description
Manufacturer
Product Description
V-Belt

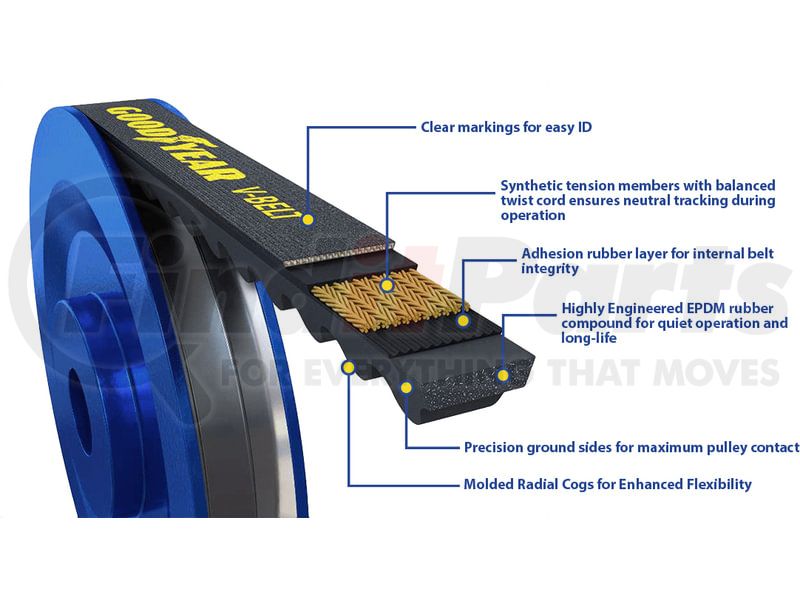

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 22508 Specifications
Product Attributes
| V-belt Profile | 15A |
| Top Width (mm) | 17 MM |
| Top Width (in) | 0.669 IN |
| Thickness (mm) | 10.5 mm |
| Thickness (in) | 0.413 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 22 |
| Outside Circumference | 1305 mm |
| Outside Circumference | 51.37 in |
| Effective Length | 1290 mm |
| Effective Length | 50.8 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.51 LB |
| Item Weight (kg) | 0.23 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 15A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 22 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.413 IN |
| Thickness | 10.5 MM |
| Top Cogged | No |
| Top Width | 0.669 in |
| Top Width | 17 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101499 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 22508 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL AG | 22510 |
| CONTINENTAL/CONTITECH | 22510, 22514 |
| Continental | 22510, 22514 |
| DAYCO | 22505 |
| GATES | TR22508 |
| OEM PART NUMBER | D8HS-8A615-BA, 23-10001-049, D8HS-8620-AA, 04120-31751, E1HZ-8620-C, 193826-R11, 02-7016836, D1102-4687, 20804-5025, 193826-R1, 16000261D, 306910-R1, 9-875-13, 9-875-15, 70675230, 9128109, GT22512, B22510A, B22514A, B22512A, 4392615, 675230, T24473, T24757 |
GOODYEAR BELTS 22508 Fits Vehicles
- Freightliner FLD120 (1988-1993, 1995, 1997)
- Freightliner FLD112 (1992-1993)
- International CO220 (1971)
- International CO200 (1970-1971)
- International CO190 (1970-1971)
- Suzuki Aerio (2002)
- Ford LNT9000 (1981-1984, 1986-1989)
- Ford LTS9000 (1984-1989)
- Ford LN9000 (1981-1984)
- Ford L9000 (1981-1989)
- Cadillac Series 90 (1938-1940)
