(888) 312-8812 Login SignupGOODYEAR BELTS 22397 Accessory Drive Belt - V-Belt, 39.7 in. Effective Length, EPDM
Tap to view 3 more
$1699
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
GOODYEAR BELTS 22397 Part Description
Manufacturer
Product Description
V-Belt
Features & Benefits
- Meets or Exceeds OEM Specifications

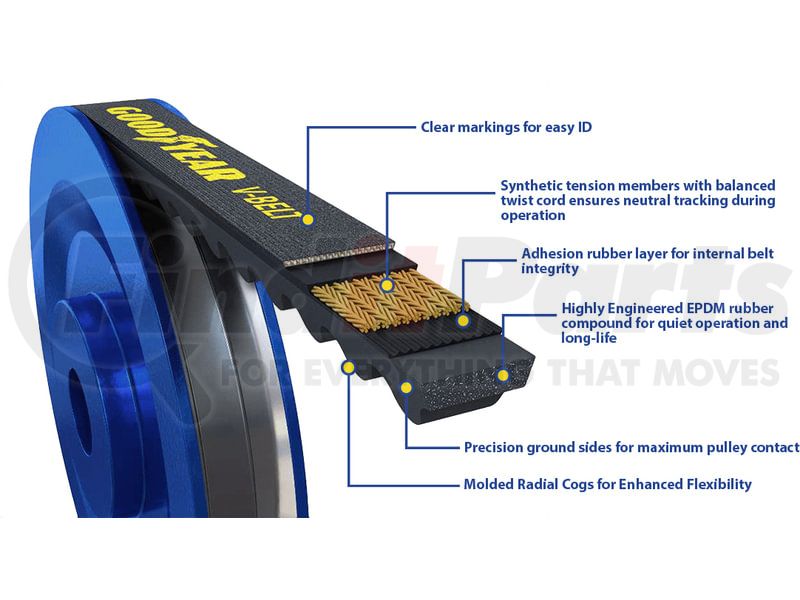

- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.

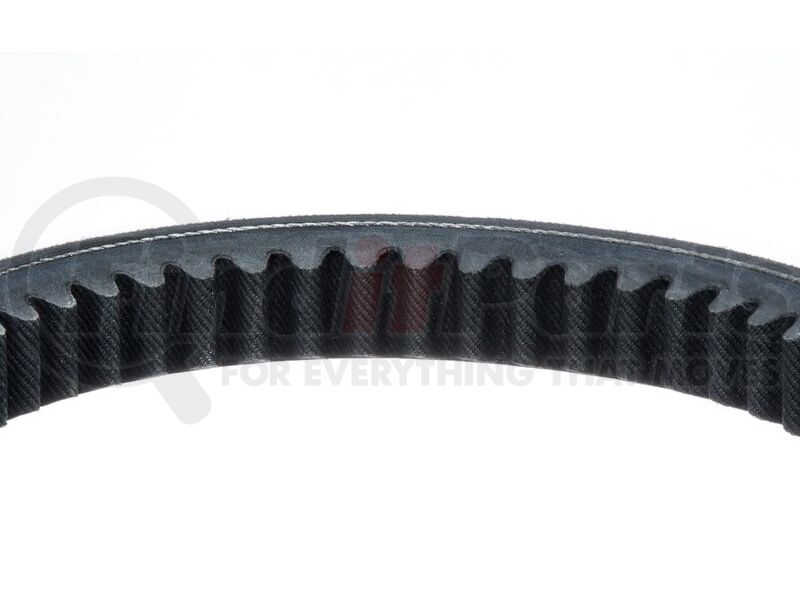

- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 22397 Specifications
Product Attributes
| V-belt Profile | 15A |
| Top Width (mm) | 17 MM |
| Top Width (in) | 0.669 IN |
| Thickness (mm) | 10.5 mm |
| Thickness (in) | 0.413 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 22 |
| Outside Circumference | 1023 mm |
| Outside Circumference | 40.27 in |
| Effective Length | 1008 mm |
| Effective Length | 39.7 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.4 LB |
| Item Weight (kg) | 0.18 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 15A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 22 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.413 IN |
| Thickness | 10.5 MM |
| Top Cogged | No |
| Top Width | 0.669 in |
| Top Width | 17 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101321 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 22397 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL AG | 22400 |
| CONTINENTAL/CONTITECH | 22400, 22404 |
| Continental | 22400, 22404 |
| DAYCO | 22395 |
| GATES | TR22397 |
| OEM PART NUMBER | 04121-21740, 04120-01714, 04120-21740, 90916-02141, 02-7070545, 20804-5053, 02-7001470, 02-7003506, 02-7074378, 3857B1-400, 02-7136030, 286679-C1, 286758-C1, 433719-R1, 235182-R1, 235182-R2, 1930G1-1, 700222A7, V1091019, V1091020, 700797A7, DT2401CS, 9110300, 3040349, 9230092, 3004749, 9032903, Y536298, 3040350, 5129386, 8002676, B22394A, B22400A, GT22401, B22403A, B22404A, Y697689, H23725H, GTFL465, GTFL612, 351924, 134265, 162852, 178573, 178585, 695336, 699870, 178710, 146341, 700222, 213387, 351925, 700797, 240788, 697689, B22400, 178964, 197583, 351923, 235182, PM0123, 11724, 3240, BH62 |
GOODYEAR BELTS 22397 Fits Vehicles
- Peterbilt 282 (1965-1968)
- Suzuki Aerio (2002)
- Nissan Maxima (1981-1982)
- Nissan 810 (1981)
- Mitsubishi Fuso FM (1986-1989)
- Mitsubishi Fuso FK (1986-1989)
- UD 3000SD (1992-1994)
- UD 600T (1992-1994)
- UD 3300 (1992-1994)
- UD 3000HD (1992)
- UD 2600 (1989-1997)
- UD 2300 (1989-1997)
- Studebaker Champion (1946, 1950-1953)
