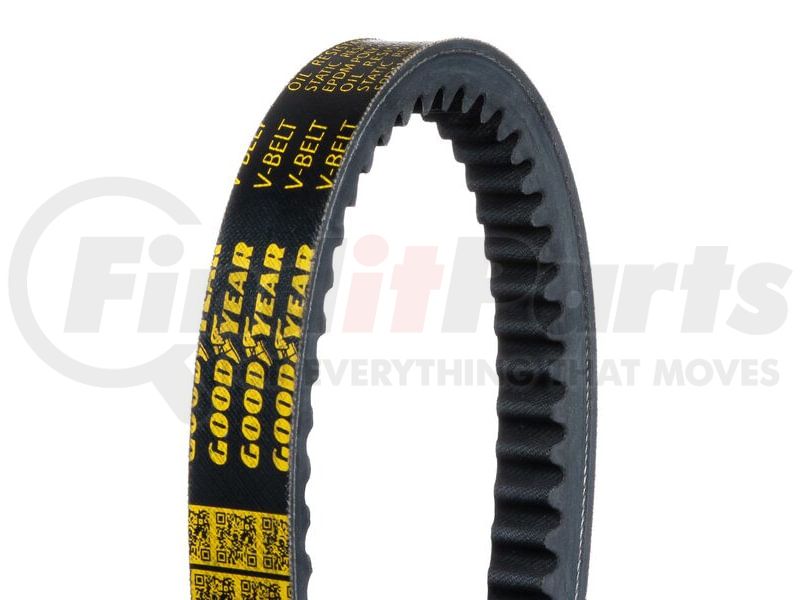

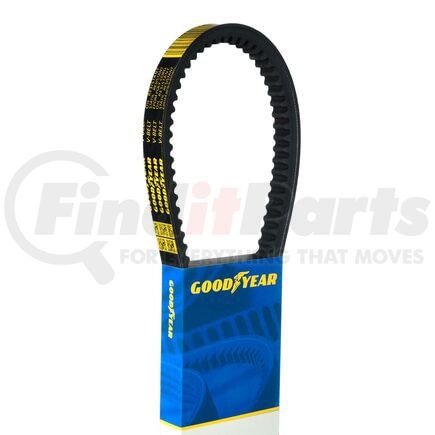

(888) 312-8812 Login SignupGOODYEAR BELTS 22358 Accessory Drive Belt - V-Belt, 35.8 in. Effective Length, EPDM
Tap to view 3 more
$1699
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
GOODYEAR BELTS 22358 Part Description
Manufacturer
Product Description
V-Belt
Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound

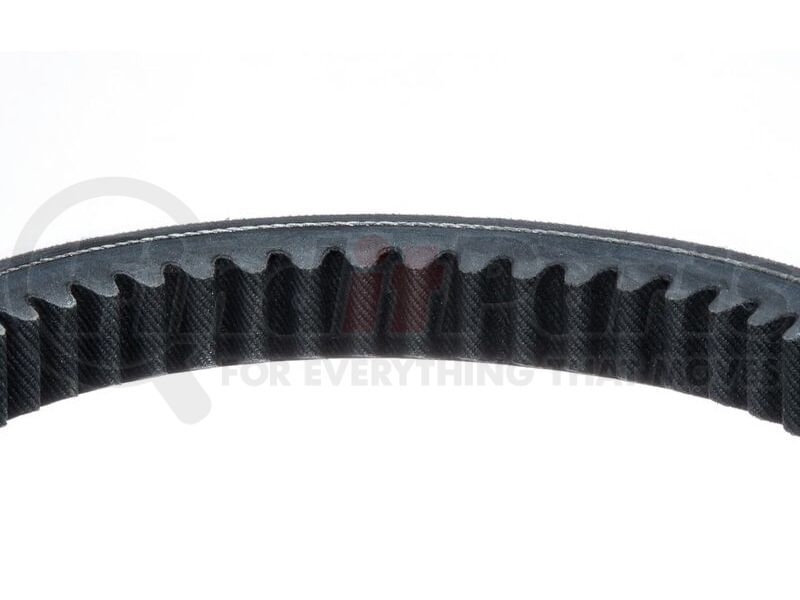

- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 22358 Specifications
Product Attributes
| V-belt Profile | 15A |
| Top Width (mm) | 17 MM |
| Top Width (in) | 0.669 IN |
| Thickness (mm) | 10.5 mm |
| Thickness (in) | 0.413 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 22 |
| Outside Circumference | 924 mm |
| Outside Circumference | 36.37 in |
| Effective Length | 909 mm |
| Effective Length | 35.8 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.37 LB |
| Item Weight (kg) | 0.17 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 15A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 22 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.413 IN |
| Thickness | 10.5 MM |
| Top Cogged | No |
| Top Width | 0.669 in |
| Top Width | 17 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101260 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 22358 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL AG | 22360 |
| CONTINENTAL/CONTITECH | 22360, 22364 |
| Continental | 22360, 22364 |
| DAYCO | 22355 |
| GATES | TR22358 |
| OEM PART NUMBER | 11920-N3600, 290926-C91, D1102-4309, D1102-4323, 2028B89H58, 290926-C1, 431123-R1, 252161-C1, 70663945, V1092221, V1091014, 700784A7, 3040344, 9029118, Y507364, Y568990, 700784A, GT22366, 3040443, B22363A, B22364A, GT22363, 178581, GTFL560, 194370, 663945, 700784, 178436, M3055T, VL6898, 11964, 1570 |
GOODYEAR BELTS 22358 Fits Vehicles
- International 8200 (1990-1996)
- Suzuki Aerio (2002)
