(888) 312-8812 Login SignupGOODYEAR BELTS 17545 Accessory Drive Belt - V-Belt, 54.5 in. Effective Length, EPDM
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GOODYEAR BELTS 17545 Part Description
Manufacturer
Product Description
V-Belt

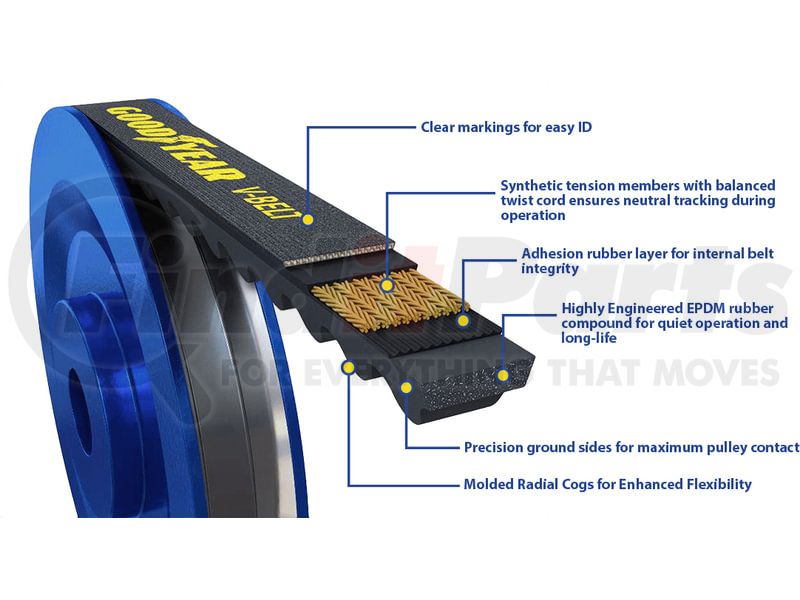

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 17545 Specifications
Product Attributes
| Top Width (mm) | 13.5 MM |
| Top Width (in) | 0.531 IN |
| Thickness (mm) | 9 mm |
| Thickness (in) | 0.354 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 17 |
| Outside Circumference | 1394 mm |
| Outside Circumference | 54.87 in |
| Effective Length | 1384 mm |
| Effective Length | 54.5 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.35 LB |
| Item Weight (kg) | 0.16 KG |
| Belt Material | EPDM |
| V-belt Profile | 13A |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 13A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 17 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.354 IN |
| Thickness | 9 MM |
| Top Cogged | No |
| Top Width | 0.531 in |
| Top Width | 13.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199100829 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 17545 Cross References
| Brand | Part Number |
|---|---|
| AC Delco | 17545 |
| ACDELCO | 17545 |
| Armormark | 13A1385 |
| CONTINENTAL AG | 17544 |
| CONTINENTAL/CONTITECH | 17544 |
| Continental | 17544 |
| DAYCO | 17548 |
| Dayco | 13A1385 |
| Duralast | 17544 |
| GATES | 9545 |
| Mileage Maker | 17544MK |
| NAPA | 259545 |
| OEM PART NUMBER | 20804-3502-544, D2ZE-8620-AE1A, D8NN-10C318-EA, F2HS-8A615-DA, F2HS-8A615-EA, A0039971992KZ, F1HT-8A615-FA, C9NN-10C318-B, 01-20984-002, 23-10001-062, E6HT-8620-AA, E4UE-8620-AA, C4TE-8620-AA, C9NN-10318-B, 99522-11380, 99322-01375, C8TA-2890-D, E6HZ-8620-E, 88GB439P547, C5AZ-8620-G, C5NE-8620-B, 427412-C91, 61137-0002, 760861-C11, 88GB354P53, C629028C19, C629028C27, 16000205D, 674404-X1, 760861-C1, G11502381, 73046916, 74009077, V1090986, 11502381, GT2PB545, 74020984, M363K207, V1090832, 5108881, 5128581, 3046916, 4009077, 3723329, 8003364, 9433914, R112801, 4008927, 4009179, 4020984, 3418385, 3040870, 4009498, 206799, 735551, 967266, 2PB545, 577240, 966641, 967136, BH193 |
| OEM Part Number | 13A1385 |
GOODYEAR BELTS 17545 Fits Vehicles
- Freightliner FLD120 (1988-1989, 1992-1999)
- Freightliner FLT086 (1984-1988)
- Freightliner FLC112 (1987-1997)
- Freightliner FLD112 (1993-1998)
- Freightliner FLC120 (1987-1988)
- Western Star 4900E (1997-2000)
- Western Star 6900 (1989-1994)
- Western Star 4900 (1981-2000)
- Western Star 4800 (1981-1996)
- Kenworth C550 (1994)
- Peterbilt 377 (1994-1996, 1998, 2000)
- Kenworth C500 (1989-1994)
- Peterbilt 379 (1994-1996, 2000)
- Peterbilt 378 (1994-1996, 1998, 2000)
- Peterbilt 357 (1994-1998, 2000)
- Freightliner Century Class (1997)
- Freightliner FL112 (1997)
- Suzuki Aerio (2002)
- GMC Brigadier (1981-1984)
- Ford F-600 LPO (1991-1993)
- Ford LL9000 (1995)
- Ford LTL9000 (1995)
- Ford LTLS9000 (1995-1996)
- Ford LTS9000 (1995-1996)
- Ford LTLA9000 (1993, 1995-1996)
- Ford LT9000 (1995-1996)
- Ford LS9000 (1995-1996)
- Ford LLA9000 (1994)
- Ford L9000 (1996)
- White/GMC WHM (1991)
- White/GMC WHEB (1991-1995)
- White/GMC WAH (1990-1995)
- Ford AT9513 (1996)
- Ford CLT9000 (1990-1991)
- White WXLL (1987-1988)
- White/GMC WHR (1990-1995)
- Ford CL9000 (1990-1991)
- White/GMC J9C0 (1988-1989)
- White WX (1987-1988)
- White/GMC WG (1993-1994)
- GMC Astro (1984-1985)
- GMC General (1981-1988)
- Ford B-700 (1991-1993)
- Ford B-600 (1991-1993)
- GMC 3500 (1966)
- GMC 3000 (1966)
- Ford Custom (1965, 1968)
- Chevrolet 3E (1959)
- Chevrolet 3G (1959)
- Chevrolet 3C (1959)
- Chevrolet 3F (1959)
- Chevrolet 3B (1959)
- Chevrolet 3D (1959)
- Chevrolet Truck (1955-1958)
- Ford F-800 (1992-1993)
- Ford F-700 (1991-1993)
- Ford F-600 (1991, 1993)
- Mercury Villager (1967)
- Mercury Voyager (1966-1967)
- Mercury Marquis (1967)
- Mercury Cougar (1968)
- Mercury Colony Park (1967)
- GMC K35/K3500 Pickup (1968)
- GMC K25/K2500 Pickup (1968)
- GMC K15/K1500 Pickup (1968)
- GMC C35/C3500 Pickup (1968)
- GMC C25/C2500 Pickup (1968)
- GMC C15/C1500 Pickup (1968)
- Ford Ranch Wagon (1965, 1968)
- Ford LTD (1965, 1968)
- Ford Galaxie 500 (1965, 1968)
- Ford Galaxie (1965)
- Ford Custom 500 (1965, 1968)
- Ford Country Squire (1965, 1968)
- Chevrolet Suburban (1963-1964, 1966)
- Chevrolet P30 Series (1966)
- Chevrolet P20 Series (1966)
- Chevrolet K20 Pickup (1966)
- Chevrolet K10 Pickup (1966)
- Chevrolet C30 Pickup (1966)
- Chevrolet C20 Pickup (1966)
- Chevrolet C10 Pickup (1966)
- Isuzu I-Mark (1981-1984)
- Peugeot 505 (1988-1990)
GOODYEAR BELTS 17545 Customer Reviews
No reviews yet
Be the first to review this product!
GOODYEAR BELTS 17545 Questions & Answers
No questions yet
Be the first to ask a question about this product!
