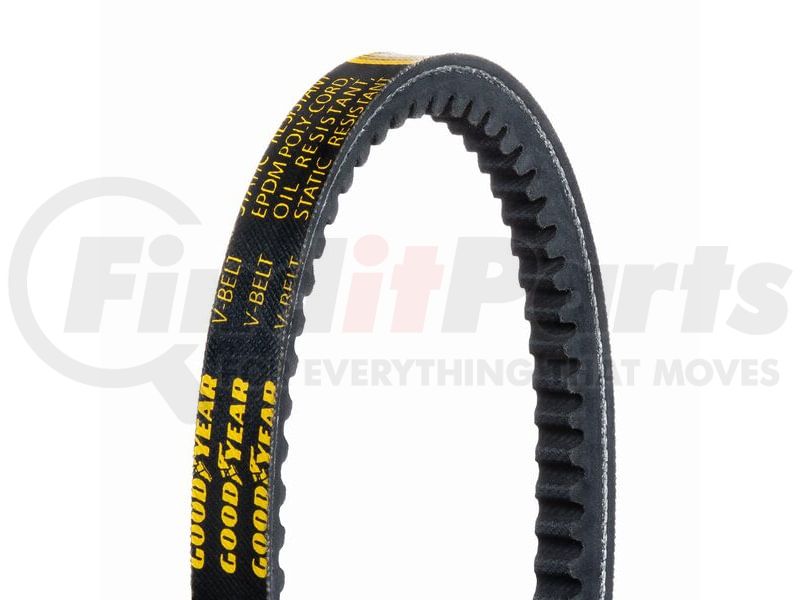

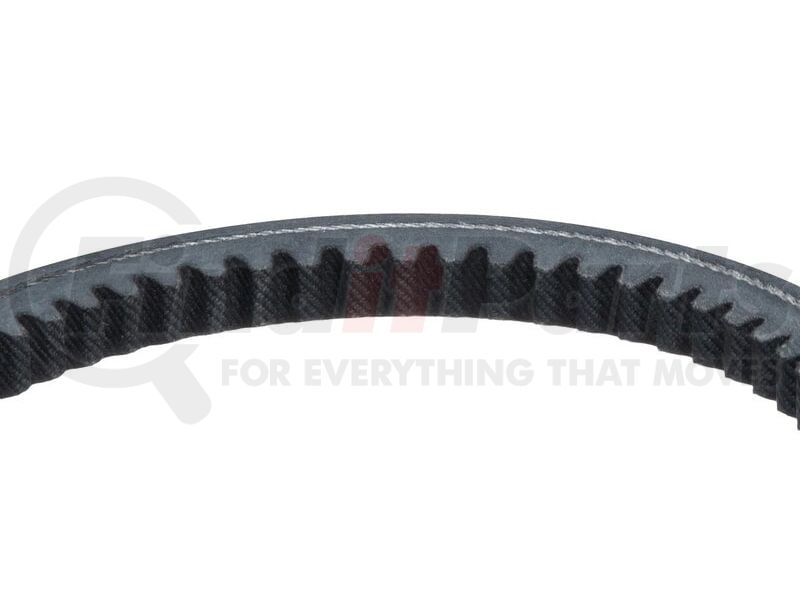

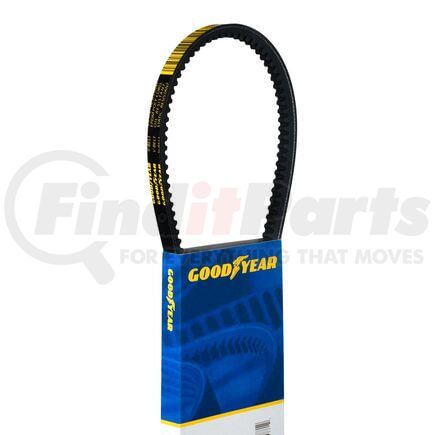

(888) 312-8812 Login SignupGOODYEAR BELTS 17345 Accessory Drive Belt - V-Belt, 34.5 in. Effective Length, EPDM
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GOODYEAR BELTS 17345 Part Description
Manufacturer
Product Description
V-Belt

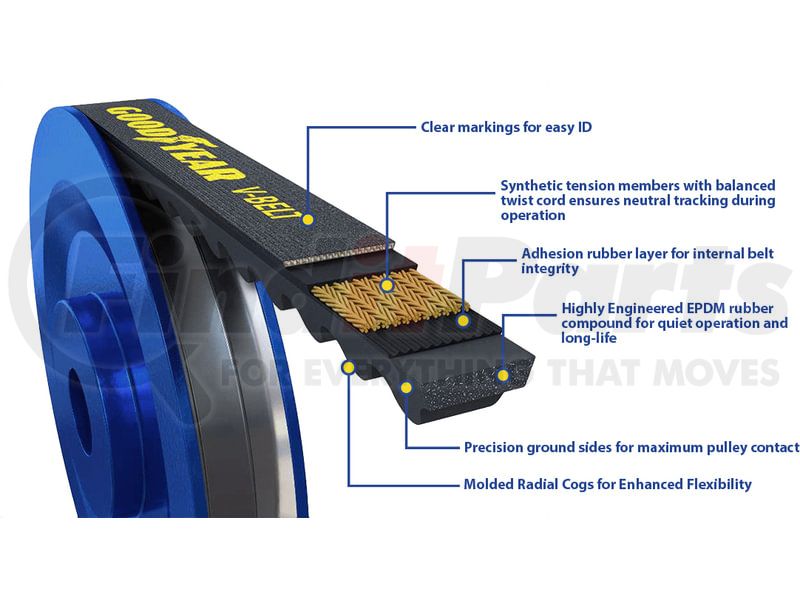

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 17345 Specifications
Product Attributes
| Profile Series | 17 |
| Outside Circumference | 886 mm |
| Outside Circumference | 34.87 in |
| Effective Length | 876 mm |
| Effective Length | 34.5 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.22 LB |
| Item Weight (kg) | 0.1 KG |
| Belt Material | EPDM |
| V-belt Profile | 13A |
| Top Width (mm) | 13.5 MM |
| Top Width (in) | 0.531 IN |
| Thickness (mm) | 9 mm |
| Thickness (in) | 0.354 In |
| Rib Angle | 36⁰ DD |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 13A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 17 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.354 IN |
| Thickness | 9 MM |
| Top Cogged | No |
| Top Width | 0.531 in |
| Top Width | 13.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199100362 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 17345 Cross References
| Brand | Part Number |
|---|---|
| AC Delco | 17345 |
| ACDELCO | 17345 |
| Armormark | 17343 |
| CONTINENTAL AG | 17345 |
| CONTINENTAL/CONTITECH | 17345 |
| Continental | 17345 |
| DAYCO | 17343 |
| Dayco | 13A0875 |
| GATES | 9345 |
| Mileage Maker | 17345MK |
| NAPA | 259345 |
| OEM PART NUMBER | 38920-692-0130, 004.997.94.92, 70-133-00-399, 8-97045-68-1, 047.260.849A, 38920-692-003, C7TS-8A615-B, ZVW800-618-6, C1TZ-8620-D, 593048-1300, 99332-00860, 99332-10865, 99332-10870, 99332-10875, 99332-60870, B6TZ-8620-B, C3TE-8620-B, C5TS-8620-N, 11920-N8500, C6TE-8620-G, 8942179180, D1102-3231, EAM-2890-H, 88GB354P13, 386775-C1, W06532611, 57-39756, E65-4208, 94203081, V1090129, V1090793, AW310409, 5143240, 3174406, 49341-D, B17345A, 9108123, 544082, 967168, 967225, 178409, 966856, 968485, 665819, 9H7271, B17345, 511P25, FM33.7, 7E0744, BH1749, UN4587, AER6V1, A33.5, 12168, MH181, BH32, BH30 |
| OEM Part Number | 17343 |
| PRIVATE LABEL | 17343 |
GOODYEAR BELTS 17345 Fits Vehicles
- Kenworth C500 (1981)
- Kenworth W900 (1981-1985)
- Kenworth K100 (1981-1984)
- Peterbilt 330 (1995-1996)
- Kenworth T300 (1996-1997)
- Suzuki Aerio (2002)
- Chevrolet P6000 (1995-1996)
- GMC B7 (1996)
- Chevrolet C60 Kodiak (1992)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
- Chevrolet C70 Kodiak (1990, 1995)
- Dodge W300 Pickup (1973-1974)
- Dodge W200 Pickup (1973-1974)
- Dodge W100 Pickup (1973-1974)
- Dodge Ramcharger (1974)
- Dodge D300 Pickup (1972-1974)
- Dodge D200 Pickup (1973-1974)
- Dodge D100 Pickup (1973-1974)
- Toyota Starlet (1981-1984)
- Toyota Pickup (1981-1995)
- Toyota Corolla (1984-1986)
- Toyota 4Runner (1984-1995)
- Mercedes-Benz 190E (1984)
- Mercedes-Benz 240D (1977-1983)
- Honda Passport (1994-1996)
- Honda Prelude (1979-1982)
- Chevrolet Nova (1985-1988)
- Plymouth Colt (1989-1990)
- Isuzu Rodeo (1994-1997)
- Isuzu Pickup (1994-1995)
- BMW 320i (1977-1980)
- Porsche 924 (1979-1982)
