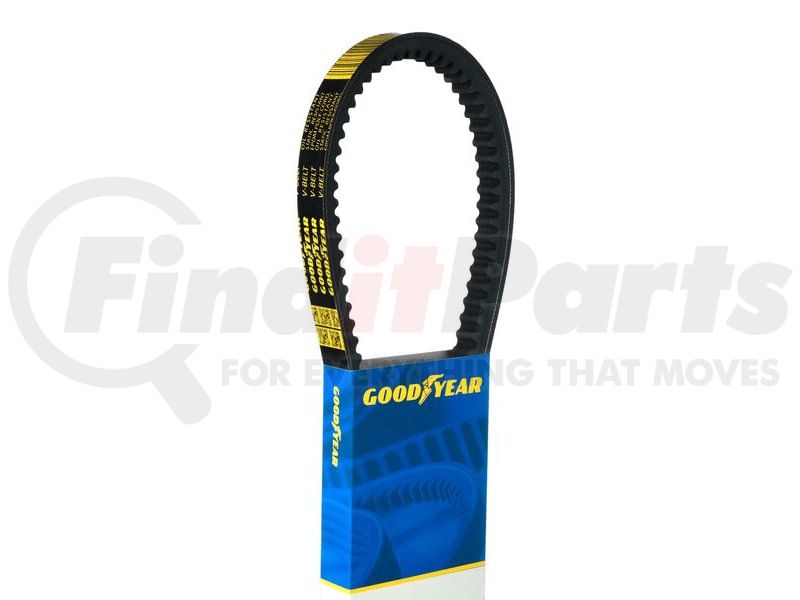

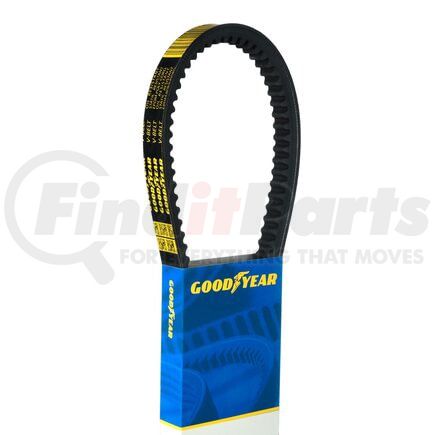

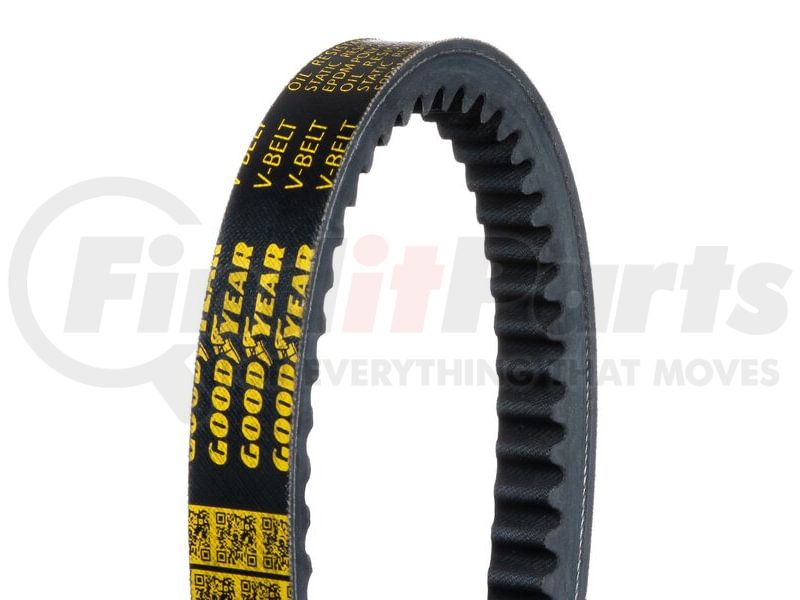

(888) 312-8812 Login SignupGOODYEAR BELTS 22720 Accessory Drive Belt - V-Belt, 72 in. Effective Length, EPDM
Tap to view 3 more
$3499
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 17
GOODYEAR BELTS 22720 Part Description
Manufacturer
Product Description
V-Belt
Features & Benefits

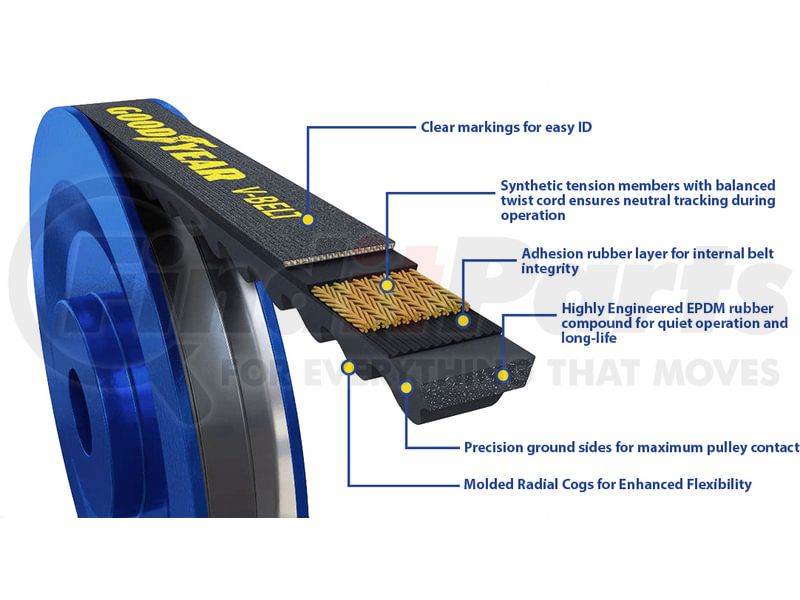

- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound

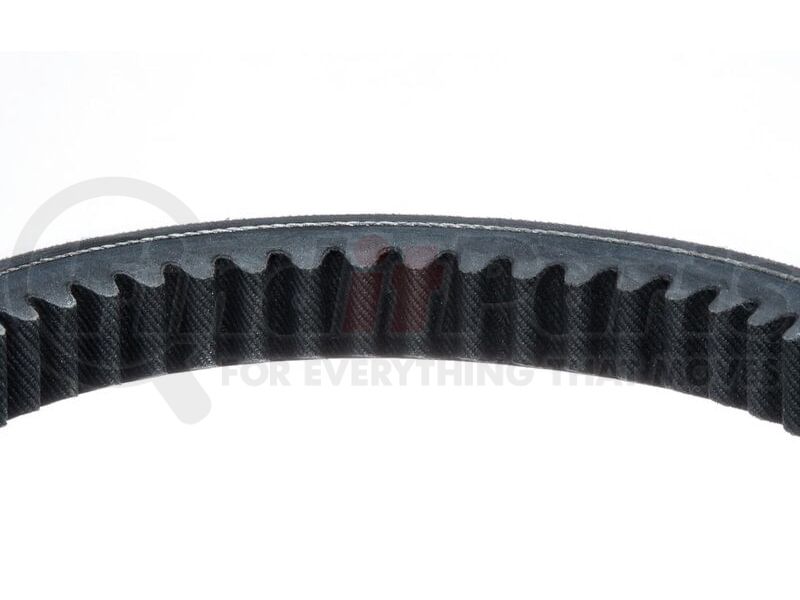

- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 22720 Specifications
Product Attributes
| V-belt Profile | 15A |
| Top Width (mm) | 17 MM |
| Top Width (in) | 0.669 IN |
| Thickness (mm) | 10.5 mm |
| Thickness (in) | 0.413 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 22 |
| Outside Circumference | 1843 mm |
| Outside Circumference | 72.57 in |
| Effective Length | 1829 mm |
| Effective Length | 72 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.73 LB |
| Item Weight (kg) | 0.33 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 15A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 22 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.413 IN |
| Thickness | 10.5 MM |
| Top Cogged | No |
| Top Width | 0.669 in |
| Top Width | 17 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101703 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 22720 Cross References
| Brand | Part Number |
|---|---|
| CONTINENTAL AG | 22720 |
| CONTINENTAL/CONTITECH | 22720, 22730 |
| Continental | 22720, 22730 |
| DAYCO | 22720 |
| GATES | TR22720 |
| OEM PART NUMBER | 326758-R11, 683321-C91, 379261-C91, D1102-5093, 683328-C1, 326758-R1, 321001-C1, 50-2279T1, 5115063, 5141387, B22730A, 8N3443, 9L6652, 5N2346, 5N3975, 5N4751, 6N0073, 5N3974, 2059-01-01, 6N73 |
| OEM Part Number | 1/1/2059 |
GOODYEAR BELTS 22720 Fits Vehicles
- Peterbilt 282 (1965-1969)
- Suzuki Aerio (2002)
