(888) 312-8812 Login SignupGOODYEAR BELTS 17770 Accessory Drive Belt - V-Belt, 77 in. Effective Length, EPDM
Tap to view 3 more
$3499
Limited availability at this price!
In Stock
Get it by Friday, Mar 20
GOODYEAR BELTS 17770 Part Description
Manufacturer
Product Description
V-Belt
Features & Benefits
- Meets or Exceeds OEM Specifications

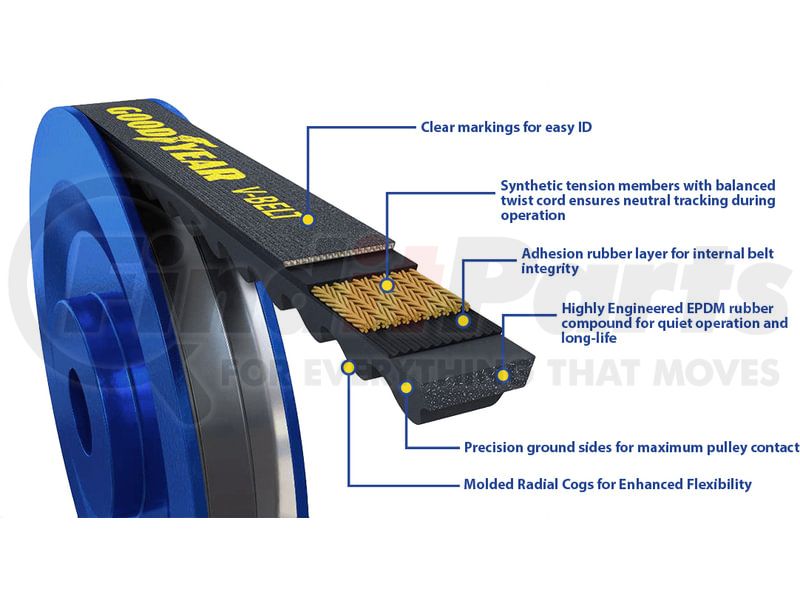

- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 17770 Specifications
Product Attributes
| V-belt Profile | 13A |
| Top Width (mm) | 13.5 MM |
| Top Width (in) | 0.531 IN |
| Thickness (mm) | 9 mm |
| Thickness (in) | 0.354 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 17 |
| Outside Circumference | 1965 mm |
| Outside Circumference | 77.37 in |
| Effective Length | 1956 mm |
| Effective Length | 77 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.49 LB |
| Item Weight (kg) | 0.22 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 13A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 17 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.354 IN |
| Thickness | 9 MM |
| Top Cogged | No |
| Top Width | 0.531 in |
| Top Width | 13.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101130 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 17770 Cross References
GOODYEAR BELTS 17770 Fits Vehicles
- Suzuki Aerio (2002)
- GMC Brigadier (1981-1982, 1984-1988)
- GMC General (1981-1988)
