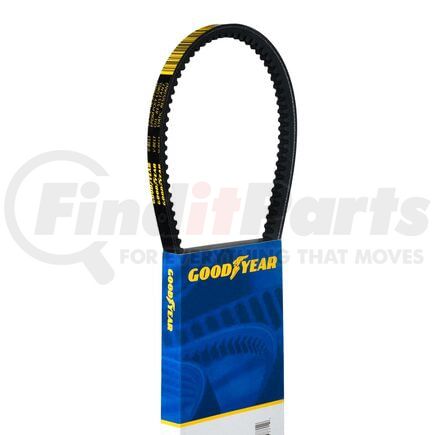

(888) 312-8812 Login SignupGOODYEAR BELTS 17745 Accessory Drive Belt - V-Belt, 74.5 in. Effective Length, EPDM
Tap to view 3 more
$3399
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
GOODYEAR BELTS 17745 Part Description
Manufacturer
Product Description
V-Belt

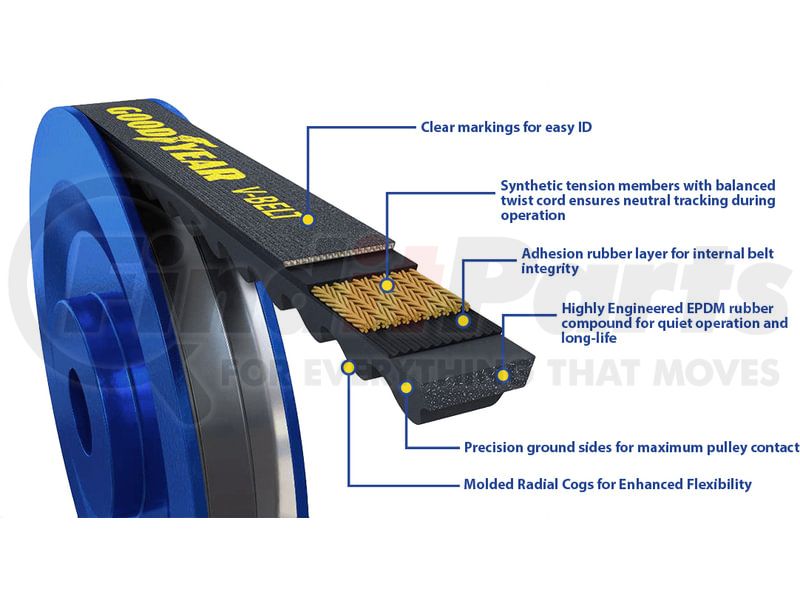

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 17745 Specifications
Product Attributes
| V-belt Profile | 13A |
| Top Width (mm) | 13.5 MM |
| Top Width (in) | 0.531 IN |
| Thickness (mm) | 9 mm |
| Thickness (in) | 0.354 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 17 |
| Outside Circumference | 1902 mm |
| Outside Circumference | 74.87 in |
| Effective Length | 1892 mm |
| Effective Length | 74.5 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.46 LB |
| Item Weight (kg) | 0.21 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 13A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 17 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.354 IN |
| Thickness | 9 MM |
| Top Cogged | No |
| Top Width | 0.531 in |
| Top Width | 13.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101109 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 17745 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 17745 |
| Armormark | 17745 |
| CONTINENTAL AG | 17741 |
| DAYCO | 17745, 17750 |
| GATES | 9745 |
| NAPA | 259745 |
| OEM PART NUMBER | 50.00.564.436, 005.997.85.92, 2045B55-H12, 1809874-C1, D1102-4127, 04-9043892, 88GB354P39, TE800496, 11502420, V1119055, V1091976, 2480976, 8003589, 2946719, GT17752, 9433945, GT17751, 7E3372, 5M0923, 7C7204, 7E372 |
| OEM Part Number | 17745 |
| PRIVATE LABEL | 17745 |
GOODYEAR BELTS 17745 Fits Vehicles
- Suzuki Aerio (2002)
- GMC B6000 (1988-1989)
