(888) 312-8812 Login SignupGOODYEAR BELTS 17690 Accessory Drive Belt - V-Belt, 69 in. Effective Length, EPDM
Tap to view 3 more
$3899
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
GOODYEAR BELTS 17690 Part Description
Manufacturer
Product Description
V-Belt

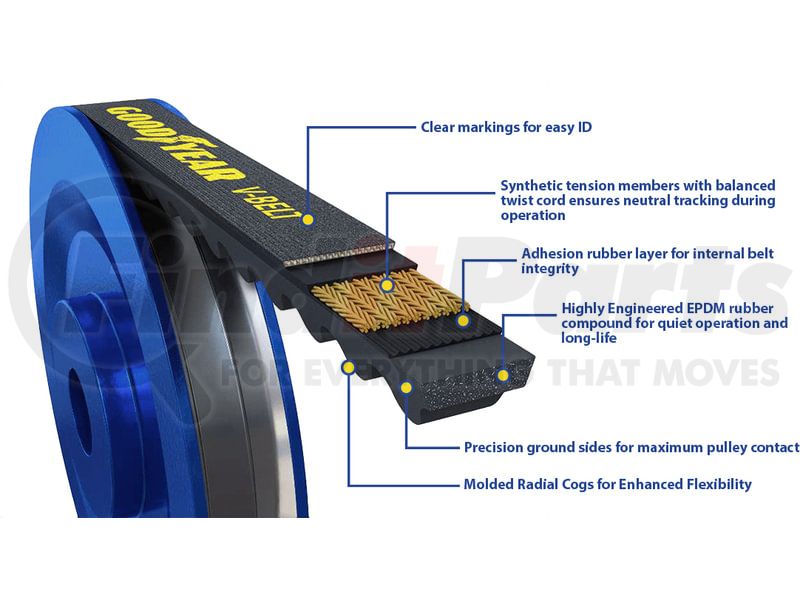

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 17690 Specifications
Product Attributes
| V-belt Profile | 13A |
| Top Width (mm) | 13.5 MM |
| Top Width (in) | 0.531 IN |
| Thickness (mm) | 9 mm |
| Thickness (in) | 0.354 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 17 |
| Outside Circumference | 1762 mm |
| Outside Circumference | 69.37 in |
| Effective Length | 1753 mm |
| Effective Length | 69 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.44 LB |
| Item Weight (kg) | 0.2 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 13A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 17 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.354 IN |
| Thickness | 9 MM |
| Top Cogged | No |
| Top Width | 0.531 in |
| Top Width | 13.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101048 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 17690 Cross References
| Brand | Part Number |
|---|---|
| AC Delco | 17690 |
| ACDELCO | 17690 |
| Bando | RPF3690 |
| CONTINENTAL AG | 17691 |
| CONTINENTAL/CONTITECH | 17691 |
| Continental | 17691 |
| DAYCO | 17690 |
| Dayco | 13A1755C |
| GATES | 9690 |
| Mileage Maker | 17690MK |
| NAPA | 259690 |
| OEM PART NUMBER | C9PZ-8620-GZ, F0HZ-8620-G, 1810681-C91, 1810718-C91, 88GB439P692, 1810680-C1, 1810886-C1, 20804-3602, 870550-C91, D1102-4043, D1102-4045, 88GB354P51, 88GB354P75, 90-1502T1, 9-0205-2, 11502413, V1091007, 5133771, 870549-C1, 5136265, MD34-12, 9433939, 9437286, RE12086, 2044142, 3040337, GT17692, B17691A, 4031642, 9L2526, 662004, 2N3327, 5S5052, 4W8655, 4003M5, B17691, 4W8654, 4W8662, BH1728, E5396, BH276 |
GOODYEAR BELTS 17690 Fits Vehicles
- Suzuki Aerio (2002)
- Ford LTS8000F (1989)
- Ford LA8000F (1991-1992)
- Ford L8000F (1987-1988)
- GMC Brigadier (1981-1988)
- Ford FT900 (1988-1991)
- Ford F-600 LPO (1990-1993)
- Ford LT8000F (1987-1988, 1990-1993)
- Ford LS8000F (1987-1988, 1990-1993)
- Ford B-600 (1990-1993)
- Ford Custom (1967)
- Ford B-700 (1988-1993)
- Ford LN8000 (1991, 1993)
- Ford LN7000 (1987-1993)
- Ford F-800 (1986-1993)
- Ford F-700 (1986-1993)
- Ford F-600 (1986-1993)
- GMC B7 (1993-1998)
- GMC C7500 Topkick (1997-1998)
- GMC C6500 Topkick (1997-1998)
- Chevrolet B60 (1990-1991)
- Chevrolet B7 (1993-1998)
- Chevrolet C60 Kodiak (1992)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
- Chevrolet C70 Kodiak (1990, 1995)
- GMC C6000 (1981-1990)
- GMC C7000 (1980-1990)
- Chevrolet C60 (1981-1982)
- Chevrolet C70 (1980-1990)
- Ford Galaxie 500 (1967)
- Ford Custom 500 (1967)
- Ford Ranch Wagon (1967)
- Ford Galaxie (1967)
- Ford Country Squire (1967)
- Ford Country Sedan (1966-1967)
GOODYEAR BELTS 17690 Customer Reviews
No reviews yet
Be the first to review this product!
GOODYEAR BELTS 17690 Questions & Answers
No questions yet
Be the first to ask a question about this product!
