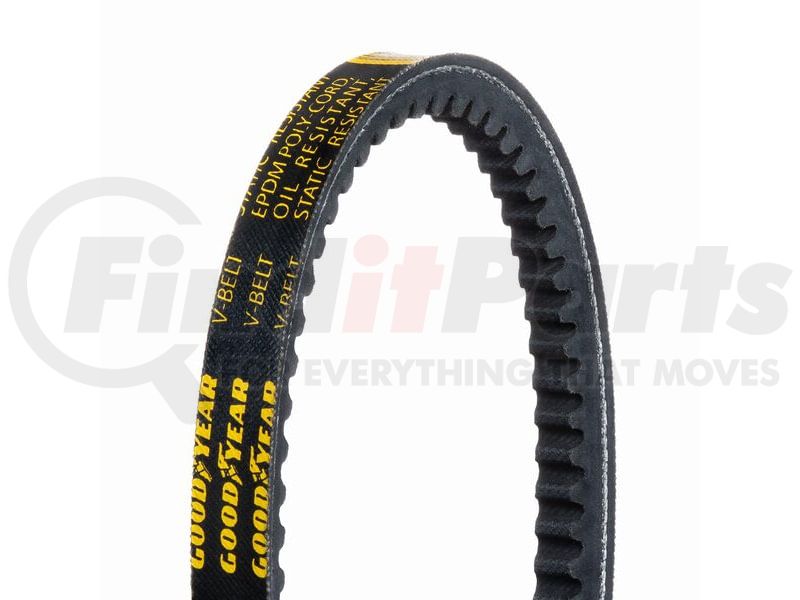

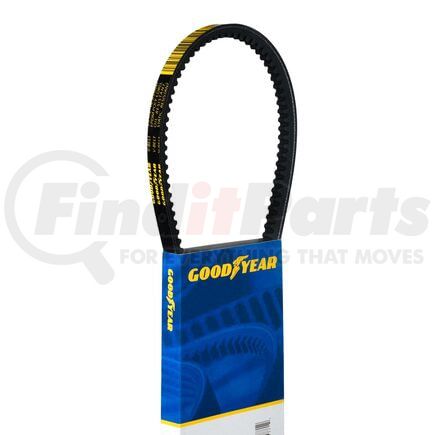

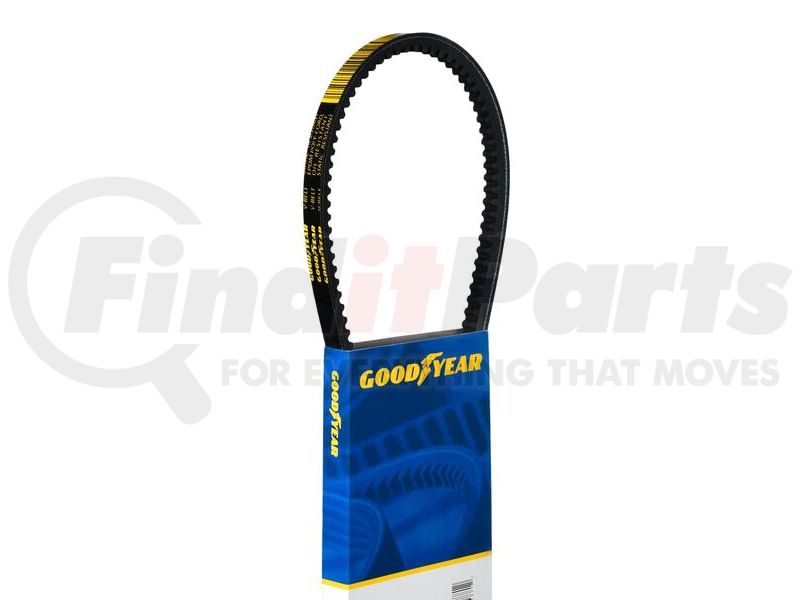

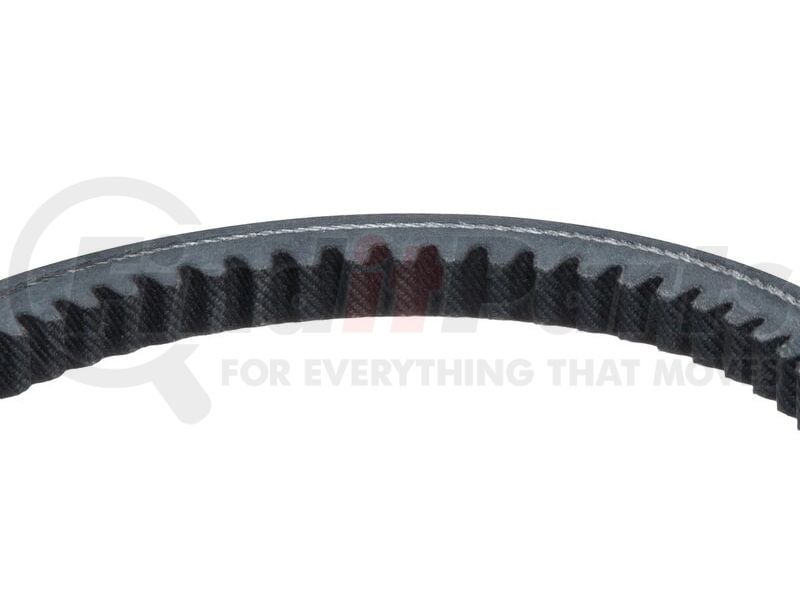

(888) 312-8812 Login SignupGOODYEAR BELTS 17485 Accessory Drive Belt - V-Belt, 48.5 in. Effective Length, EPDM
Tap to view 3 more
$1549
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
GOODYEAR BELTS 17485 Part Description
Manufacturer
Product Description
V-Belt

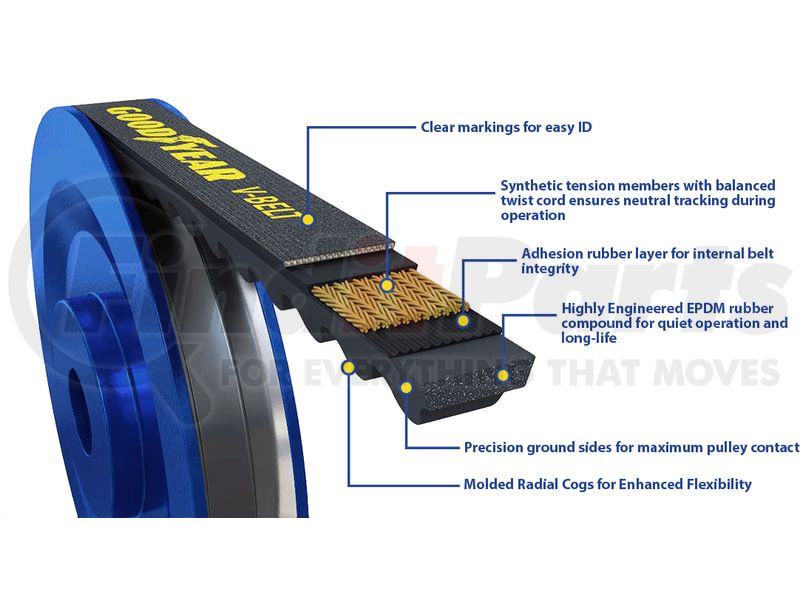

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 17485 Specifications
Product Attributes
| V-belt Profile | 13A |
| Top Width (mm) | 13.5 MM |
| Top Width (in) | 0.531 IN |
| Thickness (mm) | 9 mm |
| Thickness (in) | 0.354 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 17 |
| Outside Circumference | 1241 mm |
| Outside Circumference | 48.87 in |
| Effective Length | 1232 mm |
| Effective Length | 48.5 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.31 LB |
| Item Weight (kg) | 0.14 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 13A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 17 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.354 IN |
| Thickness | 9 MM |
| Top Cogged | No |
| Top Width | 0.531 in |
| Top Width | 13.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199100713 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 17485 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 17485 |
| Armormark | 17485 |
| CONTINENTAL AG | 17484 |
| CONTINENTAL/CONTITECH | 17484 |
| Continental | 17484 |
| DAYCO | 17485 |
| Dayco | 13A1225C, 13A1230 |
| Duralast | 17485 |
| GATES | 9485 |
| Mileage Maker | 17485MK |
| NAPA | 259485 |
| OEM PART NUMBER | F6HT-8A615-ADA, 002.997.98.92, 826F-8620-EFA, D5TE-8A615-AA, F6HT-8620-ADA, 23-10001-067, C6TS-8A615-E, D5TA-8620-DA, D5TE-8620-DA, E0SE-8620-BA, D8AE-8620-AA, 99522-11263, C7TA-8620-U, C8TZ-8620-C, F6HZ-8620-Q, C6TS-8620-G, 877414-R21, 358314-C91, 358334-C91, 865196-R11, 865196-R21, D1102-3595, 3110K1-45, 877414-R1, 877414-R2, 16000196D, 399507-R1, 865196-R1, 865196-R2, V1090978, 1600019D, 189789M1, MB378449, V1090821, 4112465, 1694306, 2080291, 2532786, 2532736, 2532785, 4322606, 9433902, 1602592, A135265, 2155458, 189917, 967190, 967254, 178660, 967127, 9N1323, A38824, 1P3085, 6N3113, MF6475, 7552, 1408 |
| OEM Part Number | 17485 |
| PRIVATE LABEL | 17485 |
GOODYEAR BELTS 17485 Fits Vehicles
- Kenworth C500 (1988-1989)
- Peterbilt 349 (1986-1987)
- International 8300 (1992-1994)
- International F2675 (1987-1989)
- International 2675 (1987-1989)
- International F2575 (1985-1989)
- International F2574 (1985-1989)
- International F2674 (1984-1989)
- International 2574 (1985-1993, 1995-1996, 1998)
- International 2575 (1985-1989)
- Mack MS250P Mid-Liner (1981, 1983-1991)
- Mack MS200P Mid-Liner (1981-1982, 1984-1991)
- Mack CS250P Mid-Liner (1986-1991)
- Mack CS200P Mid-Liner (1986-1991)
- International 2674 (1984-1989, 1991-1999)
- International Cargostar (1984-1985)
- Suzuki Aerio (2002)
- Ford LLS9000 (1996)
- Ford LN9000 (1991-1993)
- Ford LTLS9000 (1996)
- Ford LTLA9000 (1996-1997)
- Ford LT9000 (1997)
- Ford LLA9000 (1992-1996)
- Ford L9513 (1996-1997)
- Ford AT9513 (1997)
- White/GMC WIA (1990-1993)
- White/GMC WCA (1993-1995)
- Sterling Truck AT9522 (1999-2000)
- Sterling Truck LT9522 (1999-2000)
- Sterling Truck LT9513 (1999-2001)
- Sterling Truck LT9511 (1999-2000)
- Sterling Truck LT9501 (1999-2000)
- Sterling Truck L9513 (1999-2000)
- Sterling Truck L9511 (1999-2001)
- Sterling Truck AT9513 (1999-2001)
- Sterling Truck A9522 (1999)
- Sterling Truck A9513 (1999-2000)
- Sterling Truck A9500 (1999-2001)
- Sterling Truck L9500 (1999-2002)
- Sterling Truck LT9500 (1999-2001)
- Sterling Truck AT9500 (1999-2002)
- Sterling Truck Acterra 5500 (2001)
- Dodge A100 (1965-1966)
- Hudson Hornet (1957)
- Hudson Wasp (1955)
- American Motors Ambassador (1958)
- Dodge A100 Truck (1965-1966)
- Nissan Maxima (1981-1983)
- Nissan 720 (1982-1983)
- Nissan 810 (1981)
- Mercury Monarch (1978)
- Ford Granada (1978)
- Dodge Ram 3500 (1996)
- Dodge Ram 2500 (1996)
- Dodge B350 (1992)
- Dodge B250 (1992)
- Dodge B150 (1992)
- Subaru Standard (1985)
