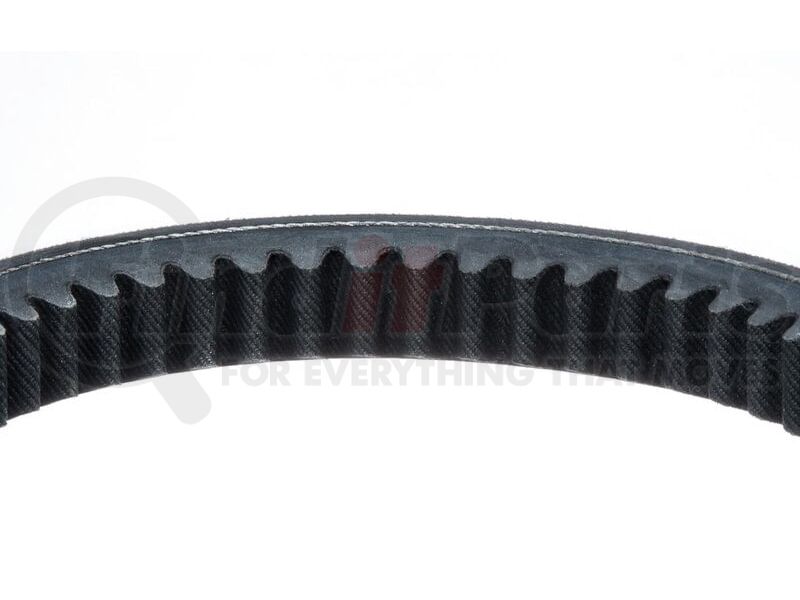

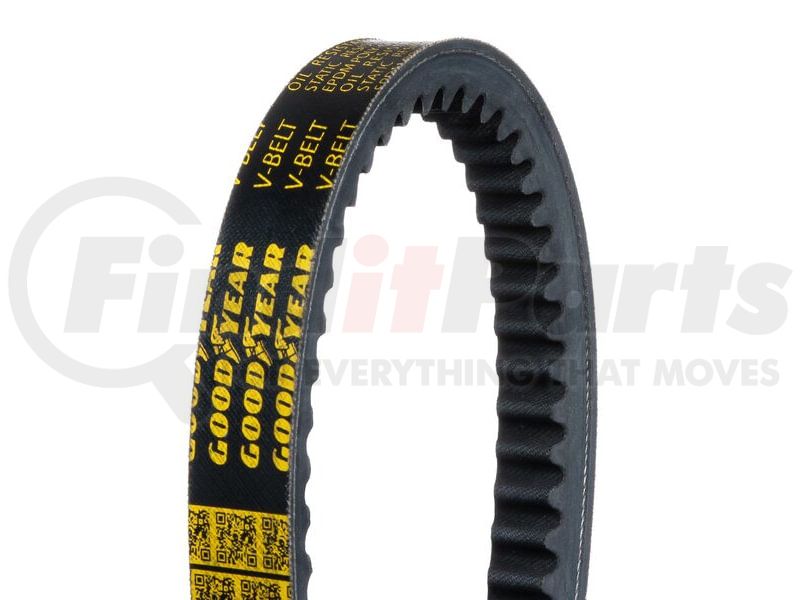

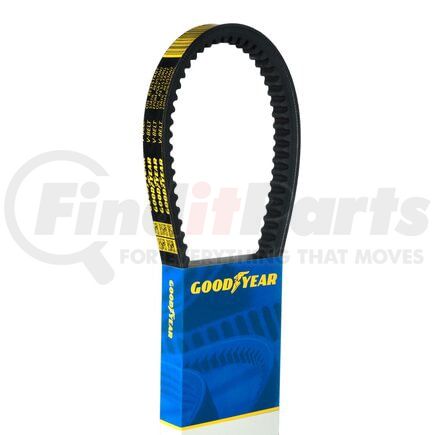

(888) 312-8812 Login SignupGOODYEAR BELTS 28510 Accessory Drive Belt - V-Belt, 51 in. Effective Length, EPDM
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GOODYEAR BELTS 28510 Part Description
Manufacturer
Product Description
V-Belt

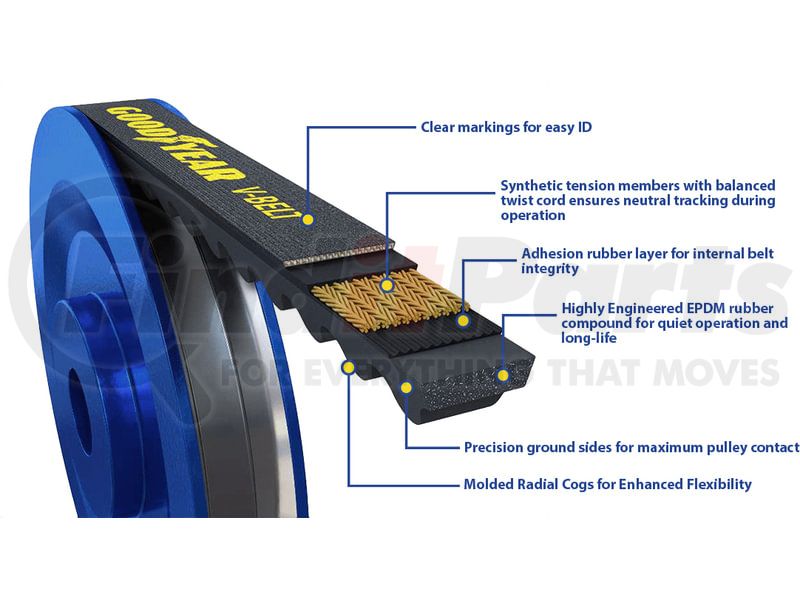

Features & Benefits
- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 28510 Specifications
Product Attributes
| V-belt Profile | 20A |
| Top Width (mm) | 21.5 MM |
| Top Width (in) | 0.846 IN |
| Thickness (mm) | 12.5 mm |
| Thickness (in) | 0.492 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 28 |
| Outside Circumference | 1310 mm |
| Outside Circumference | 51.57 in |
| Effective Length | 1295 mm |
| Effective Length | 51 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.77 LB |
| Item Weight (kg) | 0.35 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 20A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 28 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.492 IN |
| Thickness | 12.5 MM |
| Top Cogged | No |
| Top Width | 0.846 in |
| Top Width | 21.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199102236 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 28510 Cross References
| Brand | Part Number |
|---|---|
| Armormark | 20A1295 |
| CONTINENTAL AG | 28513 |
| CONTINENTAL/CONTITECH | 28513 |
| Cartek | CK28510 |
| Continental | 28513 |
| Cummins | 3002864 |
| DAYCO | 28510 |
| Dayco | 20A1295 |
| GATES | TR28510 |
| OEM PART NUMBER | D7HA-8A615-EA, D7HA-8620-KA, D8PZ-8620-C, 88GB442P512, 20804-0026, 479331-C91, D1102-5849, 479327-C1, 479329-C1, V1090151, 3002864, 3040392, GT28513, 1BU0510, GTFL447, 70001 |
| OEM Part Number | 20A1295 |
GOODYEAR BELTS 28510 Fits Vehicles
- Autocar C / DC (1981-1984)
- Western Star 4900E (1997-2001)
- Western Star 4900 (1981-1990, 1993-2001)
- Western Star 4800 (1981-1990)
- Kenworth K100 (1985)
- Kenworth 548CH (1985)
- Kenworth W900 (1981-1986)
- Kenworth C500 (1981-1985)
- Peterbilt 359 (1981-1986)
- Suzuki Aerio (2002)
