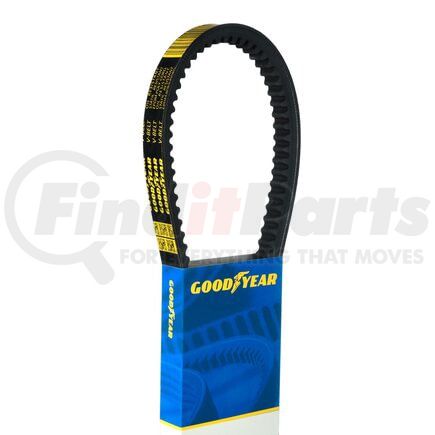

(888) 312-8812 Login SignupGOODYEAR BELTS 28480 Accessory Drive Belt - V-Belt, 48 in. Effective Length, EPDM
Tap to view 3 more
$3699
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
GOODYEAR BELTS 28480 Part Description
Manufacturer
Product Description
V-Belt
Features & Benefits

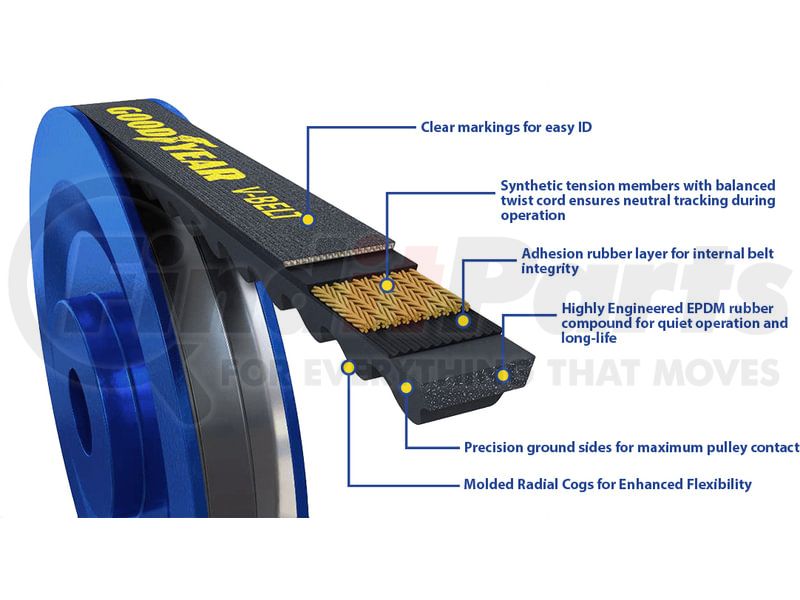

- Meets or Exceeds OEM Specifications
- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 28480 Specifications
Product Attributes
| V-belt Profile | 20A |
| Top Width (mm) | 21.5 MM |
| Top Width (in) | 0.846 IN |
| Thickness (mm) | 12.5 mm |
| Thickness (in) | 0.492 In |
| Rib Angle | 36⁰ DD |
| Profile Series | 28 |
| Outside Circumference | 1234 mm |
| Outside Circumference | 48.57 in |
| Effective Length | 1219 mm |
| Effective Length | 48 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.73 LB |
| Item Weight (kg) | 0.33 KG |
| Belt Material | EPDM |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 20A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 28 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.492 IN |
| Thickness | 12.5 MM |
| Top Cogged | No |
| Top Width | 0.846 in |
| Top Width | 21.5 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199102182 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 28480 Cross References
| Brand | Part Number |
|---|---|
| Armormark | 20A1220 |
| CONTINENTAL AG | 28483 |
| Cartek | CK28480 |
| Cummins | 178620, 3045188 |
| DAYCO | 28480 |
| Dayco | 20A1220 |
| GATES | TR28480 |
| OEM PART NUMBER | 23-10001-044, 23-12160-480, C4TE-8620-Z, D1102-5766, 543042-C1, MA41-2001, 700804-A, 15023774, 5995211A, V1091048, 48042-DB, 1708882, 3040389, 3045188, 10024A7, 5145730, GT28483, 700804, GTFL360, 960826, 178620, 45935A |
| OEM Part Number | 20A1220 |
GOODYEAR BELTS 28480 Fits Vehicles
- Freightliner FLB (1994-1996)
- Freightliner FLA086 (1989-1994)
- Freightliner FLD120 (1988-1994, 1996)
- Freightliner FLT086 (1981-1988)
- Freightliner FLC112 (1985-1992, 1994-1996)
- Freightliner FLC120 (1981-1988)
- Peterbilt 352 (1981)
- Peterbilt 379 (1987-1994)
- Peterbilt 377 (1987-1994)
- Peterbilt 362 (1981-1996)
- Peterbilt 357 (1994-1997)
- Peterbilt 378 (1988-1994)
- Kenworth W900 (1993-1996)
- Peterbilt 282 (1967-1980)
- International 9200 SBA (1995-1996)
- International 8100 (1995)
- International 9600 (1993)
- International 9700 (1992-1993)
- International 9400 (1992-1993, 1995)
- International 8300 (1990-1994)
- International 8200 (1990-1995)
- International 9300 (1988, 1992-1993, 1995-1996)
- International F2276 S (1983-1985)
- International 2276 S (1983-1985)
- Suzuki Aerio (2002)
- Cadillac Commercial Chassis (1946-1948)
- Cadillac Series 63 (1941)
- Cadillac Series 75 (1941)
- Cadillac Series 60 (1941)
- Cadillac Series 67 (1941)
- Cadillac Series 61 (1941, 1946-1948)
- Cadillac Series 75 Fleetwood (1946-1948)
- Cadillac Series 60 Special Fleetwood (1946-1948)
- Cadillac Series 62 (1941, 1946-1948)
