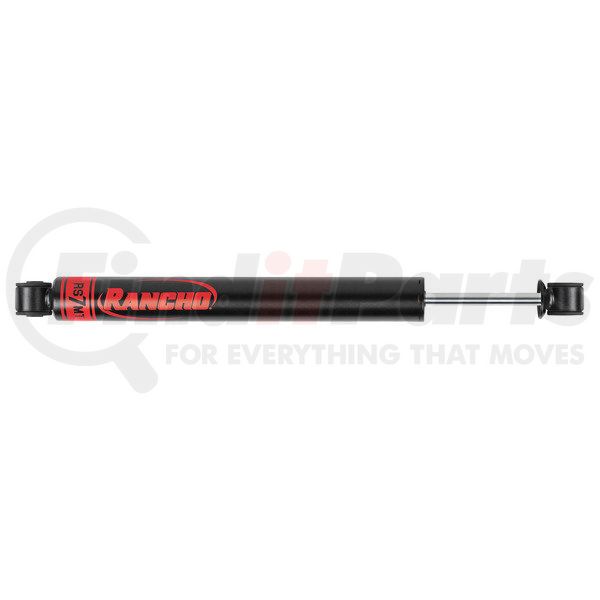

(888) 312-8812 Login SignupRANCHO RS77254 RS7MT Suspension Shock Absorber
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RANCHO RS77254 Part Description
Manufacturer
Product Description
RS7MT Suspension Shock Absorber
Features & Benefits
- PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive turning based on application requirements for precision handling and performance on- and off-road
- PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road
- STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube
- HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade
- SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
- KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
- BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961
- BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS77254 Specifications
Product Attributes
| Compressed Length | 18.82 IN |
| Travel Length | 10.78 in |
| Rod Diameter | 14 MM |
| Body Color | Black |
| Finish | Painted |
| Type | Telescopic |
| Internal Construction Type | Single Tube |
| Grade Type | Performance |
| Extended Length | 29.6 in |
| Boot Included | No |
| Gas Charged | Yes |
| Body Diameter | 1.97 IN |
| Adjustable Damping | No |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Upper Mount Code | L1 |
| Lower Mount Code | LS26 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size | 46 MM |
| Internal Rebound Bumper | Yes |
| Body Length | 17.83 IN |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | None |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 478 MM |
| Extended Length | 751.8 MM |
| Travel Length | 273.8 MM |
| Shock Stroke | 10.78 IN |
| Shock Stroke | 273.8 MM |
| Lower Mount Code | LS26 |
| Upper Mount Code | L1 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Mounting Hardware Included | No |
| Body Diameter | 50 MM |
| Cylinder Outside Diameter | 1.97 IN |
| Cylinder Outside Diameter | 50 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Rod Diameter | 0.5511811023622047 IN |
| Shaft Material | Chromed |
| Shock Absorber Bore Size | 1.8110236220472442 IN |
| Internal Rebound Spring | No |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | No |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop (Eyelet) Bushing |
| Shaft Material | Chromed |
Additional Information
| Country of Origin (Primary) | PL |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703012058 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
RANCHO RS77254 Cross References
| Brand | Part Number |
|---|---|
| BILSTEIN | 24-186025 |
| Bilstein | 24185325, 24185981, 24062466 |
| FOX Offroad Shocks | 98024647 |
| Ford | 7C3Z18125JBA, 7C3Z18125JCA, 7C3Z18125JDA, 7C3Z18125JEA, 7C3Z18125K, 7C3Z18125KBA, 7C3Z18125KCA, 7C3Z18125KDA, BC3Z18125AD, BC3Z18125AE, BC3Z18125AF, BC3Z18125AJ, BC3Z18125AL, BC3Z18125L, BC3Z18125M, BC3Z18125R, FC3Z18125B |
| KYB | 555056, 565124 |
| Skyjacker | M9560 |
RANCHO RS77254 Fits Vehicles
- Ford F-450 Super Duty (2008-2016)
- Ford F-350 Super Duty (1999-2016)
- Ford F-250 Super Duty (1999-2016)
