(888) 312-8812 Login SignupNEOTEK 1065017GF Disc Brake Rotor - Hat Style, For Hydraulic Brakes, 15.01 in. Outside Diameter, Vented
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NEOTEK 1065017GF Part Description
Manufacturer
Product Description
Premium Fully Coated Rotor
Application Summary
- 1983-1984 International 1824
- 1983-1989 International 1854
- 1996-1997 International 3000
- 1996-1997 International 3400
- 1992-1997 International 3600
- 1990-1994 International 3700
- 1990-1997 International 3800
- 1990-1994 International 4600
- 1990-1997 International 4700
- 1990-1997 International 4900
- 1986-1997 International 1652SC
- 1990-1997 International 1652UPS
- 1992-1994 International 3900FC
- 1990-1994 International 4600LP
- 1990-1990 International 4600UH
- 1990-1997 International 4700LP
- 1995-1997 International 4700LPX
- 1979-1981 International F1924
- 1979-1989 International F1954
- 1996-1997 International Genesis RE
- 1987-1990 International M1400 Metro II
- 1987-1990 International M1600 Metro II
- 1983-1985 International S1824
- 1983-1989 International S1853
- 1987-1989 International S1853FC
- 1983-1989 International S1854
- 1980-1982 International S1924
- 1980-1982 International S1925
- 1981-1989 International S1954
- 1981-1989 International S1955
Features & Benefits
- Best-in-class hat-type brake rotor that meets the demands of hydraulic brakes
- Manufactured with high carbon G11H18 SAE-standard material for maximum braking performance
- 100% mill balanced to a specification that is tighter by over 50% than industry-standard rotors
- Non-braking surfaces are provided with environmentally friendly coating
- CNC fine-turn finish for the same appearance as OE part, while minimizing surface finish roughness
- Exposed surfaces are provided with dry rust inhibitor for outstanding rust resistance
- Showcases OE-level design, vane configuration, and product weight
- Shrink-wrapped and comes right out of the box ready for installation
Neotek Premium Brake Rotor
Machined to OE/OES level tolerances, the Neotek Premium brake rotor guarantees consistent quality and peak efficiency. It is crafted from premium raw materials and under tightly controlled manufacturing operations in the company’s world-class facility to ensure excellent workmanship and reliability. Each rotor is tensile-strength and hardness tested to meet G11H18 standards.
NEOTEK 1065017GF Specifications
Product Attributes

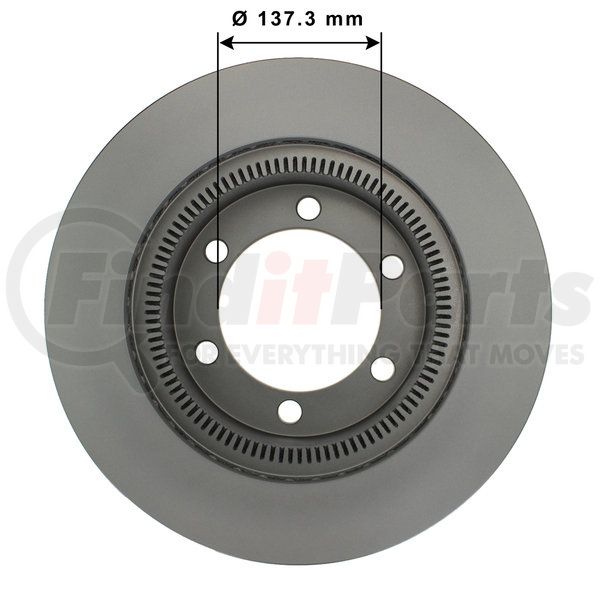

| Mounting Bolt Hole Circle Diameter | 6.76 IN |
| Hardware Included | No |
| Solid Or Vented Type Rotor | Vented |
| ABS Tone Ring Included | Yes |
| Rust Resistant Coating | Yes |
| Center Hole Diameter | 5.41 IN |
| Mounting Bolt Hole Diameter | 0.76 IN |

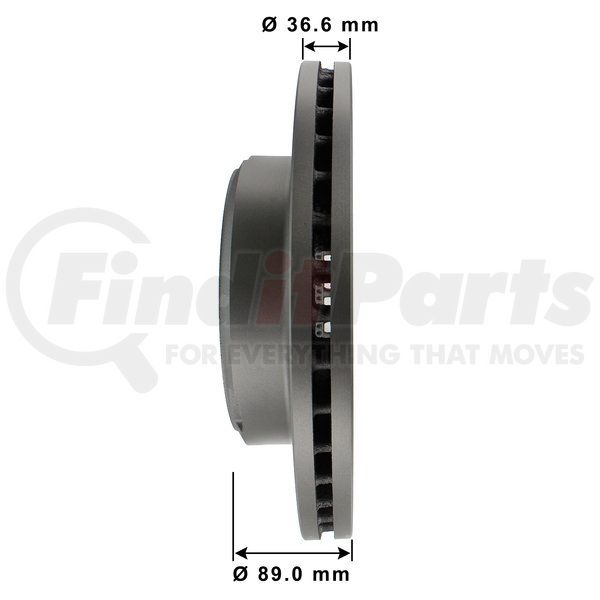

| Height | 3.5 IN |
| Surface Type | Smooth |
| Mounting Bolt Hole Quantity | 6 |
| Construction | Hat |

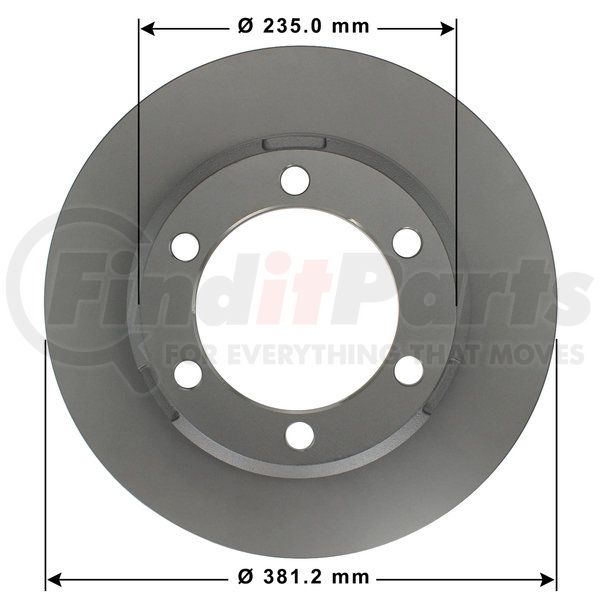

| Outside Diameter | 15.01 IN |
| Nominal Thickness | 1.44 IN |
| Discard Thickness | 1.32 IN |
| Brake Type | Hydraulic |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00875514007636 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
NEOTEK 1065017GF Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | 18A663 |
| ACDelco | 18A663 |
| AIMCO | 5606 |
| BENDIX | PRT1475, 141475 |
| CENTRIC | 120.83015, 12083015 |
| Centric Parts | 120.83015, 12083015 |
| DANA | W19WA102 |
| DAYTON | 123572 |
| DURABRAKE | 72261A |
| DURANGO | BR5606 |
| EUCLID | E14572, E6115 |
| FORMULA BLUE | E12588020 |
| FREIGHTLINER | PFR38108930 |
| Formula Blue Hydraulic Brake Parts | E12588020 |
| GUNITE | D6194AM, D6194M |
| INTERNATIONAL | 1646770C1, 2505097C1, BXE12588020 |
| International Harvester (IHC) | BXE12588020 |
| MERITOR | 123572 |
| NAPA | 86835, 86461 |
| NAVISTAR | 1646770C1, 1646770C2, 2505097C1 |
| NAVISTARPFC | PFH38108930 |
| Navistar | PFH38108930 |
| PFC | 38108930 |
| RAYBESTOS | 8523 |
| VOLVO | BWE12588020 |
| WAGNER | BD125362, BD126392 |
| WEBB | 54770P65, 54770P98, 54776P98, 54776P65 |
| WEBB (LIFE SHIELD) | 54770F65, 54770F98, 54776F65, 54776F98 |
| WEMC | 1700115S1 |
| Webb | 54770F65, 54770F98, 54776F65, 54776F98 |
NEOTEK 1065017GF Customer Reviews
No reviews yet
Be the first to review this product!
NEOTEK 1065017GF Manufacturer Information
Experience the difference of better pedal feel and more controlled stops with Neotek®. Since its inception in 1983, Neotek has been supplying the OES and US aftermarket with top-quality brake products that strictly follow industry standards. For over 30 years, this global leader in the manufacture and distribution of brake drums and rotors guarantees engineering expertise and 99% vehicle coverage. Neotek’s fulfillment and engineering center is situated in its headquarters at Memphis, TN. This company takes pride in its various capabilities, such as award-winning customer service, category management, Electronic Data Interchange (EDI), customer-specific material options, collaborative planning and forecasting, and many others. All these capabilities contribute to the company’s growth and its proficiency in developing and producing Neotek brake products that ensure safe and smooth braking and customer satisfaction.
