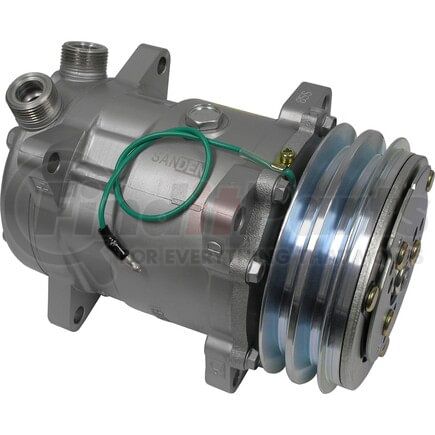

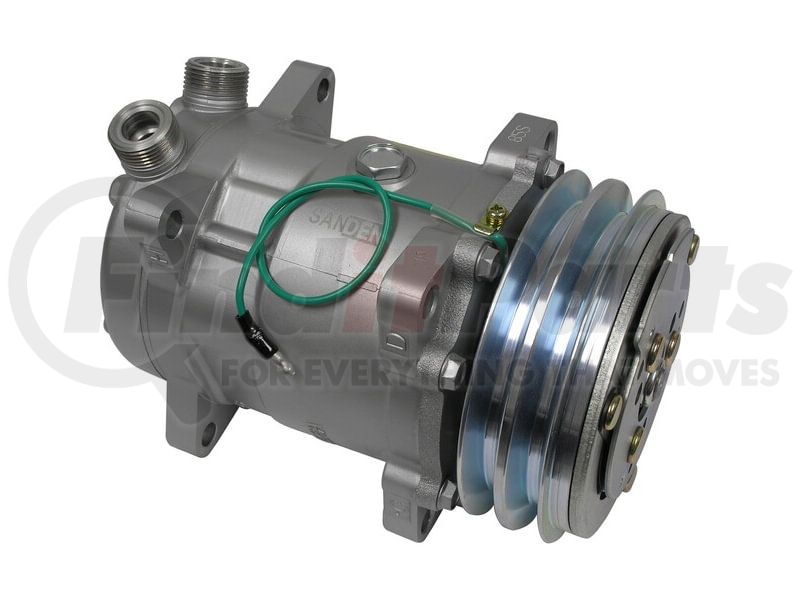

(888) 312-8812 Login SignupUNIVERSAL AIR CONDITIONER (UAC) CO9505 A/C Compressor -- Sanden SD508 Compressor Assembly
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
UNIVERSAL AIR CONDITIONER (UAC) CO9505 Part Description
UNIVERSAL AIR CONDITIONER (UAC) CO9505 Specifications
Product Attributes
| Displacement | 131 |
| Grooves | 2 |
| Connector | 1 Wire Male Bullet |
| Rotation | CW |
| Refrigerant | R12 |
| Voltage | 24 |
| Compressor Type | SD508 |
| Clocking | 0.5 |
| Cylinder Head | C |
| Pulley Diameter (mm) | 132 |
| Gauge Line (mm) | 40 |
| Compressor Mount | Ear 8 Long |
| Style | HD |
| Ear ID | 83.3 |
| Gauge Line to End Groove | 39.55 |
| Gauge Line to First Groove | 23.8 |
| Head Port Style | 1X14 |
| Oil Qty (cc) | 207 |
| Port Angle | V |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00711307097289 |
UNIVERSAL AIR CONDITIONER (UAC) CO9505 Cross References
| Brand | Part Number |
|---|---|
| GLOBAL PARTS DISTRIBUTORS | 7511563 |
