(888) 312-8812 Login SignupCENTRIC 125.33098 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
MSRP: $115.01
$9849
Save $16.52
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
CENTRIC 125.33098 Part Description
Manufacturer
Product Description

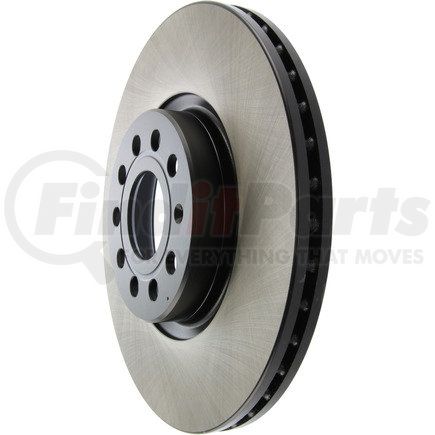

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.33098 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 5 |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] Mm | 144.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] In | 5.693 |
| Weight [cntrc] Lbs | 18.800 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.550 |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.000 MM |
| Nominal Thickness | 0.976 IN |
| Nominal Thickness | 24.800 MM |
| Hat Finish | Painted |
| Overall Height | 49.300 MM |
| Overall Height | 1.941 IN |
| Outside Diameter | 312.000 MM |
| Outside Diameter | 12.283 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.559 IN |
| Center Hole Diameter | 65.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.100 MM |
| Mounting Bolt Hole Circle Diameter | 4.413 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.400 MM |
| Stud/Lug Hole Diameter | 0.606 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890527398 |
CENTRIC 125.33098 Cross References
| Brand | Part Number |
|---|---|
| N/A | 125.33098, BD126476, BD180424, 425158, BR90046802, 45112GT, 171019Z1W, 561615301B, 45112DSR, 1407-75711, YH145639, 45112DSL, 45112, 25665, 09977210, 45112G, 1K0615301AA, L3CD615301, 5Q0615301F, 561 615 301 A, 561615301, 561615301A, 5C0615301B, 5C0615301E, 8P0698302A, 8P0698302B, JZW615301H, 8V0698302B, 1K0615301, 5QM615301A, 980383P, 880383, 34279, DDF1305, DF4464, DF4464S, 90074053 |
| RAYBESTOS | 980383, 980383FZN, 980383R, 980383R2 |
| Raybestos Brakes | 980383FZN, 980383R, 980383 |
| WAGNER | BD60402, BD180424E, BD180424 |
CENTRIC 125.33098 Fits Vehicles
- Audi TTS Quattro (2009-2015)
- Audi TT RS Quattro (2012-2013)
- Volkswagen Golf R (2012-2013, 2015-2017)
- Audi S3 (2015-2020)
- Volkswagen Jetta City (2007-2009)
- Volkswagen R32 (2008)
- Volkswagen Rabbit (2006-2009)
- Volkswagen Golf SportWagen (2010)
- Seat Altea (2006, 2010-2012)
- Volkswagen Multivan (2013)
- Volkswagen Taos (2021-2022)
- Volkswagen Passat CC (2009-2012)
- Seat Ateca (2017-2019)
- Audi A3 Quattro (2006-2013, 2015-2020, 2022)
- Volkswagen Caddy (2014-2019)
- Volkswagen Tiguan Limited (2017-2018)
- Volkswagen Bora (2005-2010)
- Audi A3 Sportback e-tron (2016-2018)
- Seat Leon (2006-2012, 2016-2018)
- Seat Freetrack (2010-2014)
- Audi TT (2008-2014)
- Volkswagen Golf (2014-2018)
- Volkswagen Tiguan (2009-2018)
- Volkswagen Passat (2006-2010, 2012-2022)
- Volkswagen Jetta (2005-2018, 2022-2023)
- Volkswagen Eos (2007-2016)
- Volkswagen Beetle (2012-2017)
- Audi A3 (2006-2020, 2022)
- Audi Q2 (2018-2019)
- Volkswagen Arteon (2019-2023)
- Audi Q3 Quattro (2015-2018)
- Audi Q3 (2013-2021)
- Volkswagen GTI (2006-2020)
- Audi TT Quattro (2008-2023)
- Volkswagen CC (2009-2017)
