CENTRIC 120.34030 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

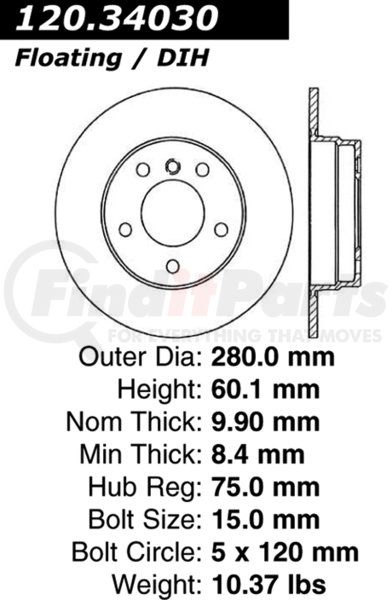

CENTRIC 120.34030 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.710 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 10.370 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 8.400 MM |
| Discard Thickness | 0.331 IN |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Painted |
| Overall Height | 60.100 MM |
| Overall Height | 2.366 IN |
| Outside Diameter | 11.024 IN |
| Outside Diameter | 280.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 161.000 MM |
| Nominal Drum Diameter | 6.339 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.000 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.000 MM |
| Stud/Lug Hole Diameter | 0.591 IN |
CENTRIC 120.34030 Cross References
CENTRIC 120.34030 Fits Vehicles
- BMW 320i (1993)
- BMW 328is (1996-1997)
- BMW 325is (1992-1995)
- BMW 325i (1992-1995)
- BMW 318is (1992-1999)
- BMW 318i (1992-1998)
