ATE BRAKE PRODUCTS 430175 Part Description
Manufacturer
Product Description

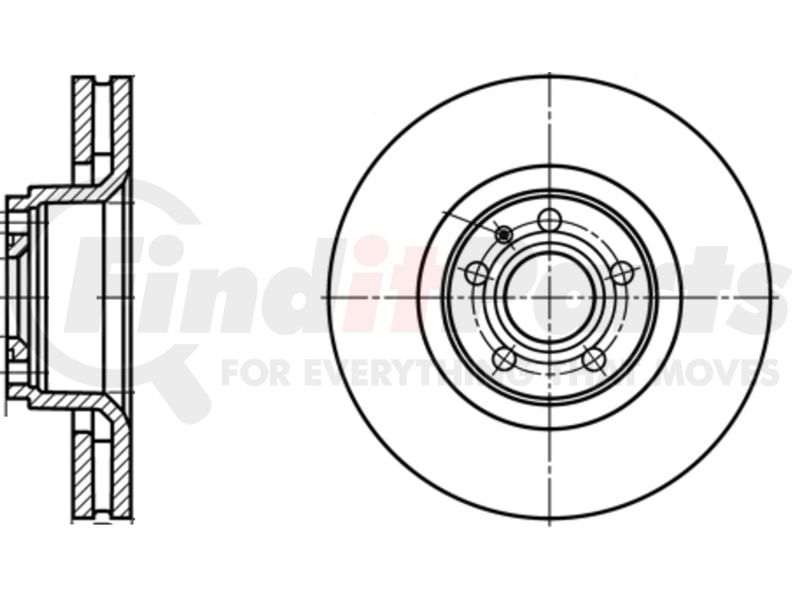

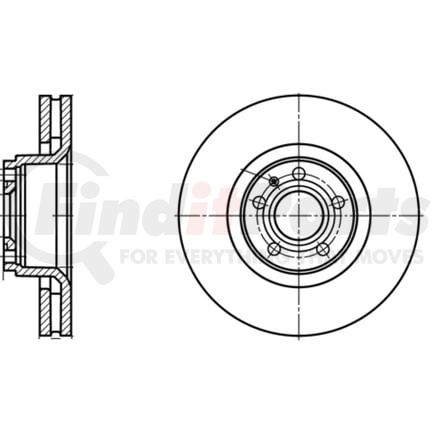

ATE Original Front Disc Brake Rotor 430175 for Audi
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 430175 Specifications
Product Attributes
| Outside Diameter | 321.00 MM |
| Inside Diameter | 144.80 MM |
| Nominal Thickness | 30.00 MM |
| Discard Thickness | 28.00 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 59.70 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 112.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.30 MM |
| Center Hole Diameter | 68.00 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | DE |
| EU | |
| UPC | 04006633220859 |
ATE BRAKE PRODUCTS 430175 Cross References
| Brand | Part Number |
|---|---|
| Bendix | 562265B |
| Bosch | 0 986 479 300 |
| Brembo | 09.9534.11, 09.9534.14, 09.C895.11 |
| CENTRIC | 125.33111 |
| Delphi | BG3939 |
| Febi-Bilstein | 26647 |
| Ferodo America | DDF1277, DDF1277C, DDF1277C-1 |
| Hella | 54323, 54323PRO, 8DD 355 111-131, 8DD 355 111-141 |
| Jurid | 562265J, 562265JC |
| Qualis | 45395 |
| Raybestos Brakes | 980466 |
| TRW | DF4358, DF4358S |
| Textar | 92132300, 92132305, 98200 1323 0 1, 98200 1323 0 1 PRO |
| Valeo | 197199, 297199 |
| Volkswagen | 4F0615301E |
| Wagner Brake | BD180099 |
| Zimmermann | 100.3318.00, 100.3318.20, 100.3318.50, 100.3318.52 |
ATE BRAKE PRODUCTS 430175 Fits Vehicles
- Audi A6 (2006-2011)
- Audi A6 Quattro (2005-2008)
