ATE BRAKE PRODUCTS 430240 Part Description
Manufacturer
Product Description

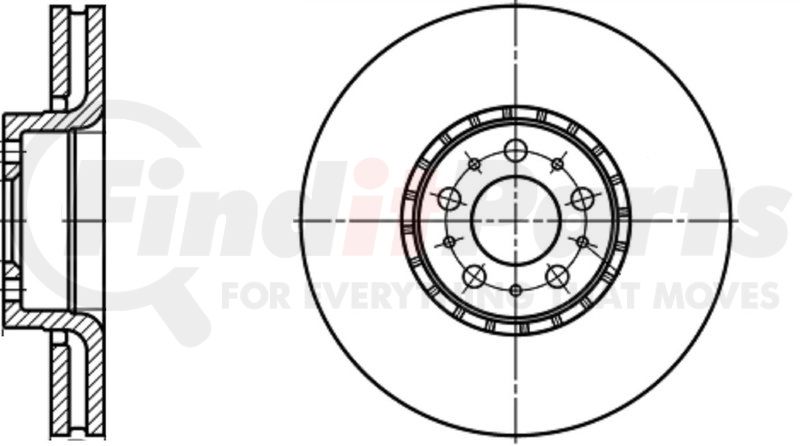

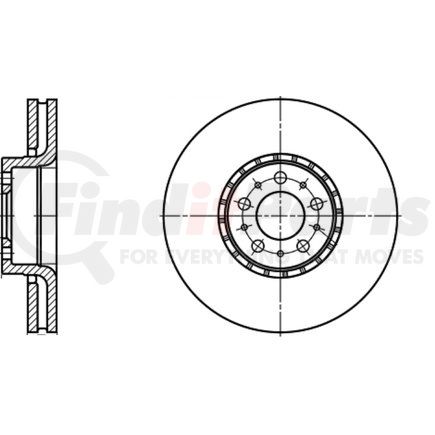

ATE Original Front Disc Brake Rotor 430240 for Volvo
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 430240 Specifications
Product Attributes
| Outside Diameter | 327.50 MM |
| Inside Diameter | 140.00 MM |
| Nominal Thickness | 30.00 MM |
| Discard Thickness | 27.00 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 51.30 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 108.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.50 MM |
| Center Hole Diameter | 68.00 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | DE |
| EU | |
| UPC | 04006633418386 |
ATE BRAKE PRODUCTS 430240 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0 986 479 202, 52011561 |
| Brembo | 09.D725.11 |
| Hella | 8DD 355 125-581 |
| Qualis | 45464 |
| Raybestos Brakes | 981050 |
| Textar | 92126703, 92284105 |
| Volvo | 31262489, 312624890, 31400893, 314008930 |
| Wagner Brake | BD180480 |
| Zimmermann | 610.3719.20, 610371920 |
ATE BRAKE PRODUCTS 430240 Fits Vehicles
- Volvo XC90 (2003-2014)
