ATE BRAKE PRODUCTS 428162 Part Description
Manufacturer
Product Description

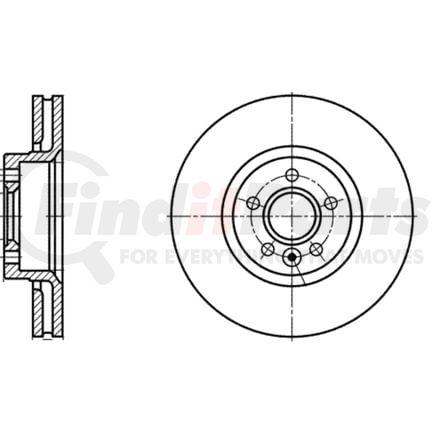

ATE Original Front Disc Brake Rotor 428162 for Land Rover, Volvo
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 428162 Specifications
Product Attributes
| Outside Diameter | 316.00 MM |
| Inside Diameter | 144.00 MM |
| Nominal Thickness | 28.00 MM |
| Discard Thickness | 26.00 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 52.00 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 108.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.00 MM |
| Center Hole Diameter | 63.50 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | DE |
| EU | |
| UPC | 04006633319997 |
ATE BRAKE PRODUCTS 428162 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0 986 479 620, 0 986 479 C19 |
| Brembo | 09.A426.10, 09.A426.11, 09.A426.1X |
| Delphi | BG4123 |
| Ferodo America | DDF1607, DDF1607-1 |
| Hella | 54623, 8DD 355 114-091, 8DD 355 118-891 |
| Land Rover | LR000470, LR027107 |
| Qualis | 45462 |
| Raybestos Brakes | 980642 |
| TRW | DF6185S |
| Textar | 92162300, 92162303, 98200 1623 0 1 |
| Valeo | 197616 |
| Volvo | 30769061, 307690610, 31400764, 314007640 |
| Wagner Brake | BD180039 |
| Zimmermann | 30769061A, 610.3711.20, 610.3711.52 |
ATE BRAKE PRODUCTS 428162 Fits Vehicles
- Volvo S60 Cross Country (2016-2018)
- Volvo V60 Cross Country (2015-2018)
- Volvo V60 (2015-2018)
- Volvo S60 (2011-2018)
- Volvo V70 (2008-2010)
- Volvo XC70 (2008-2016)
- Volvo S80 (2007-2016)
- Land Rover LR2 (2008-2015)
