ATE BRAKE PRODUCTS 424197 Part Description
Manufacturer
Product Description

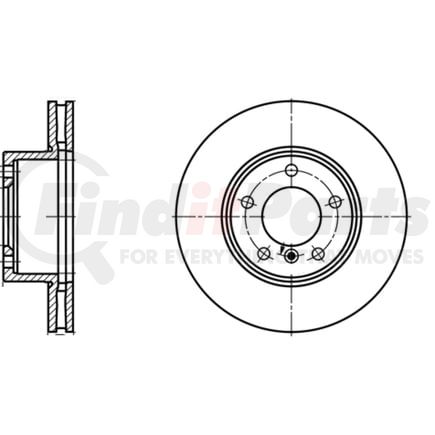

ATE Original Front Disc Brake Rotor 424197 for BMW
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 424197 Specifications
Product Attributes
| Outside Diameter | 300.00 MM |
| Inside Diameter | 152.00 MM |
| Nominal Thickness | 24.00 MM |
| Discard Thickness | 22.40 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 73.50 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 120.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.50 MM |
| Center Hole Diameter | 79.00 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | CZ |
| EU | |
| UPC | 04006633293372 |
ATE BRAKE PRODUCTS 424197 Cross References
| Brand | Part Number |
|---|---|
| Aimco | 34312 |
| BMW | 34116764643, 34116772669, 34116854998 |
| Bosch | 0 986 479 216, 15010125 |
| Brembo | 09.A295.10, 09.A295.11, 09.A295.14, 09.C649.11 |
| CENTRIC | 125.34077 |
| Delphi | BG3998 |
| Febi-Bilstein | 24468 |
| Ferodo America | DDF1536, DDF1536C |
| Hella | 54377, 54377PRO, 8DD 355 111-911, 8DD 355 111-921 |
| Qualis | 42411 |
| Raybestos Brakes | 980482 |
| TRW | DF4459, DF4459BP |
| Textar | 92137700, 92137703, 92137705, 98200 1377 0 1, 98200 1377 0 1 PRO |
| Valeo | 197234 |
| Wagner Brake | BD180026 |
| Zimmermann | 150.3427.00, 150.3427.20, 150.3427.50, 150.3427.52 |
ATE BRAKE PRODUCTS 424197 Fits Vehicles
- BMW 128i (2008-2013)
- BMW 328xi (2007)
- BMW 328i (2007)
- BMW 325xi (2006)
- BMW 325i (2006)
