(888) 312-8812 Login SignupATE BRAKE PRODUCTS 424174 ATE Original Front Disc Brake Rotor 424174 for Jaguar
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ATE BRAKE PRODUCTS 424174 Part Description
Manufacturer
Product Description

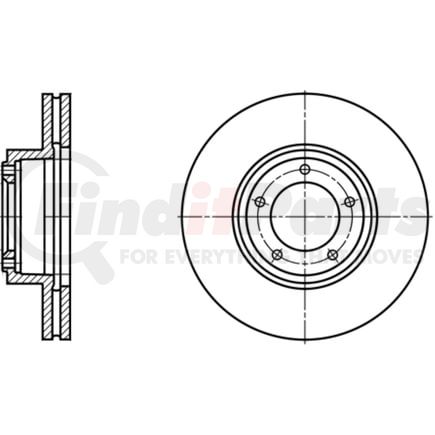

ATE Original Front Disc Brake Rotor 424174 for Jaguar
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 424174 Specifications
Product Attributes
| Outside Diameter | 284.00 MM |
| Inside Diameter | 138.50 MM |
| Nominal Thickness | 24.20 MM |
| Discard Thickness | 22.90 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 60.50 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 111.10 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 11.50 MM |
| Center Hole Diameter | 82.60 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | IT |
| EU | |
| UPC | 04006633113298 |
ATE BRAKE PRODUCTS 424174 Cross References
| Brand | Part Number |
|---|---|
| Bendix | 561206B |
| Bosch | 0 986 478 686 |
| Brembo | 09.3825.10 |
| Delphi | BG2507 |
| Ferodo America | DDF164, DDF164-1 |
| Hella | 51404, 8DD 355 100-911 |
| Jaguar | C41942, CAC2647, CAC7842, JLM727, JLM729, JLM776 |
| Jurid | 561206J |
| Qualis | 3479 |
| Raybestos Brakes | 96622 |
| TRW | DF1872, DF7310S, DF7311S |
| Textar | 92031600, 98200 0316 0 1 |
| Wagner Brake | BD125075 |
| Zimmermann | 290.2251.00, 290.2251.20, 290.2251.50 |
ATE BRAKE PRODUCTS 424174 Fits Vehicles
- Jaguar XJRS (1993)
- Jaguar XJS (1980-1996)
- Jaguar XJ6 (1980-1987)
- Jaguar Vanden Plas (1982-1987)
