ATE BRAKE PRODUCTS 412189 Part Description
Manufacturer
Product Description

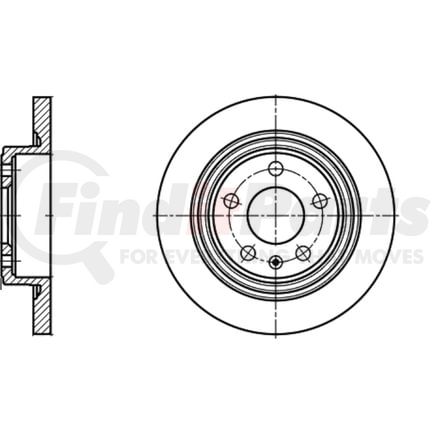

ATE Original Rear Disc Brake Rotor 412189 for Buick, Cadillac, Chevrolet
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 412189 Specifications
Product Attributes
| Outside Diameter | 292.00 MM |
| Inside Diameter | 157.00 MM |
| Nominal Thickness | 12.00 MM |
| Discard Thickness | 10.00 MM |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 45.00 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 115.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.20 MM |
| Center Hole Diameter | 70.70 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | DE |
| EU | |
| UPC | 04006633346146 |
ATE BRAKE PRODUCTS 412189 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2956 |
| Bendix | PRT6097 |
| Bosch | 0 986 479 C58, 25011442 |
| Brembo | 08.B351.10, 08.B351.11 |
| CENTRIC | 120.62131 |
| Centric Parts | 120.62131 |
| Delphi | BG4279 |
| Febi-Bilstein | 39189 |
| Ferodo America | DDF1871C |
| GMC | 13502137, 13504280, 23118061 |
| Hella | 55057PRO, 8DD 355 116-601 |
| N/A | BDS1147 |
| Qualis | 41273 |
| Raybestos Brakes | 580900 |
| TRW | DF6363, DF6370 |
| Textar | 92205703 |
| Valeo | 196004 |
| Wagner Brake | BD180491 |
| Zimmermann | 430.2624.20 |
ATE BRAKE PRODUCTS 412189 Fits Vehicles
- Buick Cascada (2016-2019)
- Cadillac ELR (2014-2016)
- Chevrolet Volt (2011-2015)
