ATE BRAKE PRODUCTS 411147 Part Description
Manufacturer
Product Description

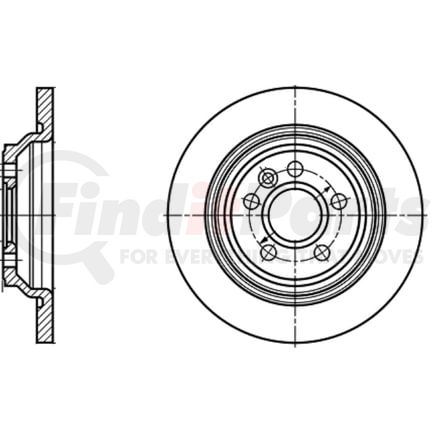

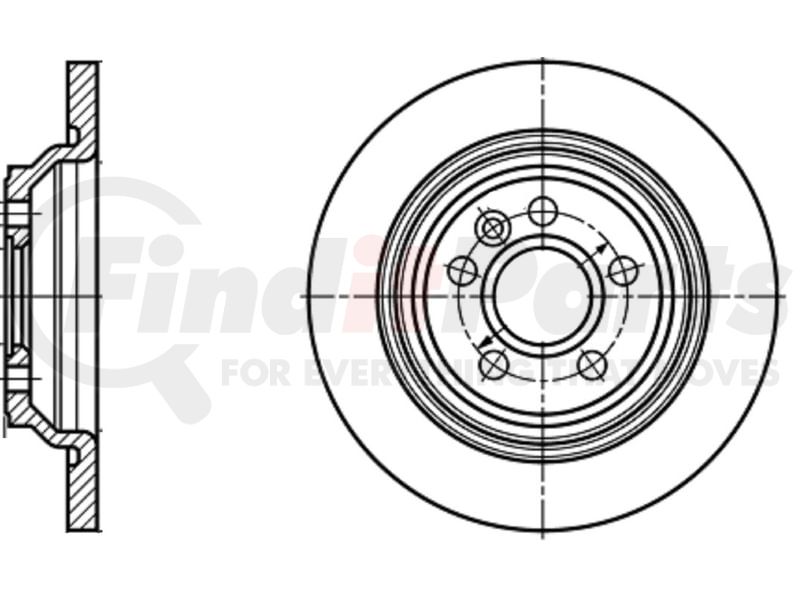

ATE Original Rear Disc Brake Rotor 411147 for Volvo
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 411147 Specifications
Product Attributes
| Outside Diameter | 302.00 MM |
| Inside Diameter | 177.60 MM |
| Nominal Thickness | 11.00 MM |
| Discard Thickness | 9.00 MM |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 40.80 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 108.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.00 MM |
| Center Hole Diameter | 63.50 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | IT |
| EU | |
| UPC | 04006633310529 |
ATE BRAKE PRODUCTS 411147 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2643 |
| Beck/Arnley | 083-3170Z |
| Bendix | PRT5965 |
| Bosch | 0 986 479 397, 52011373 |
| Brembo | 08.A537.10, 08.A537.11 |
| Centric Parts | 125.39043 |
| Delphi | BG4239 |
| Ferodo America | DDF1720, DDF1720-1, DDF1720C |
| Hella | 54629, 8DD 355 114-151 |
| N/A | 92162903 |
| Raybestos Brakes | 980607 |
| TRW | DF6187 |
| Textar | 92162900, 98200 1629 0 1 |
| Volvo | 30769059, 307690590, 31358884, 313588840, 31471746, 314717460 |
| Wagner Brake | BD180068 |
| Winhere | 441778 |
| Zimmermann | 610.3714.20, 610371420 |
ATE BRAKE PRODUCTS 411147 Fits Vehicles
- Volvo S60 Cross Country (2016-2018)
- Volvo V60 Cross Country (2015-2018)
- Volvo V60 (2015-2018)
- Volvo S60 (2011-2018)
- Volvo V70 (2008-2010)
- Volvo XC70 (2008-2016)
- Volvo S80 (2007-2016)
