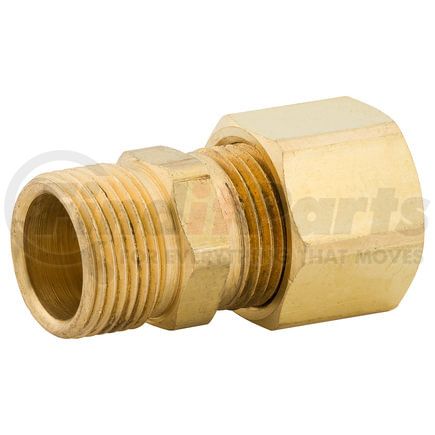

AGS COMPANY CF-22B Connector Com, Br, 1/2, (3/8 NPTM), Bag

Name: AGS Company CF-22B Connector Com, Br, 1/2, (3/8 NPTM), Bag
SKU: cf22b
Price: 2.4 USD
Availability: InStock

$2.40

Limited availability at this price!

In Stock

Get it by Tuesday, Dec 16

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed before 2pm EST will ship same day

AGS COMPANY CF-22B Part Description

Connector Com, Br, 1/2, (3/8 NPTM), Bag

Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).

Material	Brass
Thread Diameter	Male '3/8 - 18 NPT IN
Temperature Range (deg C)	-54 To +121 CE
Unassigned_1528	-65 To +250 FA
Unassigned_18	1/2 IN
Unassigned_2029	900 PS
Unassigned_2830	1/2 IN
Unassigned_8935	3/8 - 18 IN
Unassigned_9427	3/8 IN
Unassigned_9428	11/16 - 20 IN
Tube Size (in)	1/2 IN
Thread Size (in)	3/8 - 18 IN
Working Temp Range (deg F)	-65 To +250 FA
Maximum Working Pressure (psi)	900 PS
Compression Sleeve Inside Diameter (in)	1/2 IN
End 2 Thread Size (in)	3/8 IN
End 1 Thread Size (in)	11/16 - 20 IN

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8302303060
Harmonized Tariff Code (HTS)	8302303060
NAFTA Preference Criterion Code	B
Warranty Special	12 Month warranty on product for fit and function with proper installation; proof of purchase required for replacement
Warranty Special UOM	TX
Warranty Time	12
Warranty Time UOM	MO
UPC	00077146394058
