(888) 312-8812 Login SignupDORMAN 526-515 Suspension Control Arm And Ball Joint Assembly
Tap to view 5 more
MSRP: $279.45
$15149
Save $127.96
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10
DORMAN 526-515 Part Description
Manufacturer
Product Description

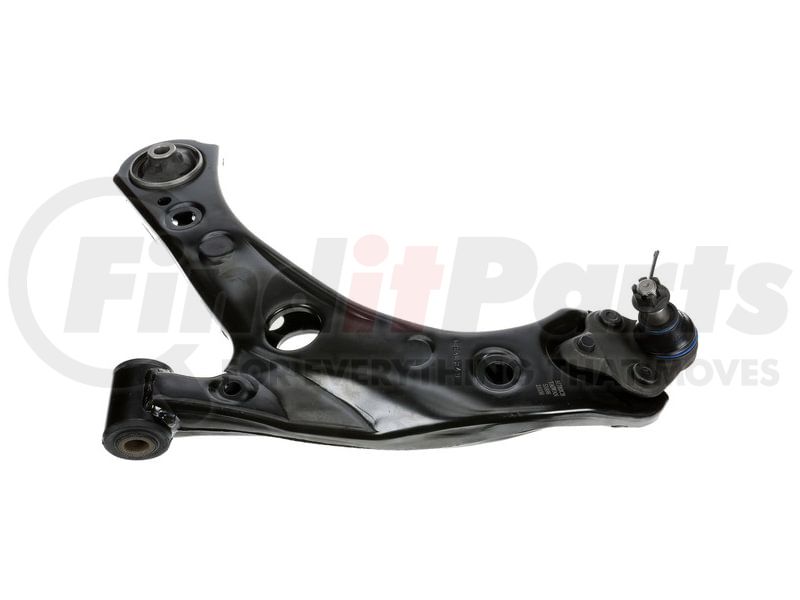

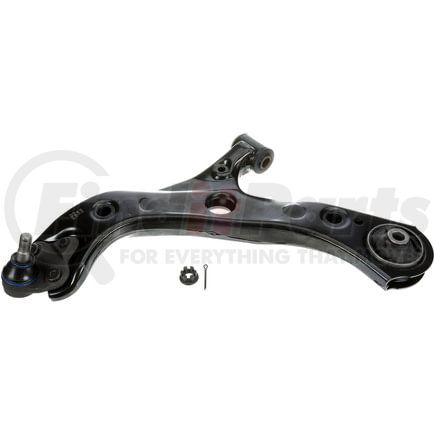

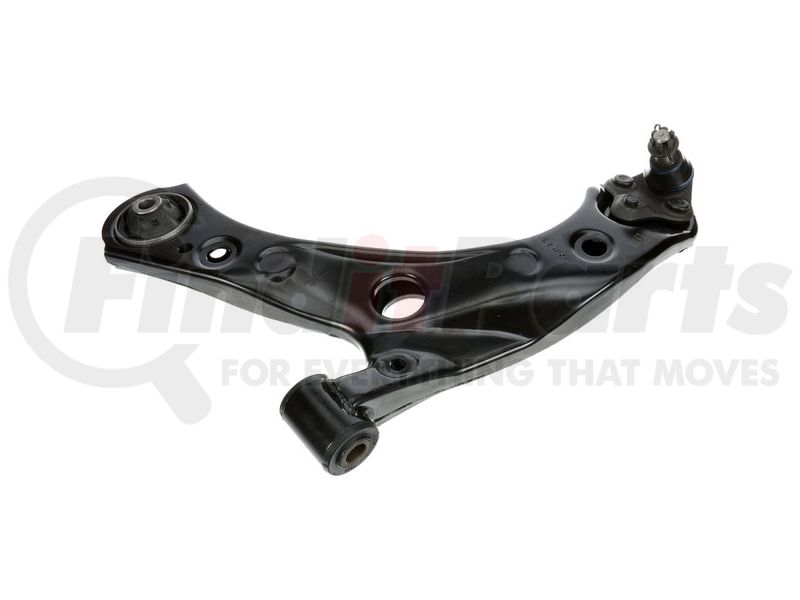

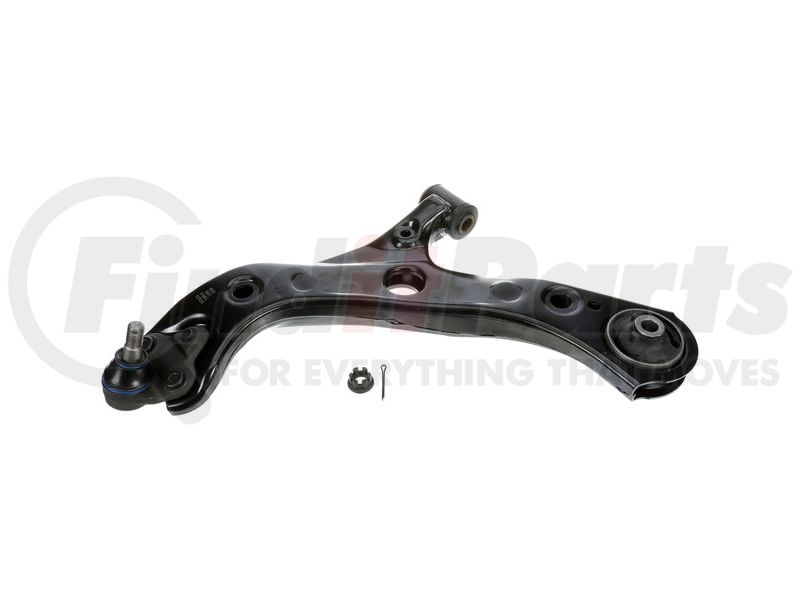

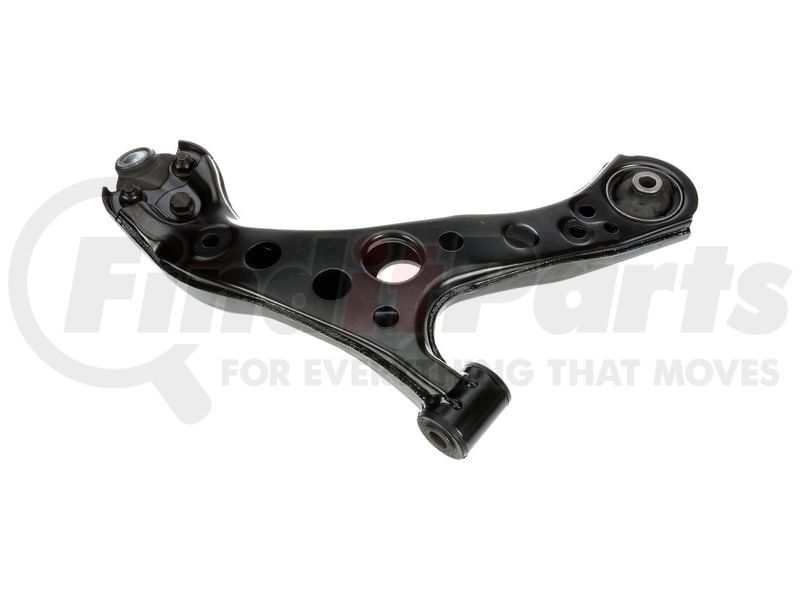

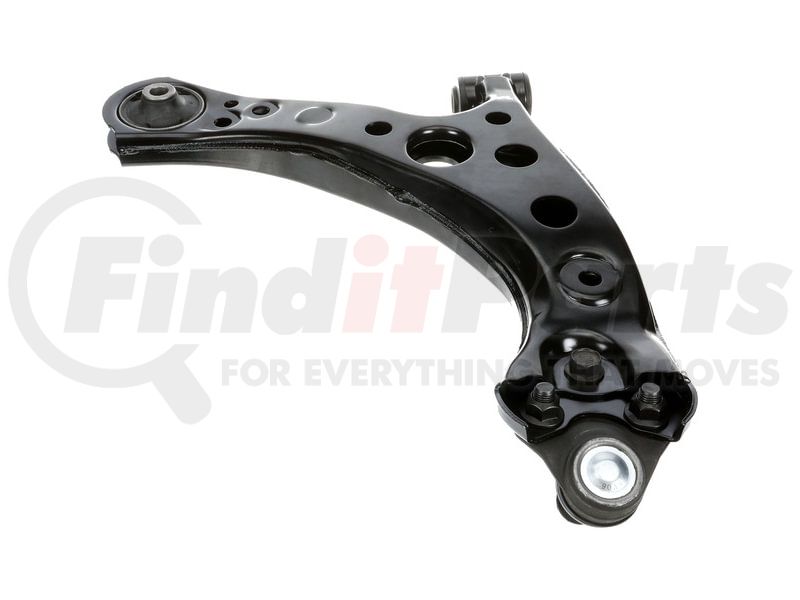

Suspension Control Arm And Ball Joint Assembly
Application Summary
Toyota Corolla 2022-19, Toyota Prius 2022-16, Toyota Prius AWD-e 2022-19, Toyota Prius Prime 2022-17
Features & Benefits
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Suspension, Control, Arm, Ball, Joint, Assembly, Arms, Assemblies
DORMAN 526-515 Specifications
Product Attributes
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Control Arm Maximum Width | 288.5 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14 MM |
| Ball Joint Stud Length | 42 MM |
| Control Arm Maximum Length | 237 MM |
| Mounting Hole Diameter | 12.3 MM |
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Bushing Material | Steel; Rubber |
| Control Arm Type | Casting/Forged |
| Grade Type | Regular |

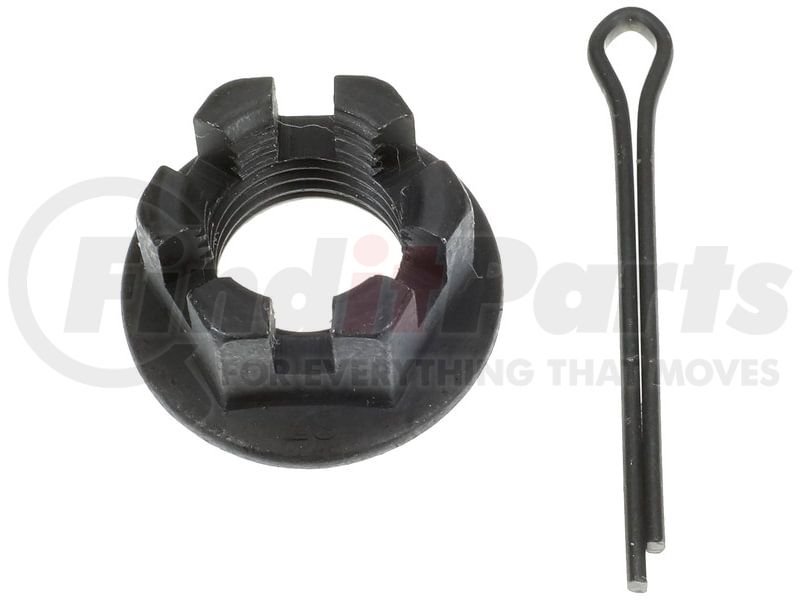

| Package Contents | 1 Control Arm; 1 Ball Joint |
| Suspension Grade Type | Light |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 4016995010 |
| UPC | 00889245194244 |
| VMRS Code | 016001015 |
| UNSPSC | 25172001 |
DORMAN 526-515 Cross References
| Brand | Part Number |
|---|---|
| MEVOTECH | CMS861259 |
| MOOG | RK623670 |
| MOOG Chassis Products | RK623670 |
| Mevotech Supreme | CMS861259 |
| Napa Premium | 2608658 |
| Toyota | 4333019115, 4806902310, 4806947060 |
DORMAN 526-515 Fits Vehicles
- Toyota Prius AWD-e (2019-2022)
- Toyota Corolla (2019-2025)
- Toyota Prius Prime (2017-2022)
- Toyota Prius (2016-2022)
