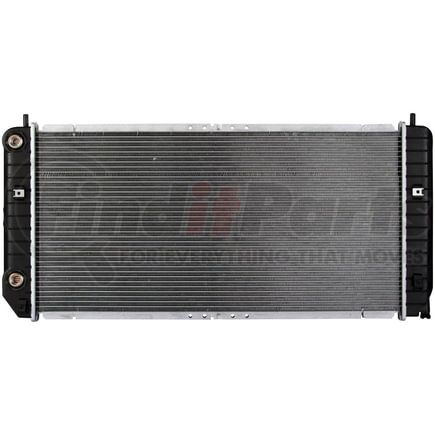

REACH COOLING 41-2280 Radiator

41-2280 by REACH COOLING - Radiator
REACH COOLING
Tap to view 3 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2280 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Cadillac:98-2000 Seville

Features & Benefits

  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Folded fin edges increase stability and heat disbursement properties.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

REACH COOLING 41-2280 Specifications

Product Attributes

Inlet Header Length 420.7 MM
Outlet Header Width 2.437 IN
Outlet Diameter 39.7 MM
Core Height 30.5 IN
Inlet Diameter 1.312 IN
Core Thickness 1.25 IN
Core Material Aluminum
Transmission Oil Cooler Distance between Fittings 11.5 IN
Engine Oil Cooler Fittings Distance Apart 11.5 IN
Outlet Header Length 16.562 IN
Tank Material Plastic
Inlet Header Width 61.9 MM
Transmission Oil Cooler Type Plated
Core Row Quantity 1
Engine Oil Cooler Included Yes
Fitting Connection Type Quick connect
Core Width 382.6 MM
Transmission Oil Cooler Included Yes
Down Flow Or Cross Flow Type Cross Flow
Trans Cooler Adapter Fittings Included (True/False) True
Outlet Location Top Left
Engine Oil Cooler Type Plated
Radiator Cap Included Not Needed
Inlet Location Top Right
Core Width 382.574 MM
Engine Oil Cooler Fittings Distance Apart 292.1 MM
Transmission Oil Cooler Distance between Fittings 292.1 MM
Core Thickness 31.75 MM
Outlet Diameter 39.674 MM
Transmission Oil Cooler Distance between Fittings 292.1 MM
Engine Oil Cooler Fittings Distance Apart 292.1 MM
Core Height 774.7 MM
Inlet Header Width 2.437 IN
Core Height 774.7 MM
Core Width 15.062 IN
Outlet Header Width 61.899 mm
Core Thickness 31.8 MM
Inlet Header Length 16.562 IN
Inlet Diameter 33.3 MM
Inlet Diameter 33.324 mm
Inlet Header Length 420.674 mm
Inlet Header Width 61.899 mm
Outlet Header Length 420.674 mm
Outlet Header Length 420.7 MM
Outlet Diameter 1.562 IN
Outlet Header Width 61.9 MM

Additional Information

Country of Origin (Primary) TH
UPC 08859869508101
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2280 Cross References

BrandPart Number
1-800-Radiator2280
ACDelco20914, 21308
APDI8012474
APDI RADS8012474
Advance Auto Parts432395
AutoNation19812-00760
AutoZoneB2280
Autokool1482, 2274, 2279
BesutoBES2280
CRSCUC2280, CRS2474, CUC2474
CRS AutomotiveCUC2280
Cadillac52484076, 52380734
Cancore IndustriesC2280
CryoMAX0R-002280-A3CM, 0R002280A3CM, 2474, 0R002474A3CM, 2280
DPI DataPoint Inc2280, 2474
DelphiRA1201, RA1178
Dixin USADX2474
Factory AirRAD2474
Federated2474
FisherCU2280, CU2474
FronteraAM2280, AM2474
GLOBAL PARTS DISTRIBUTORS2474C
General Motors52380734, 52471073, 52484076, 52484078
Keystone Auto IndustriesRAD2474
KlimotoKLI2280
Kool VueP2474
Lynol Cooling SystemsLR2474
Modine3001
NAPA2628, NR2474A
Northern RadiatorCR2280, CR2474
OSC2280, 2474, 2279, USR2474
PACIFIC BEST INC.PR2280A, PR2474A
PartslinkGM3010153
Performance Radiator2280
Platinum ProRAD2474, RAD2279
Proliance432395
RadCool2474
Reach CoolingREA412280A
Silla Cooling2628A
Spectra PremiumCU2280, CU2279
Sunbelt Radiators IncSBR2280
Thermal Components40900
US Motor WorksUSR2474
Vision2474
Vista Pro432395, 9618, 438087
Visteon9618

REACH COOLING 41-2280 Fits Vehicles

  • Cadillac Seville (1998-2000)
