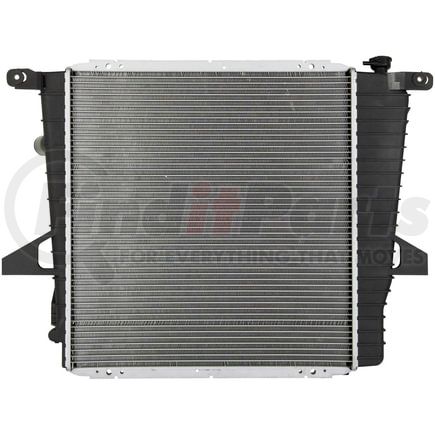

REACH COOLING 41-2137 Radiator

41-2137 by REACH COOLING - Radiator
REACH COOLING
Tap to view 2 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2137 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Ford:95-2000 Explorer

Features & Benefits

  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-2137 Specifications

Product Attributes

Core Thickness 26 MM
Inlet Header Length 21.562 IN
Inlet Header Width 3 IN
Transmission Oil Cooler Distance between Fittings 12 IN
Inlet Diameter 38.1 MM
Outlet Diameter 1.5 IN
Down Flow Or Cross Flow Type Cross Flow
Outlet Header Length 21.562 IN
Transmission Oil Cooler Included No
Outlet Header Width 46 MM
Core Row Quantity 1
Engine Oil Cooler Included No
Core Height 508 MM
Core Material Aluminum
Tank Material Plastic PA66-GF30
Core Width 538.5 MM
Outlet Location Bottom Left
Inlet Location Top Right
Transmission Oil Cooler Type Plated H6
Radiator Cap Included No
Core Height 508 MM
Inlet Header Width 76.2 mm
Outlet Header Width 46.024 mm
Outlet Diameter 38.1 MM
Outlet Header Width 1.812 IN
Outlet Diameter 38.1 MM
Outlet Header Length 547.674 mm
Core Thickness 1 IN
Core Width 21.2 IN
Core Width 538.48 MM
Inlet Header Length 547.7 MM
Inlet Diameter 38.1 mm
Core Height 20 IN
Inlet Header Length 547.674 mm
Outlet Header Length 547.7 MM
Inlet Header Width 76.2 MM
Inlet Diameter 1.5 IN
Core Thickness 25.4 MM

Additional Information

Country of Origin (Primary) TH
UPC 08859869510432
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2137 Cross References

BrandPart Number
APDI8012205, 8012137
APDI RADS8012205
Advance Auto Parts438205
AutoZoneB2137
DPI DataPoint Inc2137
FordF57HLB, F57ZLB, F67H8005CA, F67HCA, F67ZCA, PMF75HLB, F67Z8005CA
Murray Heat Transfer438205
NAPACU2137, NR2205B
Northern Radiator2205, CR2137
OSC2137, 2205
Performance Radiator2137
Platinum ProRAD1728
Spectra PremiumCU2137
TYC800032C
Vista Pro438205, 9397

REACH COOLING 41-2137 Fits Vehicles

  • Ford Explorer (1995-2000)
