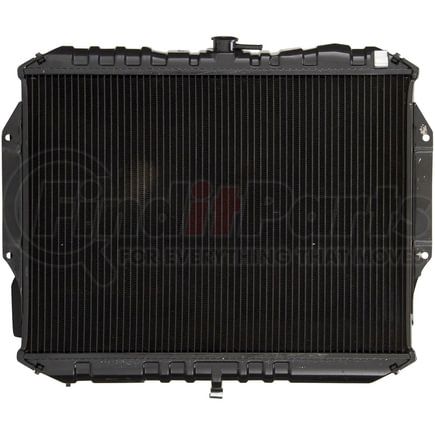

REACH COOLING 41-2071 Radiator

41-2071 by REACH COOLING - Radiator
REACH COOLING
Tap to view 2 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2071 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Mitsubishi:95-96 Montero

Features & Benefits

  • Folded fin edges increase stability and heat disbursement properties.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

REACH COOLING 41-2071 Specifications

Product Attributes

Fitting Connection Type Pipe connect
Core Height 16.687 IN
Outlet Header Width 2.875 IN
Radiator Cap Included No
Inlet Header Length 23.812 IN
Outlet Header Length 23.75 IN
Transmission Oil Cooler Included No
Core Width 22.75 IN
Inlet Diameter 1.375 IN
Inlet Location Top Left
Engine Oil Cooler Included No
Inlet Header Width 2.875 IN
Outlet Diameter 1.375 IN
Core Row Quantity 2
Outlet Location Bottom Left
Down Flow Or Cross Flow Type Down Flow
Core Thickness 1.25 IN
Core Material Aluminum
Tank Material Aluminum
Core Thickness 31.8 MM
Outlet Header Length 603.3 MM
Inlet Diameter 34.9 MM
Outlet Diameter 34.925 MM
Outlet Header Length 603.25 mm
Core Height 423.849 MM
Core Thickness 31.75 MM
Core Width 577.9 MM
Outlet Header Width 73 MM
Inlet Header Length 604.824 mm
Inlet Header Width 73 MM
Core Width 577.85 MM
Inlet Diameter 34.925 mm
Outlet Header Width 73.025 mm
Outlet Diameter 34.9 MM
Inlet Header Width 73.025 mm
Core Height 423.9 MM
Inlet Header Length 604.8 MM

Additional Information

Country of Origin (Primary) TH
UPC 06949521709198
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2071 Cross References

BrandPart Number
1-800-Radiator2071
APDI8012071
APDI RADS8012071
Advance Auto Parts431387
AutoZoneB2071
Autokool2071
CRSCUC2071, CRS2071
CSF2777, 3049, 3050
CryoMAX2071
DPI DataPoint Inc2071
Dixin USADX2071
Factory AirRAD2071
Federated2071
GLOBAL PARTS DISTRIBUTORS2071C
Keystone Auto IndustriesRAD2071
KoyoB2071
MitsubishiMR188432, MR188433
Modine2985
Murray Heat Transfer431387
NAPA2985, NR2071B
Northern RadiatorCR2071
OEMMB188433
OSC2071, USR2071
PACIFIC BEST INC.PR2071A
PBIPR2071A
Parts PlusCU2071
PartslinkMI3010137
Performance Radiator2071
Platinum ProRAD2071
Proliance431387
RadCool2071
Spectra PremiumCU2071
Sunbelt Radiators IncSBR2071
US Motor WorksUSR2071
Vision2071
Vista Pro431387, 9839
Visteon9839

REACH COOLING 41-2071 Fits Vehicles

  • Mitsubishi Montero (1995-1996)
