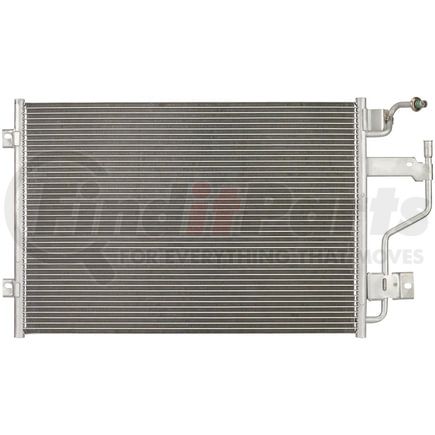

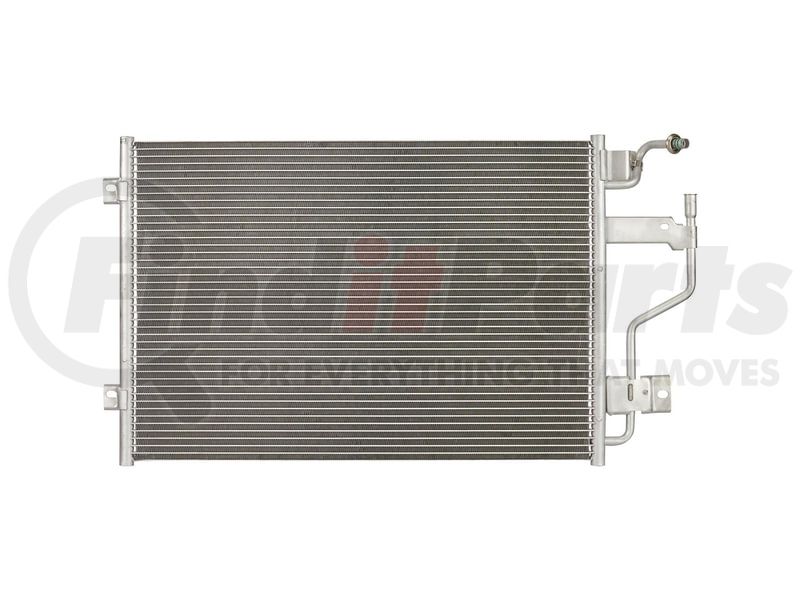

REACH COOLING 31-4579 Part Description
Manufacturer
Product Description
A/C Condenser
Application Summary
Dodge:94-97 Ram 2500/ Ram 3500
Features & Benefits
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- Reach condensers feature a parallel flow design to increase cooling efficiency.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
No Shipping Restriction
condenser, condenser for car, ac condenser unit, ac condenser car, condenser ac
REACH COOLING 31-4579 Specifications
Product Attributes
| Core Length | 25.2 IN |
| Mounting Hardware Included | Seals and Gaskets not included |
| Core Width | 16.85 IN |
| Core Thickness | 16 MM |
| Condenser Core Type | Parallel Flow |
| Includes Drier | No |
| Outlet Fitting Type | Female Quick-Connect |
| Inlet Fitting Type | Male Quick-Connect |
| Core Width | 428 MM |
| Core Thickness | 0.63 IN |
| Core Length | 640 MM |
| Core Material | Aluminum |
| Outlet Diameter | 0.56 IN |
| Inlet Diameter | 0.56 IN |
| Inlet Diameter | 14.3 MM |
| Outlet Diameter | 14.2 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8415909000 |
| Warranty Distance | 24000 |
| Warranty Special UOM | TX |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8415908045 |
| UPC | 06941278958911 |
REACH COOLING 31-4579 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 4610 |
| ACDelco | 1562977 |
| AIRCON | AC344, AC358 |
| APDI | 7014579 |
| APDI RADS | 7014579 |
| Advance Auto Parts | 3152 |
| American Condenser by Vista-Pro | 1026334, 1036334, P36334, P36334P |
| AutoZone | 7-4579 |
| Autokool | 4603 |
| CRS | AC4579 |
| Chrysler | 55036277, 550555824AA |
| CryoMAX | 4579 |
| DPI DataPoint Inc | 4579, 4636 |
| Delphi | CF1106 |
| Dixin USA | DX4579 |
| Dodge | 550555824AA, 55036277 |
| FVP | CON4579 |
| Factory Air | CON4579 |
| Federated | 4579 |
| Four Seasons | 40511, 53895 |
| Frontera | 4579AM |
| GLOBAL PARTS DISTRIBUTORS | 4579C |
| Gilmore Products | AUC4579 |
| Global Heat Transfer | 4579, 4579C |
| Keystone Auto Industries | CND36334 |
| Modine | 300040, 300049 |
| Murray Heat Transfer | 7-4579 |
| NAPA | 1K300040, NC4579A |
| NEW COAST | C63330 |
| Northern Factory Sales | 36334, CD36334 |
| OSC | 4579, 74579 |
| Omega | 24-30428, 2430428 |
| Omega Environmental Technologies | 2430428 |
| PACIFIC BEST INC. | PC4579P |
| Performance Radiator | 4579 |
| Platinum Pro | CND36334 |
| Proliance | 636333, 636334 |
| RadCool | 4579 |
| Rahn Industries | 36334 |
| Silla Cooling | C4579 |
| Spectra Premium | 7-4579, 74579 |
| Sunbelt Radiators Inc | SBC-4579 |
| Thermal Components | 10504 |
| Thermal Solutions Manufacturing | 10504 |
| UAC | CN4579PFC, CN 4579PFC |
| Valeo | 817072 |
| Vision | 4579 |
| Vista Pro | 3152, 636334 |
| Visteon | 003152, 3152 |
| XINTIAN | AC53308 |
REACH COOLING 31-4579 Fits Vehicles
- Dodge Ram 3500 (1994-1997)
- Dodge Ram 2500 (1994-1997)
