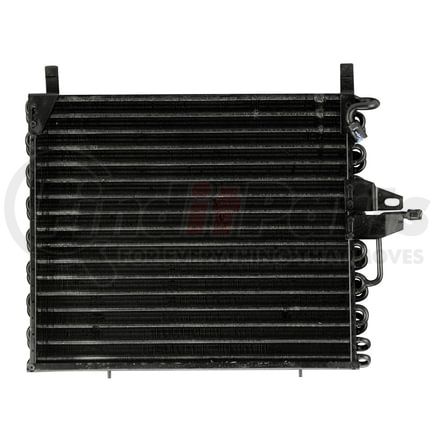

REACH COOLING 31-4074 Part Description
Manufacturer
Product Description
A/C Condenser
Application Summary
Mercedes-Benz:87-89 260E/85 300CD/88-89 300CE/85-87 300D/86-89 300E/85 300TD/88-89 300TE
Features & Benefits
- Reach condensers feature a parallel flow design to increase cooling efficiency.
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
No Shipping Restriction
condenser, condenser for car, ac condenser unit, ac condenser car, condenser ac
REACH COOLING 31-4074 Specifications
Product Attributes
| Core Width | 16.06 IN |
| Core Length | 538 MM |
| Mounting Hardware Included | Seals and Gaskets not included |
| Outlet Fitting Type | Male O-Ring |
| Condenser Core Type | Parallel Flow |
| Core Thickness | 0.63 IN |
| Includes Drier | No |
| Inlet Fitting Type | Male O-Ring |
| Core Thickness | 16 MM |
| Core Width | 408 MM |
| Core Length | 21.18 IN |
| Outlet Diameter | 14.5 MM |
| Outlet Diameter | 0.571 IN |
| Inlet Diameter | 8.6 MM |
| Core Material | Aluminum |
| Inlet Diameter | 0.339 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8415909000 |
| Warranty Distance | 24000 |
| Warranty Special UOM | TX |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Harmonized Tariff Code (HTS) | 8415908045 |
| Country of Origin (Primary) | CN |
| UPC | 06941278983166 |
REACH COOLING 31-4074 Cross References
REACH COOLING 31-4074 Fits Vehicles
- Mercedes-Benz 300TE (1988-1989)
- Mercedes-Benz 300TD (1985)
- Mercedes-Benz 300E (1986-1989)
- Mercedes-Benz 300D (1985, 1987)
- Mercedes-Benz 300CE (1988-1989)
- Mercedes-Benz 300CD (1985)
- Mercedes-Benz 260E (1987-1989)
