REACH COOLING 31-3991 A/C Condenser

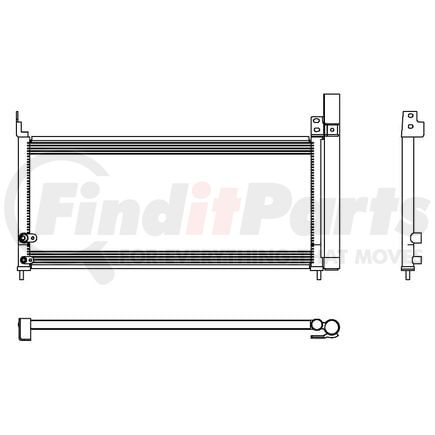

31-3991 by REACH COOLING - A/C Condenser
REACH COOLING
Tap to view 4 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 31-3991 Part Description

Manufacturer

REACH COOLING

Product Description

A/C Condenser

Application Summary

Toyota:2012-2017 Prius V

Features & Benefits

  • All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
  • All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
  • Reach condensers feature a parallel flow design to increase cooling efficiency.
  • Our tubes feature a 5mm fin height which allows for a greater cooling surface.
  • Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
  • Our condensers feature a parallel flow design to increase cooling efficiency.
  • Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.

No Shipping Restriction

condenser, air conditioning, ac condenser, a/c, cond, parallel flow, accumulator

REACH COOLING 31-3991 Specifications

Product Attributes

Outlet Location Lower Left
Core Thickness 22 MM
Core Length 25.35 IN
Inlet Location Lower Left
Mounting Hardware Included Seals and Gaskets not included
Core Width 274.2 MM
Condenser Core Type Parallel Flow
Includes Drier Yes
Core Width 10.8 IN
Core Length 644 MM
Core Thickness 0.87 IN
Inlet Diameter 0.4 IN
Core Material Aluminum
Inlet Diameter 10.15 MM
Outlet Location Bottom Left
Inlet Location Bottom Left
Outlet Diameter 0.61 IN
Outlet Diameter 15.5 MM

Additional Information

Country of Origin (Primary) CN
UPC 06949521770228

REACH COOLING 31-3991 Cross References

BrandPart Number
1-800-Radiator303676
APC203991
APC Inc203991
APDI7013991, 7013790
APDI RADS7013790
AutoNation6708-01474
AutoZone7-3991
Autokool3991
CRSAC3991
CSF10743
Cancore Industries3991
CryoMAX3991
DPI DataPoint Inc3991
Dixin USADX3991
FVPCON3991
Factory AirCON3991
Federated3991
Four Seasons40327
GLOBAL PARTS DISTRIBUTORS3991C
Genera - Archived3991
Global Heat Transfer3991
Keystone Auto IndustriesCND3991
Kool VueKVAC3991
Lexus8846047170
NAPA73991, NC3991X
Nissens940361
Northern Factory SalesCD82103
Northern RadiatorCD82103
OSC3991, 73991
Omega2433217
Omega Environmental Technologies2433217
PACIFIC BEST INC.PC3991
PBIPC3991P
PartslinkTO3030320
Performance Radiator3332
Platinum ProCND3991
RadCool3991
Spectra Premium7-3991, 73991
Sunbelt Radiators IncSBC-3991
TYC3991
Toyota88460-47170, 8846047170
UACCN3991PFC, CN 3991PFC
UNIVERSAL AIR CONDITIONER (UAC)CN3991PFC
XINTIANAC95705

REACH COOLING 31-3991 Fits Vehicles

  • Toyota Prius V (2012-2017)
