REACH COOLING 31-3384 A/C Condenser

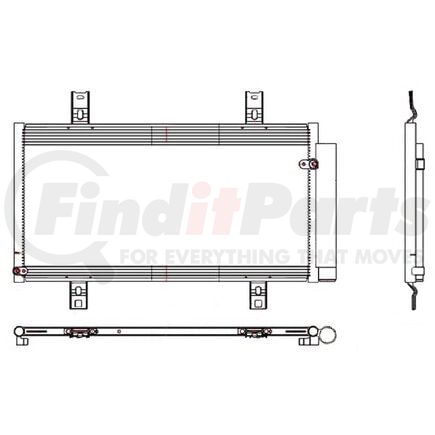

31-3384 by REACH COOLING - A/C Condenser
REACH COOLING
Tap to view 4 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 31-3384 Part Description

Manufacturer

REACH COOLING

Product Description

A/C Condenser

Application Summary

Mazda:2004-2011 RX-8

Features & Benefits

  • Our tubes feature a 5mm fin height which allows for a greater cooling surface.
  • All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
  • Reach condensers feature a parallel flow design to increase cooling efficiency.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
  • All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
  • Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
  • Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
  • Our condensers feature a parallel flow design to increase cooling efficiency.

No Shipping Restriction

condenser, air conditioning, ac condenser, a/c, cond, parallel flow, accumulator

REACH COOLING 31-3384 Specifications

Product Attributes

Core Width 12 IN
Outlet Location Lower Left
Core Length 23.15 IN
Includes Drier Yes
Inlet Location Upper Right
Core Thickness 0.63 IN
Mounting Hardware Included Seals and Gaskets not included
Condenser Core Type Parallel Flow
Core Thickness 16 MM
Core Width 304.6 MM
Core Length 588 MM
Outlet Diameter 0.61 IN
Core Material Aluminum
Inlet Location Top Right
Inlet Diameter 0.4 IN
Outlet Location Bottom Left
Inlet Diameter 10.15 MM
Outlet Diameter 15.5 MM

Additional Information

Country of Origin (Primary) CN
UPC 06949521750138

REACH COOLING 31-3384 Cross References

BrandPart Number
1-800-Radiator303451
APC203384
APC Inc203384U, 203384
APDI7013384
APDI RADS7013384
Advance Auto Parts6137
American Condenser by Vista-ProP40372, 1050372, P40372P, P50372P
AutoNation6708-00997
AutoZone7-3384
Autokool3384
CRSAC40372
CRS AutomotiveAC3384, AC40372
Cancore Industries3384
CryoMAX0A003384PFYH, 3384
DAWSONC-0311A, C0311A
DENSO4770697
DPI DataPoint Inc3384
Dixin USADX3384
FVPCON3384
Factory AirCON3384
Federated3384
Fisher7-3384
Four Seasons40180
GLOBAL PARTS DISTRIBUTORS3384C
Genera - Archived3384
Gilmore ProductsAUC3384
Global Heat Transfer3384
Keystone Auto IndustriesCNDDPI3384
Kool VueKVAC3384
KoyoCD060412
Lynol Cooling SystemsAC3384
MazdaF15161480
Murray Heat Transfer7-3384
NAPA73384, NC3384A
Nissens94934
Northern Factory Sales40372, CD40372
Northern RadiatorCD40372
OSC3384, 73384
Omega24-31288, 2431288
Omega Environmental Technologies2431288
PACIFIC BEST INC.PC3384, PC3384F, PC3384P
PACOPL3338
PBIPC3384P
PartslinkMA3030145
Performance Radiator3430
Platinum ProCNDDPI3384
RadCool3384
Spectra Premium7-3384, 73384
Sunbelt Radiators IncSBC-3384
TYC3384
UACCN3384PFC, CN 3384PFC
Valeo814060, 814215
Vista Pro6137
Visteon6137
XINTIANAC46708

REACH COOLING 31-3384 Fits Vehicles

  • Mazda RX-8 (2004-2011)
