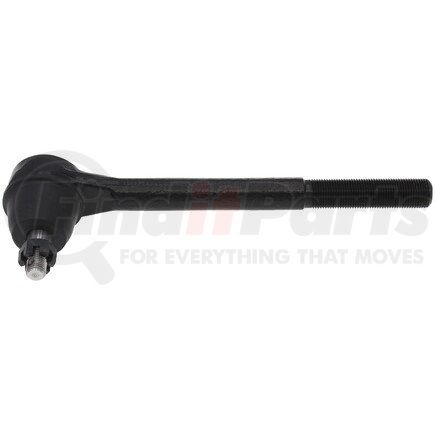

(888) 312-8812 Login SignupDORMAN TO902005 Steering Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DORMAN TO902005 Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
Chevrolet 1998-88, GMC 1998-88, Isuzu 1998, Oldsmobile 1998-96, Oldsmobile 1994-91
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TO902005 Specifications
Product Attributes
| Length | 110 MM |
| Color | Noir |
| End 1 Gender | Macho |
| End 2 Gender | Macho |
| Finish | Revestidos |
| Pre-Greased | Oui |
| Grease Fitting Included | Non |
| Dust Boot Included | No |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 10 MM |
| Housing Material | Acero |
| Adjustable | No |
| Cone Outside Diameter | 12.23 MM |
| Bearing Material | Polymer |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Regular |
| Stud Type | Taper |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.25 MM |
| Dust Boot Material | Policloropreno |
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 18 MM |
| Package Contents | 1 Tie Rod End |
| Contenidos del paquete | 1 extremo del terminal de la direccion |
| Grade Type | Standard |
| Diámetro la rosca de extremo 1 | 18mm MM |
| Diámetro la rosca de extremo 2 | 10mm MM |
| End 1 Thread Diameter | 18 mm MM |
| End 1 Thread Pitch | M1.25 mm |
| End 2 Thread Diameter | 10 mm MM |
| End 2 Thread Pitch | M1.25 MM |
| Espacio de la rosca del extremo 1 | M1.25 MM |
| Espacio de la rosca del extremo 2 | M1.25 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00889245896780 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO902005 Cross References
| Brand | Part Number |
|---|---|
| General Motors | 12471300 |
| Isuzu | 8124713000, 8260330890 |
| MEVOTECH | MES3462 |
| MOOG Chassis Products | ES2249RLT |
| Mevotech Original Grade | GES2249RLT |
| Mevotech Supreme | MES2249RLT |
| SUSPENSIA | X07TE0143 |
DORMAN TO902005 Fits Vehicles
- Isuzu Hombre (1998)
- GMC Syclone (1991)
- GMC Sonoma (1991-1998)
- GMC S15 (1988-1990)
- Oldsmobile Bravada (1991-1994, 1996-1998)
- Chevrolet S10 Blazer (1988-1994)
- Chevrolet S10 (1988-1998)
- GMC Typhoon (1992-1993)
- GMC S15 Jimmy (1988-1991)
- Chevrolet Blazer (1995-1998)
- GMC Jimmy (1992-1998)
