RAYBESTOS 980779R Part Description
Manufacturer
Product Description

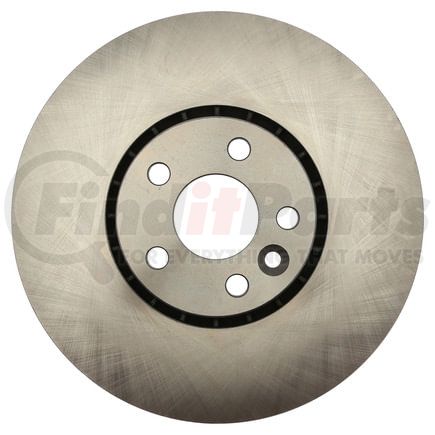

Raybestos R-Line Brake Rotor
Application Summary
2017,2015-2010 Volvo XC60 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980779R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.991 IN |
| Inside Diameter | 177.55 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.618 IN |
| Mounting Bolt Hole Diameter | 15.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.182 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.91 IN |
| Outside Diameter | 327.9 MM |
| Overall Height | 2.049 IN |
| Overall Height | 52.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372847 |
RAYBESTOS 980779R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 290595, YH290595, YH290595C, YH290595P |
| AutoZone | 79903, 79903DG |
| Autoxtra | AX900992, AX900992P |
| Bosch | 52011385 |
| BrakeBest | 52011385, 980779, 980779RGS |
| Brembo | 09.B025.11 |
| CENTRIC | 121.39046 |
| Centric Parts | 120.39046, 121.39046, 125.39046, 125.39046CRY, 126.39046CSL, 126.39046CSR, 126.39046SL, 126.39046SR, 127.39046L, 127.39046R, 128.39046CL, 128.39046CR, 128.39046L, 128.39046R, 320.39046H |
| Dura Corp | BR34422, BR900992 |
| DuraGo | BR900992 |
| MAGMA PRODUCTS | PMR605042 |
| Newtek Automotive USA | 34422 |
| PowerStop | EBR1283EVC |
| Promax | 14-34422 |
| Qualis | 45466 |
| UAP | R39046 |
| Volvo | 31277342, 312773420, 31471034, 314710340 |
| WORLDPAC | 1407-290595, 1427-530050 |
| Wagner Brake | BD180478E |
| Winhere | 6621087 |
RAYBESTOS 980779R Fits Vehicles
- Volvo XC60 (2010-2015, 2017)
