(888) 312-8812 Login SignupRAYBESTOS 980731R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980731R Part Description
Manufacturer
Product Description

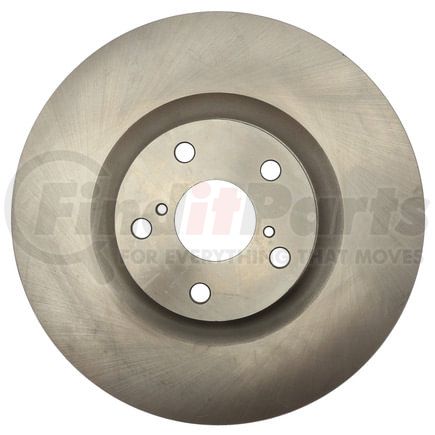

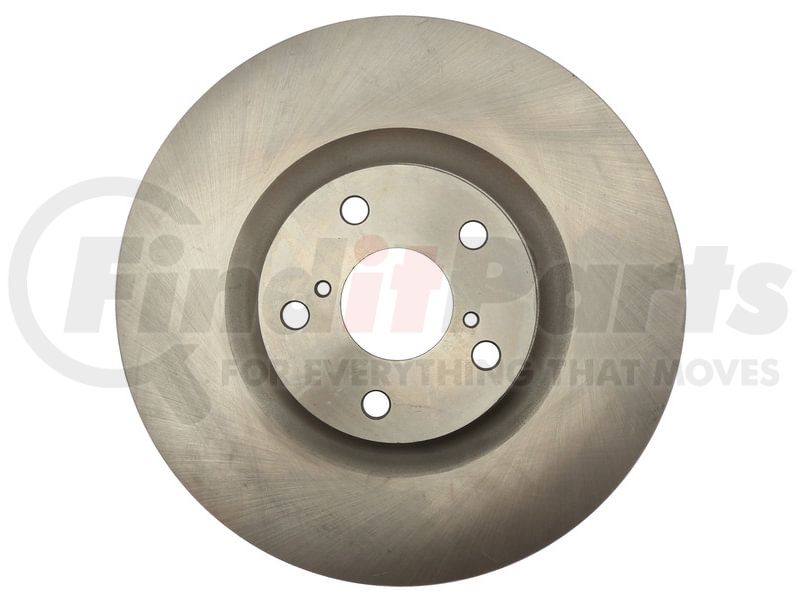

Raybestos R-Line Brake Rotor
Application Summary
2011-2009 Lexus GS350 Front Left, 2011-2009 Lexus IS350 Front Left, 2011-2009 Lexus GS450h Front Left, 2011-2009 Lexus GS460 Front Left
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980731R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.442 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.586 IN |
| Inside Diameter | 218.1 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.571 IN |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.182 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.151 IN |
| Outside Diameter | 334.05 MM |
| Overall Height | 2 IN |
| Overall Height | 50.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.571 IN |
| Stud/Lug Hole Diameter | 14.5 MM |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372793 |
RAYBESTOS 980731R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH275049, YH275049C, YH275049P |
| AutoZone | 44675, 44675DG |
| Bendix | PRT5954 |
| Bosch | 50011342 |
| BrakeBest | 980731, 980731RGS |
| CENTRIC | 121.44170 |
| Centric Parts | 120.44170, 121.44170, 125.44170, 126.44170CSL, 126.44170SL, 127.44170L, 128.44170L |
| Dura Corp | BR31535, BR901010 |
| DuraGo | 901012, BR901012, BR901010 |
| Dynamic Friction Company | 604-75027D |
| MAGMA PRODUCTS | PMR563100 |
| Newtek Automotive USA | 31535 |
| PowerStop | JBR1392EVC |
| Promax | 14-31535 |
| Qualis | 44675 |
| Toyota | 4351630030 |
| Wagner Brake | BD180328 |
| Winhere | 6621088 |
RAYBESTOS 980731R Fits Vehicles
- Lexus GS350 (2009-2011)
- Lexus GS460 (2009-2011)
- Lexus GS450h (2009-2011)
- Lexus IS350 (2009-2011)
RAYBESTOS 980731R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980731R Questions & Answers
No questions yet
Be the first to ask a question about this product!
