RAYBESTOS 980730R Part Description
Manufacturer
Product Description

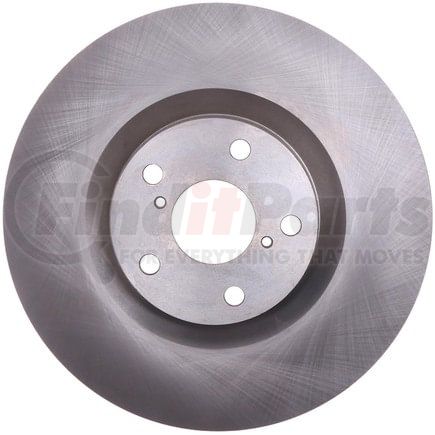

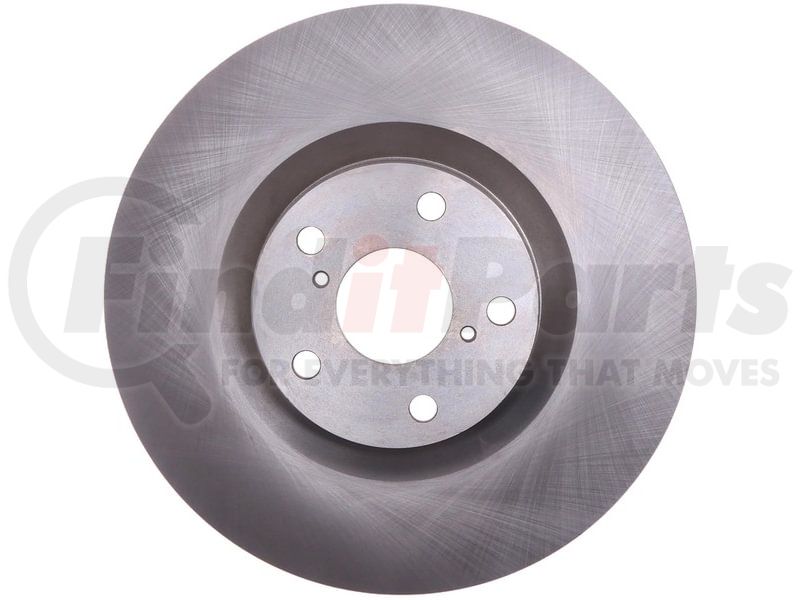

Raybestos R-Line Brake Rotor
Application Summary
2011-2009 Lexus GS350 Front Right, 2011-2009 Lexus IS350 Front Right, 2011-2009 Lexus GS450h Front Right, 2011-2009 Lexus GS460 Front Right
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980730R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.443 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.574 IN |
| Inside Diameter | 217.8 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.182 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.148 IN |
| Outside Diameter | 333.95 MM |
| Overall Height | 2.005 IN |
| Overall Height | 50.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 4.5 IN |
| Stud/Lug Hole Diameter | 114.3 MM |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372786 |
RAYBESTOS 980730R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH275048, YH275048C, YH275048P |
| AutoZone | 44666, 44666DG |
| Bosch | 50011483 |
| BrakeBest | 980730, 980730RGS |
| CENTRIC | 121.44171 |
| Centric Parts | 120.44171, 121.44171, 125.44171, 126.44171CSR, 126.44171SR, 127.44171R, 128.44171CR, 128.44171R |
| Dura Corp | BR31534 |
| DuraGo | 901010, BR901010, BR31534 |
| Dynamic Friction Company | 604-75028D |
| MAGMA PRODUCTS | PMR563099 |
| Newtek Automotive USA | 31534 |
| PowerStop | JBR1393EVC |
| Promax | 14-31534 |
| Qualis | 44666 |
| Toyota | 4351230340 |
| Wagner Brake | BD180327 |
| Winhere | 6621089 |
RAYBESTOS 980730R Fits Vehicles
- Lexus GS350 (2009-2011)
- Lexus IS350 (2009-2011)
- Lexus GS460 (2009-2011)
- Lexus GS450h (2009-2011)
