FRAM TG10515 Part Description
Manufacturer
Product Description
FRAM, TG10515, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines

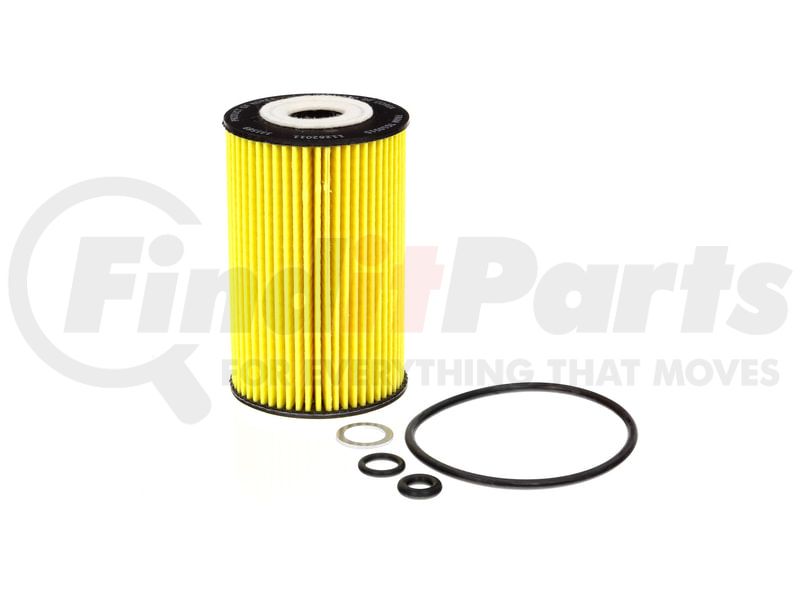

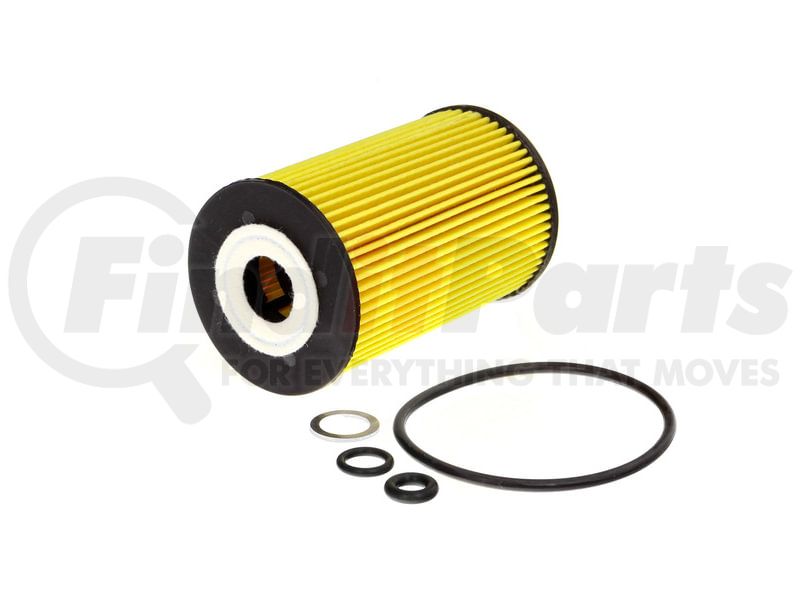

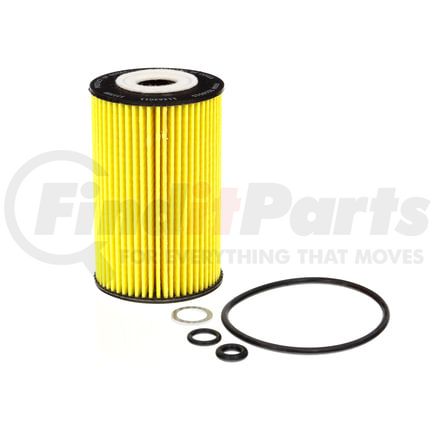

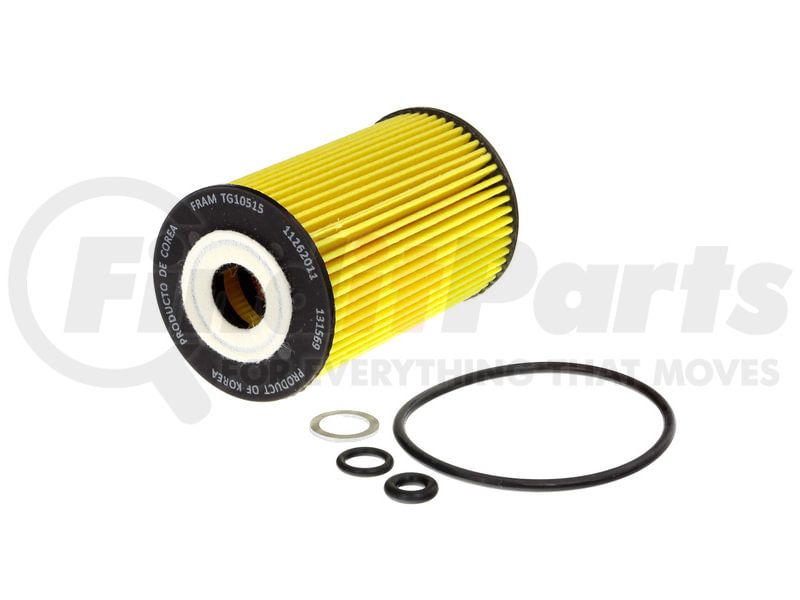

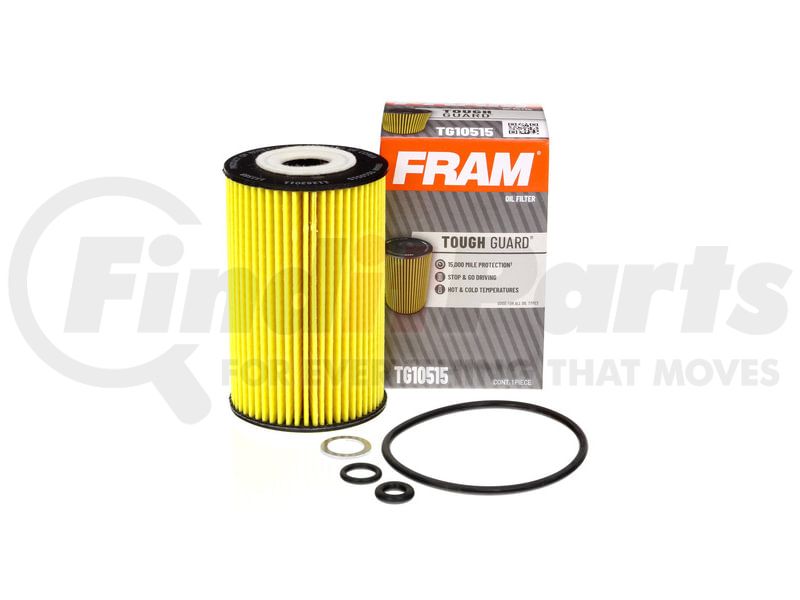

Cartridge Oil Filter
FRAM TG10515 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.213 IN |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Cartridge |
| Housing Color | NA |
| Non Slip Grip | No |
| Torque Nut | No |
| Top Inside Diameter | 1.004 IN |
| Outer Diameter Bottom | 2.559 IN |
| Grade | Premium |
| Grade Type | Premium |
| Inside Diameter Bottom | 1.004 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.441 IN |
| O-ring (1) Outside Diameter | 0.539 IN |
| O-ring (1) Thickness | 0.098 IN |
| O-ring (2) Inside Diameter | 0.315 IN |
| O-ring (2) Outside Diameter | 0.453 IN |
| O-ring (2) Thickness | 0.138 IN |
| O-ring Inside Diameter | 2.893 IN |
| O-ring Outside Diameter | 3.034 IN |
| O-ring Thickness | 0.141 IN |
| O-Rings Included | Yes |
| Outer Diameter Top | 2.559 in |
| Replacable Filter | Yes |
| Reusable | No |
| Washable | No |
| Washer Inside Diameter | 0.551 IN |
| Washer Outside Diameter | 0.787 IN |
| Washer Thickness | 0.079 IN |
| Grade Type | Premium |
| Bottom Inside Diameter | 1.004 IN |
| Outside Diameter Top | 2.559 IN |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100559371 |
| UNSPSC | 15121501 |
FRAM TG10515 Cross References
| Brand | Part Number |
|---|---|
| Baldwin | P7364 |
| Beck/Arnley | 041-0825, 041-0846, 041-0847 |
| Bosch | 72257WS, 3848 |
| Carquest | 84029, 84042, 84250, R84250, R84029 |
| Carquest Premium Filters | 84029, 84042, 84250 |
| Casite Filters | CF642 |
| Champ | P982, P994 |
| Champion | COC10515 |
| Champion Filters | COC10515 |
| Defense Filters | DL10515 |
| ECOGARD | X5848 |
| FRAM Drive | FD10515 |
| FRAM Extra Guard | CH10515 |
| FRAM Force | FF10515 |
| FRAM Titanium | FS10515 |
| FRAM Tough Guard | TG10515 |
| FRAM Ultra Synthetic | XG10515 |
| FVP | G7029 |
| Factory Motor Parts | G7029 |
| Forecast | OF69 |
| Hastings | LF642, LF642F, LF654 |
| Hyundai | 26300-3C250, 26320-3C250, 26320-3C300, 26320-3C30A, 26320-3C700, 26320-3F100 |
| K&N | HP-7029, PS-7029 |
| Kia | 26320-3C250, 26320-3C300, 26320-3C30A, 26320-3F100 |
| LUBER-FINER | P982, P994 |
| MAHLE | OX 351D ECO, OX351DECO |
| MicroGard | MGL10515, MGL57029, MGL57250 |
| Mighty Distributing System | MX982 |
| Mobil 1 | M1C-255, M1C-255A |
| NAPA | 7029, 7042, 7250 |
| PUROLATOR | TL25848, PL25848 |
| Parts Master | 67029, 67250 |
| Pennzoil | HPZ-174, PZ174 |
| Performax | S10515XL, PO-174 |
| Premium Guard | PG5848, PG5848A |
| Promotive | PH5848 |
| PureZone | 8-57250 |
| Purolator | L25848 |
| Purolator PureONE | PL25848 |
| PurolatorONE | PL25848 |
| Quaker State | QS174 |
| STP Filters | S10515, S10515XL |
| Service Champ | CF5848 |
| Valvoline | VO-99, VO99 |
| WIX FILTERS | 57029, 57250 |
| Warner | WP982 |
| Warner Filters | WP982 |
| Wix | 57042, 57250, 57029 |
FRAM TG10515 Fits Vehicles
- Suzuki Aerio (2002)
- Kia K900 (2015-2017)
- Hyundai Genesis Coupe (2010-2016)
- Hyundai Equus (2011-2016)
- Hyundai Santa Fe (2009)
- Kia Amanti (2009)
- Hyundai Sonata (2009-2010)
- Kia Borrego (2009-2011)
- Hyundai Genesis (2009-2014)
- Hyundai Azera (2009-2011)
- Kia Sedona (2008-2010)
- Kia Sorento (2008-2009)
- Hyundai Veracruz (2007-2012)
