RANCHO RS55396 Part Description
Manufacturer
Product Description

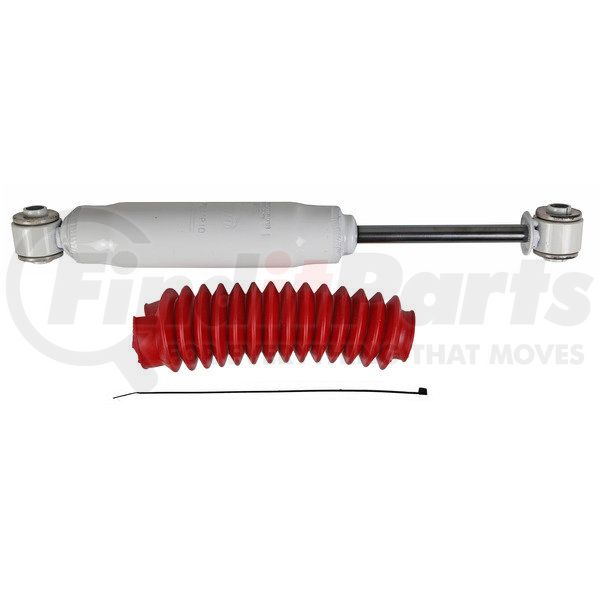

RS5000X Suspension Shock Absorber
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS55396 Specifications
Product Attributes
| Compressed Length | 11.77 IN |
| Travel Length | 5.79 in |
| Finish | Painted |
| Grade Type | Performance |
| Extended Length | 17.56 in |
| Gas Charged | Yes |
| Adjustable Damping | No |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Upper Mount Code | LS44 |
| Lower Mount Code | LS44 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size | 35 MM |
| Internal Rebound Bumper | Yes |
| Body Diameter | 2.251 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.7/8" Sleeve OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | None |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.7/8" Sleeve OAL |
| Compressed Length | 299 MM |
| Extended Length | 446 MM |
| Travel Length | 147.1 MM |
| Shock Stroke | 5.79 IN |
| Shock Stroke | 147.1 MM |
| Lower Mount Code | LS44 |
| Upper Mount Code | LS44 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Mounting Hardware Included | No |
| Body Diameter | 2.251 IN |
| Body Diameter | 57.2 MM |
| Cylinder Outside Diameter | 2.251 IN |
| Cylinder Outside Diameter | 57.2 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | White |
| Cylinder Color | White |
| Color | White |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Diameter | 2.99 IN |
| Dust Shield Diameter | 75.946 MM |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter | 0.622 IN |
| Rod Diameter | 15.8 MM |
| Shaft Material | Nitro-Carburized Steel |
| Shock Absorber Bore Size | 1.3779527559055118 IN |
| Internal Rebound Spring | No |
| Type | Telescopic |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | No |
| Internal Construction Type | Twin Tube |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop (Eyelet) Bushing and Sleeve |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703011648 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
RANCHO RS55396 Cross References
| Brand | Part Number |
|---|---|
| FCS | 342485 |
| FCS Auto Parts | 342485 |
| Gabriel | G63875 |
| KYB | 345066 |
| MONROE | 37253 |
| Monroe Shocks & Struts | 37253, 210284 |
| NAPA Shocks | 37253 |
| Nissan | 562007S003, 562007S023, 562007S603, 562007S613, 56200ZC00A, 56200ZC01A, 56200ZC01B, 56200ZQ00C, 56200ZQ20C, 56200ZZ90A |
| Rancho | RS5396 |
| Sachs | 313477 |
| Sensen | 12140436 |
| TRW | JGT4662S |
| Unity Automotive | 255040 |
RANCHO RS55396 Fits Vehicles
- Nissan Pathfinder Armada (2004)
- Nissan Armada (2005-2015)
