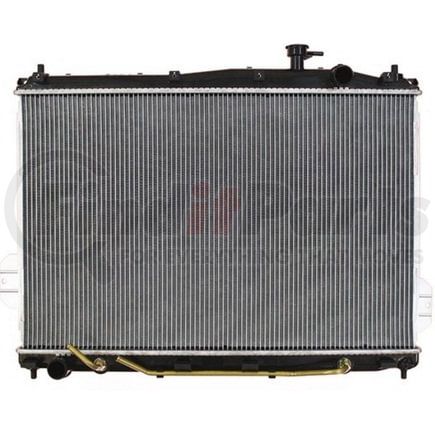

REACH COOLING 41-2959 Radiator

41-2959 by REACH COOLING - Radiator
REACH COOLING
Tap to view 4 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2959 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Hyundai:2007-2012 Veracruz

Features & Benefits

  • Folded fin edges increase stability and heat disbursement properties.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Our utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

REACH COOLING 41-2959 Specifications

Product Attributes

Core Thickness 0.71 IN
Inlet Header Length 738.2 MM
Inlet Header Width 1.937 IN
Transmission Oil Cooler Type Concentric
Fitting Connection Type Pipe connect
Core Height 460 MM
Core Width 718 MM
Transmission Oil Cooler Included Yes
Inlet Diameter 35 MM
Radiator Cap Included No
Core Material Aluminum
Outlet Diameter 35 MM
Down Flow Or Cross Flow Type Down Flow
Trans Cooler Adapter Fittings Included (True/False) False
Outlet Header Width 1.937 IN
Core Row Quantity 1
Engine Oil Cooler Included No
Outlet Location Bottom Left
Tank Material Plastic
Inlet Location Top Right
Outlet Header Length 730.3 MM
Transmission Oil Cooler Distance between Fittings 17.32 IN
Inlet Header Length 738.174 mm
Transmission Oil Cooler Distance between Fittings 444.5 MM
Outlet Diameter 34.925 MM
Core Height 18.11 IN
Inlet Diameter 1.38 IN
Core Width 28.27 IN
Transmission Oil Cooler Distance between Fittings 440 MM
Core Width 720.725 MM
Core Thickness 18 MM
Outlet Header Length 28.75 IN
Inlet Header Width 49.2 MM
Core Thickness 15.875 MM
Inlet Header Width 49.199 mm
Outlet Header Width 49.199 mm
Outlet Diameter 1.38 IN
Core Height 460.375 MM
Outlet Header Length 730.25 mm
Inlet Header Length 29.062 IN
Outlet Header Width 49.2 MM
Inlet Diameter 34.925 mm

Additional Information

Country of Origin (Primary) TH
UPC 06949521720902
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2959 Cross References

BrandPart Number
1-800-Radiator103362
APDI8012959
APDI RADS8012959
Advance Auto Parts812959
AutoNation19812-01367
AutoZoneC2959
Autokool2959
CRSCUC2959
CSF2997, 3488
Cancore IndustriesC2959
CryoMAX2959
DENSO2219414, 221-9414
DPI DataPoint Inc2959
Dixin USADX2959
Factory AirRAD2959
Federated2959
GLOBAL PARTS DISTRIBUTORS2959C
Genera - Archived2959G
Hummer253103J100
Hyundai25310-3J100, 253103J100, 253103J500
Keystone Auto IndustriesRAD2959
KoyoA2959
Lynol Cooling SystemsLR2959
Murray Heat Transfer8012959
NAPACU2959, NR2959B
Nissens67527
Northern RadiatorCR2959
OSC2959
PACIFIC BEST INC.PR2959A
PBIPR2959A
PartslinkHY3010160
Performance Radiator2473
Platinum ProRAD2959
RadCool2959
Spectra PremiumCU2959
Sunbelt Radiators IncSBR2959
TYC2959, 2959G, 2959-G
Tongshi70115
US Motor WorksUSR2959
Vision2959

REACH COOLING 41-2959 Fits Vehicles

  • Hyundai Veracruz (2007-2012)
