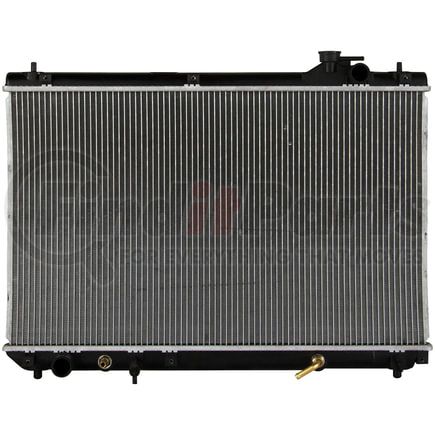

REACH COOLING 41-2542 Radiator

41-2542 by REACH COOLING - Radiator
REACH COOLING
Tap to view 8 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

REACH COOLING 41-2542 Part Description

Manufacturer

REACH COOLING

Product Description

Radiator

Application Summary

Lexus:99-2003 RX300

Features & Benefits

  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

REACH COOLING 41-2542 Specifications

Product Attributes

Core Height 29 IN
Core Height 738 MM
Core Thickness 5/8 IN
Core Thickness 15.9 MM
Core Width 17 3/4 IN
Core Width 450.9 MM
Outlet Location Lower Left
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Distance between Fittings 14 3/4 IN
Transmission Oil Cooler Distance between Fittings 374.7 MM
Radiator Cap Included No
Inlet Diameter 1.375 IN
Inlet Diameter 35 MM
Inlet Location Upper Right
Outlet Diameter 1 3/8 IN
Outlet Diameter 34.9 MM
Engine Oil Cooler Included No
Fitting Connection Type Pipe connect
Core Height 736.6 MM
Core Thickness 15.875 MM
Inlet Diameter 34.925 mm
Trans Cooler Adapter Fittings Included (True/False) True
Down Flow Or Cross Flow Type Down Flow
Outlet Diameter 34.925 MM
Core Width 450.85 MM
Transmission Oil Cooler Distance between Fittings 374.65 MM

Additional Information

Country of Origin (Primary) CN
UPC 06949521712617
VMRS Code 042002001
UNSPSC 25174002

REACH COOLING 41-2542 Cross References

BrandPart Number
1-800-Radiator2542
APDI8012272
APDI RADS8012272
AutoNation19812-01588
CRS AutomotiveCUC2272, CRS2542
CryoMAX2542
DPI (DataPoint Inc)2542
FisherCU2542
Four Seasons2772, 2804
FronteraAM2542
GLOBAL PARTS DISTRIBUTORS2542C
Genera - Archived2542
KoyoA2542
Lexus1640020190, 16400-20190
Modine2872
Northern Factory Sales2542
Northern RadiatorCR2542
OSC2542, 2272
Omega24-81033
PACIFIC BEST INC.PR2542KA, PR2542A
PBIPR2542A
PartslinkLX3010111
Spectra PremiumCU2543, CU2272
Sunbelt Radiators IncSBR2271
TYC2542

REACH COOLING 41-2542 Fits Vehicles

  • Lexus RX300 (1999-2003)
