(888) 312-8812 Login SignupNTK EF0090 NTK Engine Coolant Temperature Sensor
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NTK EF0090 Part Description
Manufacturer
Product Description

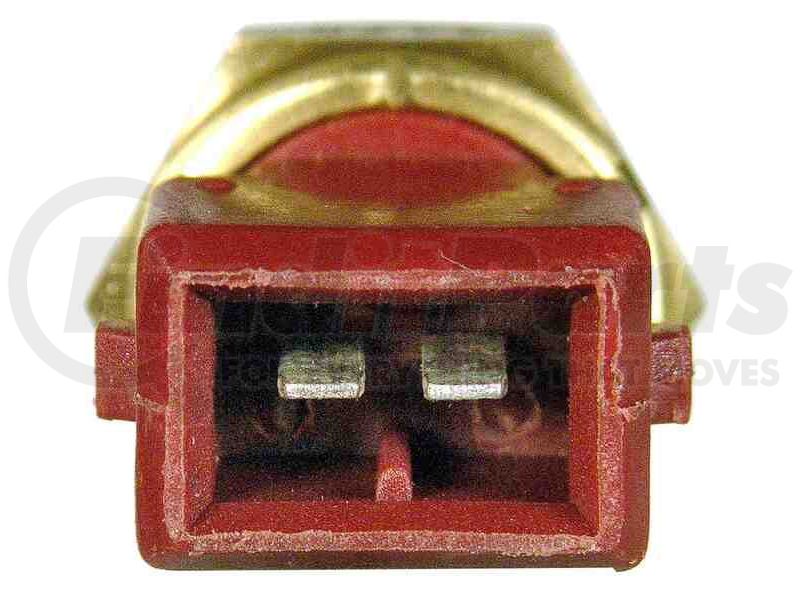

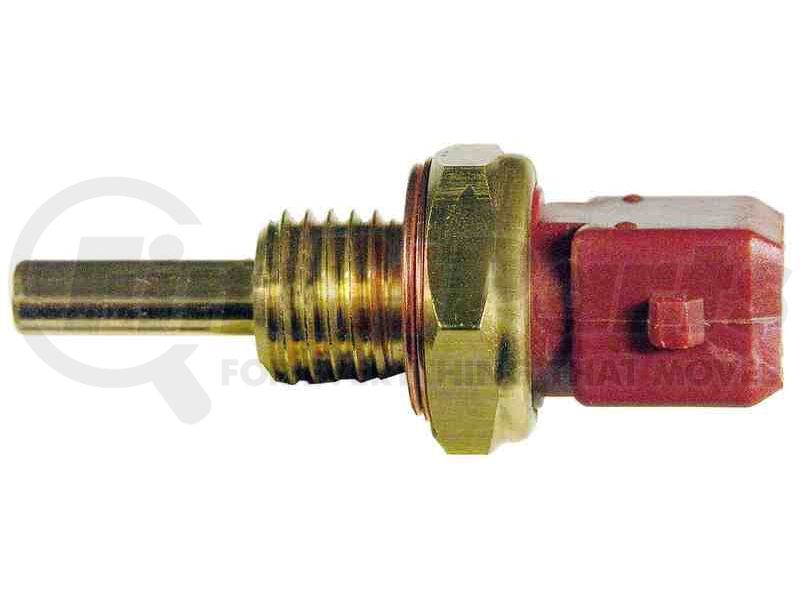

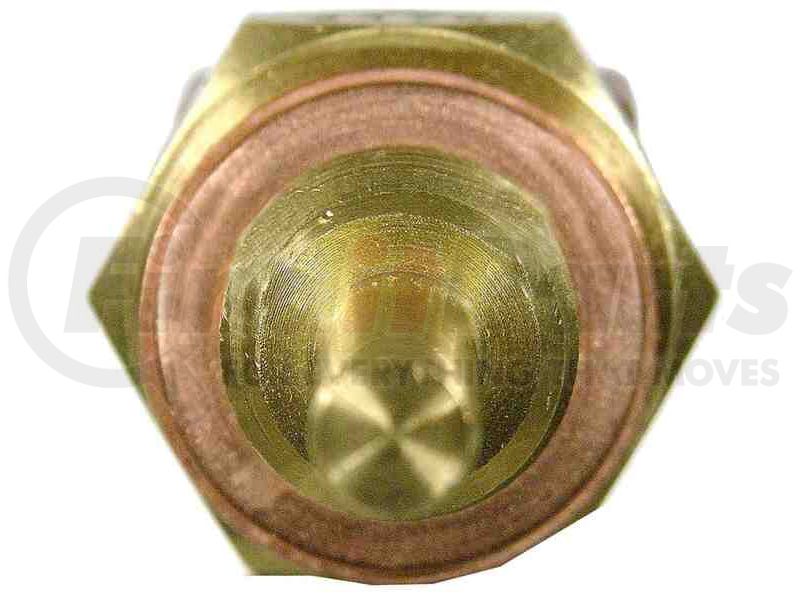

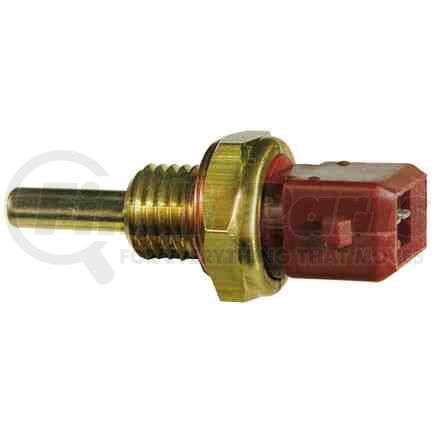

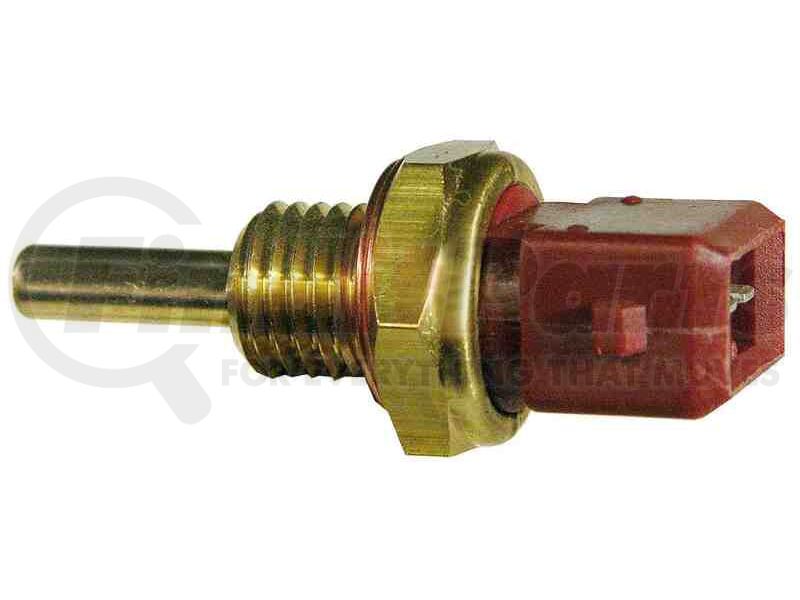

NTK Engine Coolant Temperature Sensor
Features & Benefits
- OE MATCHED: Wires and probe length match OE. Mounting clip(s) included where applicable
- FASTER RESPONSE TIME: Thermal conductive grease inside brass housing increases sensor response time
- THE NTK DIFFERENCE: Thread sealant/o-ring installed where applicable. Thermistor placement within the housing matches OE to ensure proper output. Proper thermal conductive grease to provide accurate temperature transfer to the thermistor
NTK EF0090 Specifications
Product Attributes
| Terminal Type | Blade |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Threaded |
| Thread Sealer Included | No |
| Material | Brass |
| Grade Type | Standard Replacement |
| Head Tool Size | 19.00 MM |
| Color | Red, Gold |
| Mounting Hardware Included | No |
| Wire Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Bracket Included | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (Schedule B) | 8533400080 |
| Harmonized Tariff Code (HTS) | 8533400080 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | BR |
| UPC | 00087295739495 |
NTK EF0090 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 213-394, F1864, 213-61 |
| Alfa Romeo | 11911111000 |
| BWD | WT5000, WT3063, WT5022 |
| Beck/Arnley | 201-1676, 158-0134 |
| Delphi | TS10181, TS10364, TS10199 |
| Echlin | TS5509, TS5520, TS5501, TS5510, TS5559, TS6700, TS6701 |
| Everco | 36413 |
| Ford | E8GY-10884-B, E8GY-12A648-A, F3XY-10884-A, F3XY-10884-B |
| Four Seasons | 36413 |
| General Motors | 12351989, 94845472, 96056758 |
| Geo | 94845472, 96056758 |
| HOLSTEIN | 2CTS0015, 2CTS0228 |
| Mazda | 8574-18-840 |
| Motorcraft | SWE2089A, SWE2361, SWE2360 |
| Nissan | 22630-51E00, 22630-51E02, 22630-51E10, 22630-V5010 |
| Standard Motor Products | TX18 |
| Suzuki | 13650-84101 |
| Toyota | 89422-12010, 89422-30020, 89422-87701 |
| WALKER PRODUCTS | 211-1122 |
| Walker Products | 211-1019 |
NTK EF0090 Fits Vehicles
- Nissan Tsubame (1993-1994)
- Nissan Tsuru (1992-1994)
- GMC Tracker (1989-1990)
- Chevrolet Tracker (1989-1991)
- Mazda B2600 (1989-1990)
- Mazda MPV (1989-1991)
- Mazda B2200 (1987-1989)
- Mazda B2000 (1986-1987)
- Mazda Protege (1990-1994)
- Mazda 626 (1984-1992)
- Mazda 323 (1986-1995)
- Nissan Multi (1986-1988)
- Mazda RX-7 (1986-1991)
- Mazda 929 (1988-1991)
- Mazda MX-6 (1988-1992)
- Mazda MX-3 (1992-1993)
- Mazda Miata (1990-1993)
- Nissan NX (1991-1993)
- Nissan Axxess (1990-1995)
- Nissan Van (1987-1988)
- Nissan 720 (1984, 1986)
- Toyota Van (1984-1988)
- Toyota Supra (1986-1988)
- Toyota Starlet (1983-1984)
- Toyota Pickup (1983-1988)
- Toyota MR2 (1985-1988)
- Toyota Land Cruiser (1983-1988)
- Toyota Cressida (1980-1988)
- Toyota Corolla (1983-1991)
- Toyota Celica (1979-1988)
- Toyota Camry (1983-1988)
- Toyota 4Runner (1984-1988)
- Bentley Turbo R (1988-1991)
- Nissan Stanza (1986-1992)
- Nissan Sentra (1989-1994)
- Nissan Quest (1993-1996)
- INFINITI Q45 (1990-1993)
- Nissan Pulsar NX (1988-1989)
- Nissan Pickup (1991-1993, 1995)
- Nissan Pathfinder (1987-1995)
- Nissan Maxima (1989-1996)
- INFINITI J30 (1993-1995)
- INFINITI G20 (1991-1995)
- Nissan D21 (1986-1994)
- Nissan 300ZX (1989-1996)
- Nissan 280Z (1975-1978)
- Nissan 240SX (1989-1994)
- Nissan 200SX (1985-1988)
- Mercury Villager (1993-1995)
- Mercury Tracer (1988-1989, 1991-1996)
- Mercury Capri (1991-1994)
- Ford Probe (1989-1992)
- Ford Festiva (1988-1993)
- Ford Escort (1991-1995)
- Geo Tracker (1989-1990)
- Chevrolet Sprint (1987-1991)
- Chevrolet Nova (1988)
- Isuzu Impulse (1983-1989)
- Peugeot 505 (1990-1991)
- Peugeot 405 (1989-1991)
- Renault Alliance (1983-1984)
- Renault Encore (1984)
- Alfa Romeo Spider (1982-1992)
- Alfa Romeo Milano (1987-1989)
- Alfa Romeo GTV-6 (1981-1986)
- Alfa Romeo 164 (1991-1992)
- Yugo Cabrio (1990-1992)
- Yugo GV (1990-1992)
- Hyundai Scoupe (1995)
- Suzuki Swift (1989-1991)
- Suzuki Sidekick (1989-1990)
