(888) 312-8812 Login SignupNGK SPARK PLUGS U5052 NGK COP (Pencil Type) Ignition Coil
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS U5052 Part Description
Manufacturer
Product Description

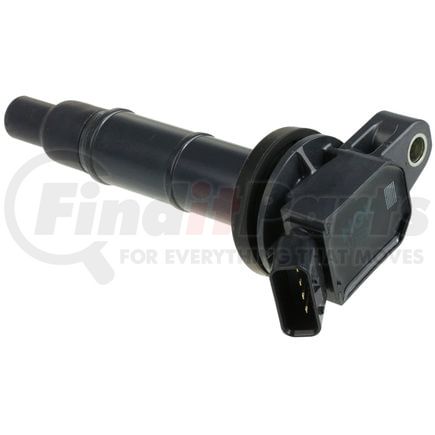

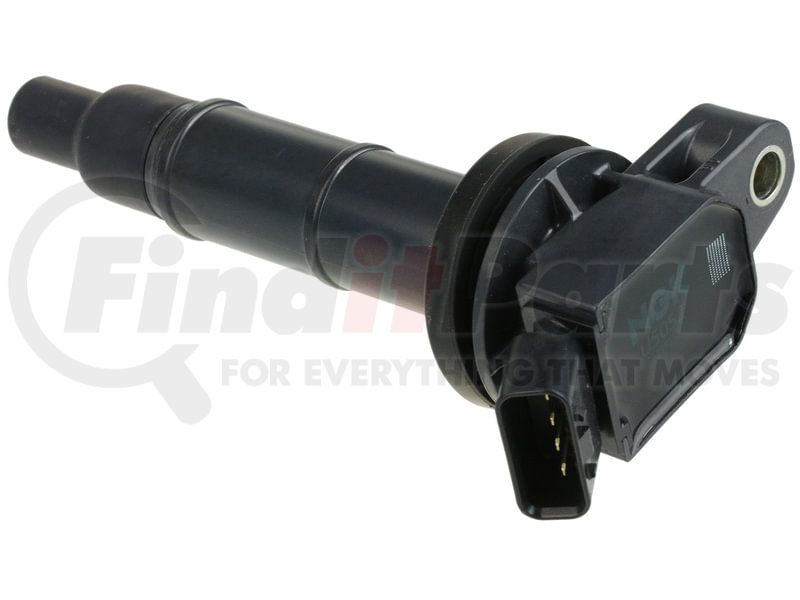

NGK COP (Pencil Type) Ignition Coil
Features & Benefits
- OE QUALITY: Vacuum-sealed premium epoxy resin and thermoplastic coil housings provide superior dielectric strength, voltage insulation and durability
- OPTIMAL PERFORMANCE: Precision coil windings and laminations maximize outputs, custom NGK ASIC chipset optimizes efficiency, prevents component damage
- EASE OF INSTALLATION: NGK Ignition Coils include ignition control module, premium high temperature coil boot, and jumper harnesses where required
- THE NGK DIFFERENCE: Featuring superior materials and design enhancements, NGK's problem solving solutions are backed by a 3 year/36,000 mile warranty
- EXTENSIVE TESTING: NGK ignition coils must pass extreme testing during manufacturing to ensure the highest quality and durability standards are met
- PRODUCT ENGINEERING: Advanced flow and stress modeling systems preemptively identify and avoid common failure points found in OE and competitor coils
NGK SPARK PLUGS U5052 Specifications
Product Attributes
| Connector Quantity | 1 |
| Color | Black |
| Stock Number | 48945 |
| Part Number | U5052 |
| Voltage | 12.0 2H |
| Ignition Type | Distributorless |
| Coil Type | COP (Pencil Type) |
| Oil Filled | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Standard Replacement |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
| Mount Type | Bolt-On |
| Mounting Hole Quantity | 1 |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| UPC | 00087295489451 |
| UNSPSC | 26101769 |
NGK SPARK PLUGS U5052 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | D511C |
| Altrom Group | 1415083Y, 1415083 |
| Autopart International | 2505-309485 |
| BWD | E352, E994, E363 |
| Beck/Arnley | 178-8314 |
| Bosch | 318, 00318 |
| DENSO | 673-1307 |
| DENSO Auto Parts | 673-1307 |
| Delphi | GN10313 |
| Echlin | IC574, IC463 |
| General Motors | 19185426, 19205387 |
| N/A | 9008019023, 90919-02266, U5052, IGC0141, C1330, C1330VC, 23-0212, 90919-02244, 90080-19023, 90919-02243, 9091902266, 9091902243, 9091902244 |
| NGK | 48945 |
| PRENCO | 36-8076 |
| SPECTRA PREMIUM | C-670 |
| STANDARD IGNITION | UF333 |
| Standard Import | UF494 |
| Standard Motor Products | UF-494, UF-333, UF333 |
| T Series | UF333T |
| Toyota | 90919-02243, 90919-02266, 90080-19023, 90919-02244 |
NGK SPARK PLUGS U5052 Fits Vehicles
- Scion xB (2011-2015)
- Lexus HS250h (2010-2012)
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2013)
- Toyota Corolla (2009-2012)
- Scion tC (2005-2010)
- Toyota Solara (2002-2006)
- Toyota Highlander (2001-2007)
- Toyota RAV4 (2001-2008)
- Toyota Camry (2002-2011)
